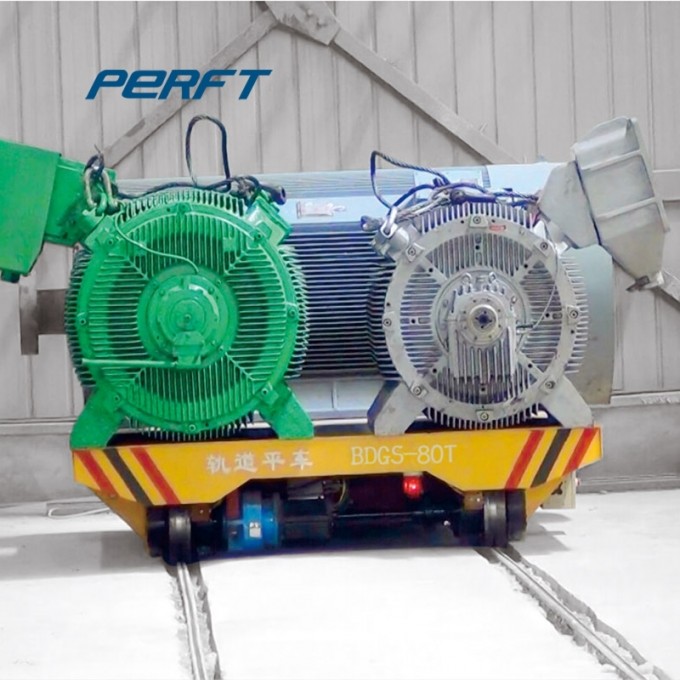

Low Voltage Heavy Duty Electricity Operated Rail Trolley

Low voltage heavy duty electricity operated rail trolley
IntroductionofElectricity Operated Rail TrolleyFor horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet movablemachine base. With four different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.


ApplicationofElectricity Operated Rail Trolley

The rail poweredElectricity Operated Rail Trolleyis mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).

Working Principle ofElectricity Operated Rail TrolleyThis Electricity Operated Rail Trolley is one kind of self-driven transfer carts, which gets power from the conductive rails/tracks installed on the ground. The power source AC380V is transformed into AC36V safe voltage respectively connected with the two rails. Then the Electricity Operated Rail Trolley's wheels transmit the power into the electric control box to control the whole transport bogie for formally working.


Features ofElectricity Operated Rail Trolley

1. Load up to 300t and high using frequency.
2. It is suitable for the running distance less than 70m.
3. With simple structure and low cost make it popular for workshop transportation.
4.Low noise:It causes low noise level.
5.Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.

Parameter ofElectricity Operated Rail Trolley

Model		BDG-2t	BDG-16t	BDG-30t	BDG-50t	BDG-100t	BDG-150
Rated Load(t)		2	16	30	50	100	150
Table Size (mm)	Length(L)	2000	4000	4500	5500	6500	10000
	Width(W)	1500	2000	2200	2500	2800	3000
	Height(H)	450	500	600	650	850	1200
Wheel base(mm)		1200	2800	3200	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	400	500	600	600
Running Speed(m/min)		0-25	0-20	0-20	0-20	0-20	0-18
Running Distance (m)		70	70	70	50	50	50
Motor Power(kw)		1	2	3.5	5.5	11	15
Transformer Power(KVA)		3	6.8	10	10	30	30
Transformer Quantity		1	1	1	1	1	1
Running Distance(m)		70	70	70	50	50	50
Recommended Rail Model		P15	P24	P43	P43	QU100	QU100

Machining OfElectricity Operated Rail Trolley

CNC Cutting
Transport the steel plate from raw material warehouse to CNC cutting workshop for cutting. After the cutting, the workers will do some simple processing such as chip moving and setting out.
Preliminary Assembling
Put the cut steel plate together according to the design drawing
Welding
Weld the steel plate with automatic welding machine after the pliminary assembling
Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. The primer is to two layers
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will test without load. And after the no load test, the cart will be tested with load. After the inspection, the cart will be transported to storage area.
