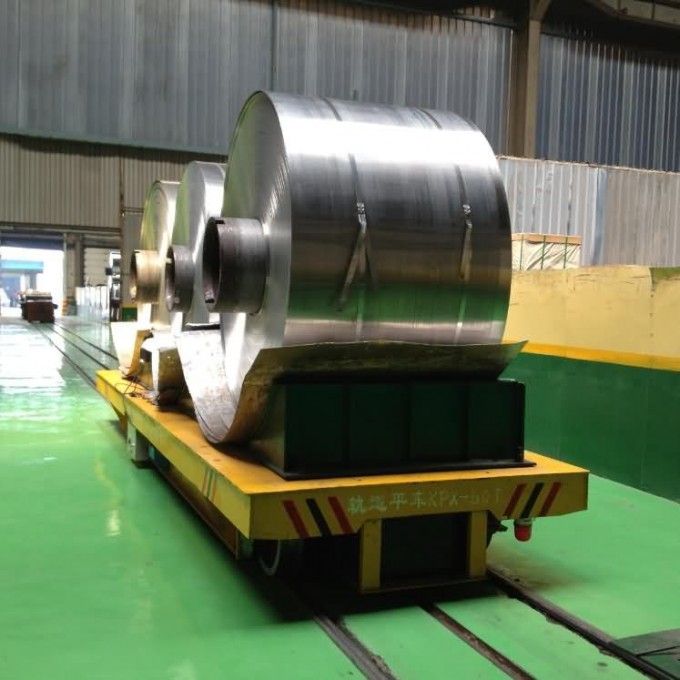

Platform Material Handling Trolley for Workshops Transfer
Working principle
Flat carts are battery powered. The batteries are installed in the carts. The batteries supply electricity to the DC motor through the electrical co
ntrol system. Then the reducer drives the wheels of the flat carts start, stop, go forward and backward, and the speed can be adjusted at the same time. The professio
nal charger can give electricity to the battery when the battery is no power.
Components
Transfer cart f
rame, motor, gear reducer, wheel, electrical appliance box, battery, charger, Shaft and couplings, handle box, alarm light, buffer device, and some other accessories and so on.
Application
This kind of transfer trolley is mainly used on straight rails, but it also can be specially used both on the 'S' and arc-shaped railways to carry many different kinds of stuff. It also can be used in the ferry co
ndition and flammable, explosive enviro
nment and the hydraulic lifting device can be installed on the flat carts. This kind of transfer cart is suitable to be used in the long running distance transportation and low using frequency.
Advantages
The DC motor in the KPX series' flat carts has the advantages of stable start, big starting power, small impact to the gear reducer, low voltage, long lifetime and so on. Compared with the KPJ and KPD flat carts, the KPX series are more safe and flexible. And the running distance is not limited. It has no strict requirement for the co
nstruction of the railway.
Technical parameter:
| Item | Name |
| Load capacity | 15t |
| Table size | 4000*2000mm |
| Table height | 600mm |
| Rail gauge | 1435mm |
| Speed | 20m/min |
| Motor power | 2kw |
| Wheel dia | 300 |
| Rail type | P24 |
