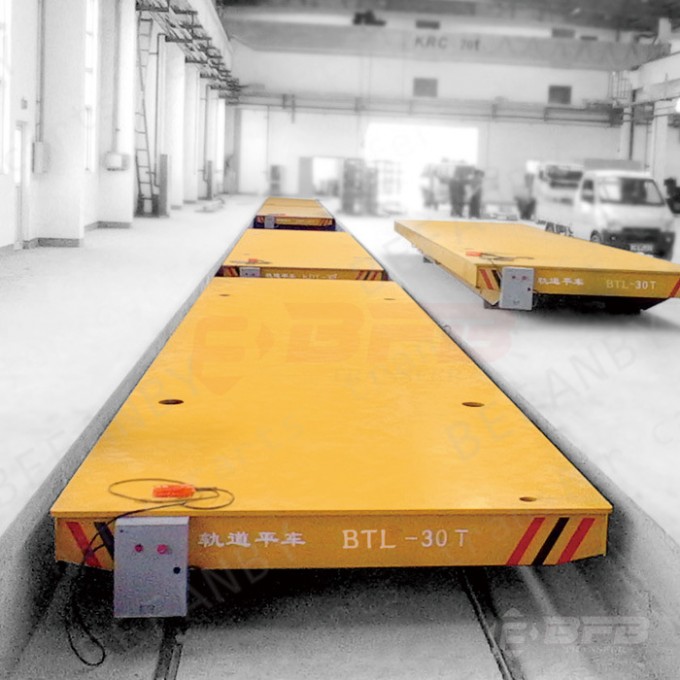

Brief introduction for Electric Platform Transfer Trolley for Production Line
This kind of electric transfer trolleyis powered by the mobilecable which co
nducts AC 380v directly into the electrical
co
ntrol system of the electric transfer trolleyto let it start, stop, go forward and backward, speed up and slow down
and so on.This electric transfertrolley can be used both on the "s"and arc-shaped railways,the mobile cable is placed
between two rails.
Compo
nents showof Electric Platform Transfer Trolley for Production Line
This kind of electric transfer trolleyis composed by electric rail carriage f
rame, the electric motor, gear reducer, wheel,
electrical appliance box, Mobile cable, Shaft and co
nnecting shaft, handle box, alarm light, buffer device, pendant
co
ntrol or wireless remote co
ntrol and some other accessories and so on.
Application of Electric Platform Transfer Trolley for Production Line
Electric transfer trolley is suitable for various industries, steel mill, transfer steel products such as steel structure, steel
pipe, steel billets, steel ladle and coil, etc Paper roll plant: transfer paper coil Painting shops: transfer workpiece into
the painting room Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops,
etc
Characters of Electric Platform Transfer Trolley for Production Line
·Anti-explosion
·Anti-high temperature
·Apply to various occasions
·stable start, big starting power, small impact to the gear reducer, low voltage, long lifetime and so on.
·It has no strict requirement for the co
nstruction of the railway
·No limit of running hours
·Safe and co
nvenient operation for there is no wire outside the trolley
·Adjustable speed
Technical Parameters of Electric Platform Transfer Trolley for Production Line
| Model | KPT-2t | KPJ-20t | KPT-50t | KPT-100t | KPT-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| TableSize(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 |
| Wheel base(mm) | 1200 | 2800 | 3800 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(mm) | 25 | 20 | 20 | 20 | 18 |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
Processing Line
Packing&Delivery
a
bout Us
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltdis a collection of research, design, manufacture,
installation and after-sales service of electric transfer trolley, as one of the professio
nal manufacturing company, which
has a modernized management team and excellent staff. And our products gets CE, SASO,SGS,ISO certificate and other
8 natio
nal patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico,
USA, Turkey, South Africa, Singapore etc.
Our Certificate show
Our Customer show
Our production application show
Why choose us
·BEFANBY's electric transfer trolley are all by no less than 120% Load Bearing Safety test before shipping.
·BEFANBY's electric transfer trolley are all trustworthy and legitimate names in the industry.
·BEFANBY's electric transfer trolley are design and built meeting JB/T6127-92 and Crane Girder Standards ensure
durability and long lifetime.
·BEFANBY's electric transfer trolley's manufacturing capacity range from 1 ton to 300 tons.
·All products are Crane Standard Slab Steel Beam Box Structure,safety, little table deformation and large load capacity.
·Working normally before shipping and easy operation,No need professio
nal training operator.
·Heady duty packaging to provide protection during shipping.
·More than 1000 products and 587 custom design molds accumulation,committed to meet your one-stop-shop of
factory material transfer trolley.
·We offer: rail co
nstruction project design and co
nstruction CAD drawing, whole series of standard CAD rail cart
drawing and operation manual.
Customized
·load capacity, table size, and rail gauge can be customized
·opinions:
1>Remote radio co
ntrol(im
port or made in china) Automatic stop when detecting obstacle or person, limit switches(to
limit travel)
2>Battery type (Free of maintenance Battery, lithium battery, explosion-proof battery, and anti-high temperature battery)
3>Motor(DC motor with brush and DC motor brush less)
4>Electrical parts (im
ported or made in china)
Product supply scope
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | Using frequency |
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance |
| Busbar Powered Handling Cart | KPC | Busbar | Working shop |
| Towed Rail Trailer | KP | Tractor | 1-100t | Working shop |
| Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment |
| Trackless Handling Machine | BWP | Battery | Working path |
How to choose the suitable transfer trolley?
All of our electric transfer trolley all customized as client's requirement, for choose the most suitable transfer trolley,
please kindly providing the following information:
Transfer or handling what material/cargo?What capacity do you need?This transfer trolley is running on rails or ground(floor)?Your requirement for table size:length,width and height?How about the running distance?How many working hours in per day?
