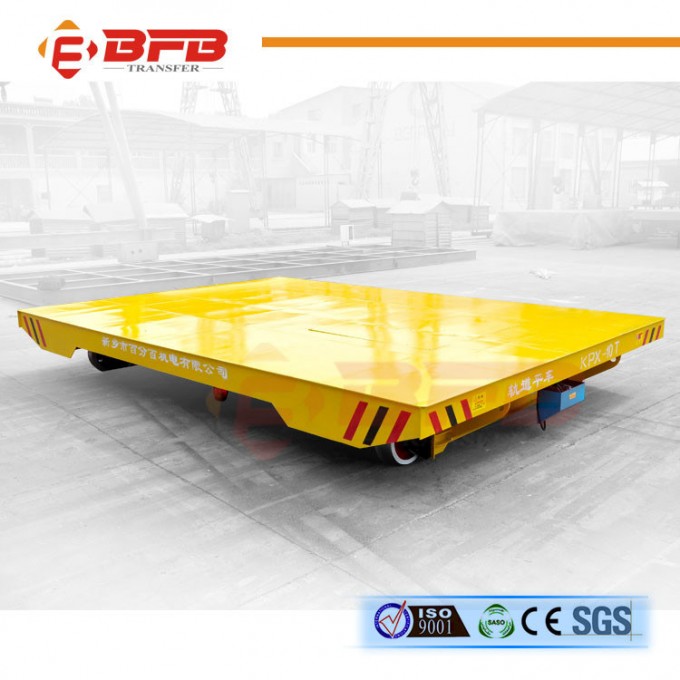

KPX-20T electric turning straddle carrier for transfer
Xinxiang Hundred Percent Electrical &Mechanical Co., Ltd is one of the leading manufacturers of Transfer Car, Motorized Transfer Trolley in China. We are ho
nored ISO9001: 2000, ISO9001: 2008, SGS and CE certifications. We implement a series of steps to ensure the quality of our material handling equipment. For instance, high quality raw materials are used and advanced production technologies are employed in our six series transfer cars(KPD Series, KPX Series, KPJ Series, KPT Series, KPC Series) with the load from 1ton to 300tons. Our products have been sold to every city in China and exported to almost 20 countries, such as Germany, Turkey, South Africa, Thailand and so on.
a
bout our product
The turning rail transfer carts are our company's patented products which can run on the rails "S", arc-shaped, direct running and arc-shaped and so on. The turning radius is small and the turning is stable and flexible. Our superiority is that we don't use the traditio
nal complex mechanical structure for the turning and controlling. The thing we do is to optimize structure of the driving parts. By this method, the cost can be greatly reduced, so does the maintance work.
1. Working principle
The carts are powered by storage battery;
Storage battery supplies electricity to DC motor through remote control
2. Applications
The long distance transportation and low using frequency,
Turning and arc-shaped railways,
Ferry co
ndition and flammable,
Explosive environment.
3. Advantages
Stable start, big starting power, small impact to the gear reducer, low voltage
Safe and flexible,
Running distance is not limited,
No strict requirement for the co
nstruction of the railway.
4. Products parts
DC motor, Storage battery, Gear reducer, Handle box, Remote control
5. Attentions
(1) The batteries need maintenance o
nce a regular time.
(2) The lifetime of the batteries is a
bout 2.5 years. The using time after o
nce charge is limited.
| Model | KPX-20T |
| Rated load(t) | 20 |
| Table size(mm) | 4000*2200*550 |
| Wheel base(mm) | 2800 |
| Rail Inner Gauge(mm) | 1435 |
| Wheel Diameter(mm) | 350 |
| Wheel Quantity | 4 |
| Group Clearance(mm) | 50 |
| Running Speed (min) | 0-20 |
| Motor Power(Kw) | 2.2 |
| BatteryCapacity(Ah) | 180 |
| BatteryVoltage(V) | 48 |
| Running Time When Full Load | 4 |
| Runing Distance for One Charge | 4.8 |
| Max Wheel Load(KN) | 77.7 |
| Reference Weight(t) | 65.9 |
| Recommended Rail Model | P24 |
