Battery Scissors Aerial Work Platform Material Automated Transfer Trolley

Battery Scissors Aerial Work Platform Material Automated Transfer Trolley

Introduction of Automated Transfer Trolley
BWP series automated transfer trolley is a kind of trackless material handling equipment, which means it can run on cement floor and no need to install rails. The automated transfer trolleyhas at lest two casters, which could realize 360 degree motorized rotation without causing any damage to the floor. It is powered by storage battery, so it can turn freely without any cable strings. This electric trackless automated transfer trolley is controlled to go forward and backward, turn left and right by pssing the buttons and speed controller. It also can be added with PLC control system for full automation.




Features of Automated Transfer Trolley
----Low noise It causes low noise level.
----Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
----Easy for operation These transfer carts are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing processOperates on standard floors; Do not require complex or permanent installation
----Suitable for All Kinds of Weight Thebattery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

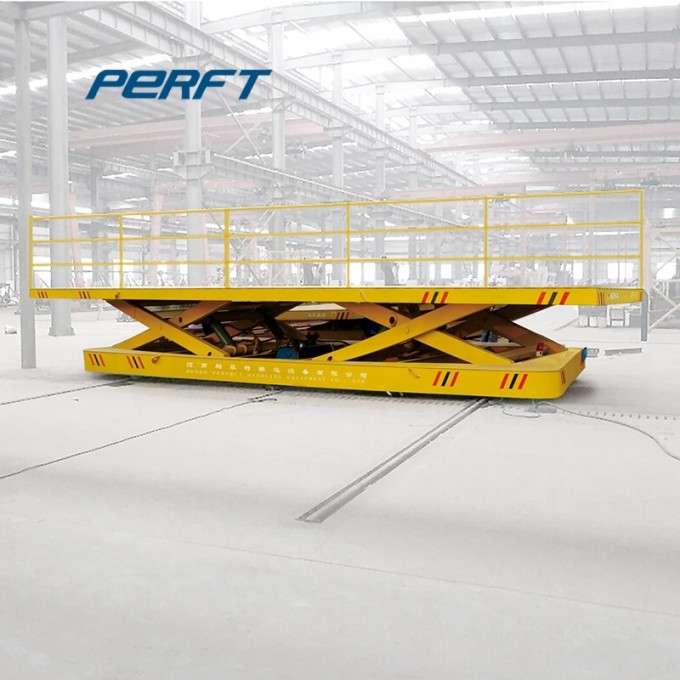

HydraulicElevatorPlatform ofAutomated Transfer Trolley

The hydraulic elevator platform is a mechanical device of linked, folding supports in a criss-cross 'X' pattern, a special kind of aerial work platform ideal for indoor and outdoor construction and maintenance or installation applications with firm, level surfaces. Scissor lift access platform can offer you unmatched performance and versatility when working at height and can significantly boost productivity.
The idea of the perfect combination of the automated transfer trolley and the scissors hydraulic aerial work platform makes the handling jobs and the manufacture work more convenient and easy. It has been widely used in many fiels such as automated warehouse, die making shop, equipment maintenance, parking lot, assembly line etc.


Production Process ofAutomated Transfer Trolley
CNC Cutting
Transport the steel plate from raw material warehouse to CNC cutting workshop for cutting. After the cutting, the workers will do some simple processing such as chip moving and setting out.
Preliminary Assembling
Put the cut steel plate together according to the design drawing
Welding
Weld the steel plate with automatic welding machine after the pliminary assembling
Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. The primer is to two layers
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will test without load. And after the no load test, the cart will be tested with load. After the inspection, the cart will be transported to storage area.



Production Supply Scope

Product Name	Model	Power Supply Mode	Load Capacity	Running distance	Usage
Rail Transfer Cart	BDG	Conductor Rail	We can design 1-300t load transfer cart. The load capacity and table size is customized according to the working condition and the client's requirements.	≤70m	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	BXC	Battery		Unlimited
Cable powered Transfer Trolley	BJT	Cable Drum		≤50m
Electric Transfer Cart	BTL	Trailing Cable		≤20m
Busbar Powered Handling Cart	BHX	Busbar		Unlimited
Towed Rail Trailer	BP	Towed by other machine		Unlimited
Steerable Towed Car	BWT	Manually or towed by forklift or other machine	1-150t on cement or steel floor.	Unlimited
Trackless Handling Machine	BWP	Battery		Unlimited

Packing & Shipping
*For lengthis less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.



Factory and Customer
Henan Perfect Handling Equipment Co., Ltd. is specializing in the design and manufacture of transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables, Automated Transfer Cart, Powered Transfer Trolley and many other specialty items.
