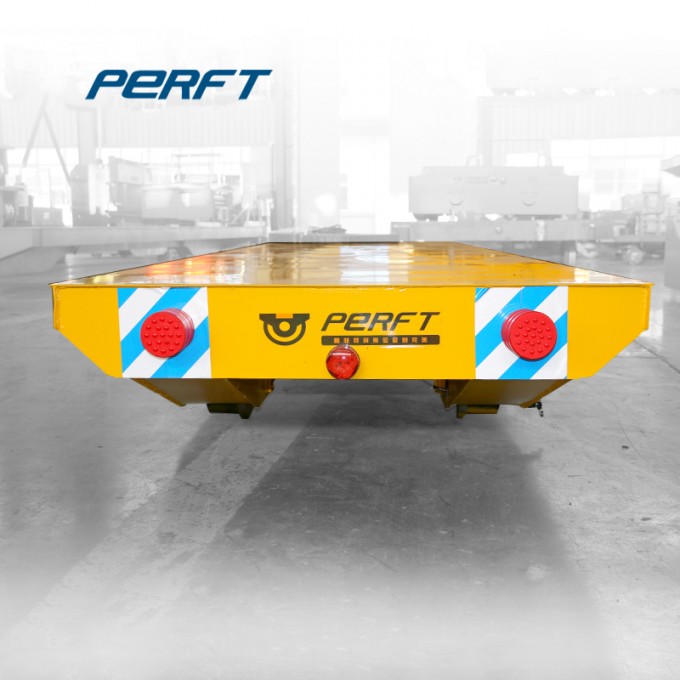

Metallurgical Industry Transfer Car Material Handling Trolley

metallurgical Industry Transfer Car Material Handling Trolley
1.Introduction of Industrial Handling TrolleyOur line of industrial handling trolleys are designed to accommodate the needs of a wide range of industries including steel, copper, aluminum, automotive, stamping, heavy manufacturing and several others. These units are also used to convey heavy materials across crane bays or in areas not serviced by an overhead crane.
Some attachments are available on our handling trolley including "shock pads", "coil spring suspension" and articulating track assemblies. These facilities provide protection for the trolley from impact loading and poor track conditions.
All products are equipped with safety features including safety lights, horns, bumpers, dead man controls and mushroom type emergency stop buttons.


2.Application of Industrial Handling Trolley
Uses of industrial handling trolley:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality handling trolley solutions you need. Material handling trolleys are used:to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.

3.Applicable Sites of Industrial Handling Trolley
PERFECT conceives and manufactures a wide range ofrailway guided transfer carts, battery poweredtrolleys, intelligentself-propelled trolleys, die carts, industrial flat trailers, tiltersand lifting platformsthat operate in manyindustrial fields: metallurgy, manufacture, oil andgas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation,coal industry,paper mills, metalworking, warehouse and many others!

4. Parameter of Industrial Handling Trolley

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	900	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Running Speed(m/min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running Time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for One Charge(km)		6.5	4.8	4	3.8	3.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

5.Operation and Component of Industrial Handling Trolley
There are a variety of drive and control systems for thehandling trolley. Drive systems include gear reducer, axle drives and individual wheel drives. A typical unit is equipped with a hand held pendant control which is used by the operator to control the trolley to move backward, forward along the track. With an average travel speed of 20m/min, an operator can walk along with the car to operate the unit. The pendant can be provided to be mounted on any of the 4 corners of the vehicle to allow the operator to walk along the leading end of the trolley during operation. And our transfer trolleys are also available with semi-automatic and fully automatic control systems to meet the needs of specialized applications.

6. Factory and Transportation
Welcome to Henan Perfect Handling Equipment Co., Ltd. We are a company specializing in the Design and Manufacture of specialty material handling equipmentsto solve every transfer requirement.Every PERFECT product is designed to meet the specific requirements of each application. Our unique approach to the design of each product includes a detailed review of the customer requirements, used to develop the functional specification of the product.



7. Q&A
Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carts are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
