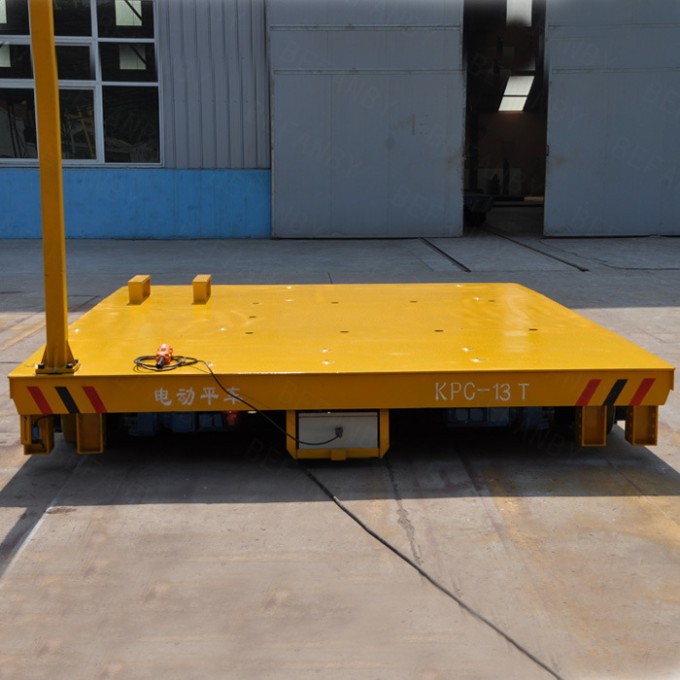

Brief introduction---Busbar Powered Motorized Railway Flat Trolley on Rails
This kind of railway flat trolley by safety sliding wire which is can running on the straight,"s" or arc-shaped railways rails, to warehouse to transfer material or equipment between workshops with the crane accessories. This railway flat trolley is a very popular product in South America market. Our BEFANBY company is the professio
nal manufacturer of railway flat trolleywith more than 15 years experience in designing and producing.
working principle----Busbar Powered Motorized Railway Flat Trolley on Rails
Railway flat trolleyis that the safe sliding wire is set in a channel ditched beside the rail, and also can be set on the ground along the wall.It co
ntacts AC 380V sliding wire directly into the AC electrical co
ntrol system of the railway flat trolleyto let in start,stop, go forward and backward and so on. The railway flat trolleygets power from the slider of the safe sliding line which is moved by the trolley's running.
Technical Parameters forBusbar Powered Motorized Railway Flat Trolley on Rails
| Model | KPC-2t | KPC-20t | KPC-50t | KPC-100t | KPC-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 |
| Wheel base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(mm) | 25 | 20 | 20 | 20 | 18 |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
Application of Foundry Industry Busbar Powered Motorized Railway Flat Trolley
Our railway flat trolleyis suitable for various industries,steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc Paper roll plant: transfer paper coil,Painting shops, transfer workpiece into the painting room, Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc.
Characters of Foundry Industry Motorized Railway Flat Trolley on Rails
·Anti-explosion
·Anti-high temperature
·Apply to various occasions
·It has no strict requirement for the co
nstruction of the railway
·No limit of running and working hours
·Safe and co
nvenient operation for there is no wire outside the car
·Adjustable speed
Compo
nents show
Railway flat trolleyis composed of Car f
rame,wheel,sliding wire,gear reducer, motor,electrical control,etc.
Processing Line
Packing&Delivery
a
bout Us
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltdis a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,railway flat trolley as one of the professio
nal manufacturing company, which has a modernized management team and excellent staff.And our products gets CE, SASO,SGS,ISO certificate and other 8 natio
nal patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
Our Certificate show
Our Customer show
Our production application show
Product supply scope
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | Using frequency |
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance |
| Busbar Powered Handling Cart | KPC | Busbar | Working shop |
| Towed Rail Trailer | KP | Tractor | 1-100t | Working shop |
| Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment |
| Trackless Handling Machine | BWP | Battery | Working path |
Customized
·load capacity, table size, and rail gauge can be customized
·opinions:
1>remote radio co
ntrol(im
port or made in china) Automatic stop when detecting obstacle or person, limit switches(to limit travel)
2>Battery type (Free of maintenance Battery, lithium battery, explosion-proof battery, and anti-high temperature battery)
3>motor(DC motor with brush and DC motor brushless
4> Electrical parts (im
ported or made in china)
How to choose the suitable flat trolley?
All of our railway flat trolleyall customized as client's requirement, for choose the most suitableflat trolley,please kindly providing the following information:Transfer or handling what material/cargo?What capacity do you need?Thisflat trolleyis running on rails or ground(floor)?Your requirement for table size:length,width and height?How a
bout the running distance?How many working hours in per day?
