Rail Guided Transfer Trolley Used in Workshop

Rail Guided Transfer Trolley Used in Workshop


IntroductionofRail Guided Transfer TrolleyOur BDG series rail guided transfer trolley get its power from railway. The 380V alternating-current is transformed into safe current 36V. The current collectors mounted on trolley get the 36V current from the railway and transmit it into electronic box and thus to make the car start, stop, move forward and move backward. Combined with PLC system, full automatic operation is available. It's widely used, life long, safe and flexible.



Production Process ofRail Guided Transfer Trolley
CNC Cutting
The steel plate is transported from warehouseto CNC cutting workshop for cutting.
Preliminary Assembling
Workers putthe cut steel plate together according to the design drawing.
Welding
Weld the steel plate with automatic welding machine after the pliminary assembling.
Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress.
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint.
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish.
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will be testedwithout loadand then with load. After the inspection, the cart will be transported to storage area.



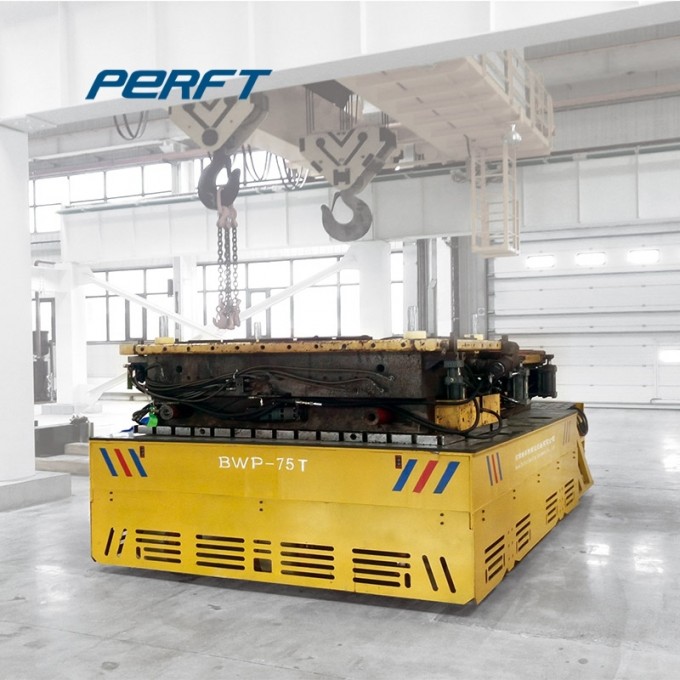

Application sites of Rail Guided Transfer Trolley
We produce a wide range of rail guided transfer trolley, railway guided transfer carts, factory transportequipment,battery poweredtrolleys, intelligentself-propelled trolleys, die carts, industrial flat trailers, tiltersand lifting platformsthat operate in manyindustrial fields: metallurgy, manufacture, oil andgas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation,coal industry,paper mills, metalworking, warehouse and many other lines. We are sure to provide the product you want!


Parameter of Rail Guided Transfer Trolley

Model		BDGZ-2t	BDGZ-16t	BDGZ-30t	BDGZ-50t
Rated Load(t)		2	16	30	50
Table Size (mm)	Length(L)	2000	4000	4500	5500
	Width(W)	1500	2000	2200	2500
	Height(H)	450	500	600	650
Wheel base(mm)		1200	2800	3200	4200
Rail Inner Gauge(mm)		1200	1435	1435	1435
Wheel Diameter(mm)		270	350	400	500
Wheel Quantity		4	4	4	4
Ground Clearance(mm)		50	50	50	50
Running Speed(min)		0-25	0-20	0-20	0-20
Motor Power(kw)		1	2	3.5	5
Transformer Power(KVA)		3	6.8	10	20
Transformer Quantity		1	1	1	1
Running Distance(m)		70	70	70	50
Max Wheel Load(KN)		14.4	64.5	174	343.8
Reference Weight(t)		2.8	5.5	8	14.6
Recommended Rail Model		P15	P24	P43	QU100

Factory and Customer Visit
We have been specializing in steel frame trailer manufacture for over 15 years. With advanced equipment, excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO.
Currently, our products not only have been sold inChina, but also exported to American, Germany, Thailand, Holland, Turkey South Africa, Nepal, etc.We are becoming more and more popular around the world and get high evaluations from our cooperators.


Q&A
Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carts are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
