Detailed Description
Brief introduction---Rail Handling Trolley with Customized Power Supply
This kind of rail handling trolleyby safety sliding wire which is can running on the straight,"s" or arc-shaped railways rails,
to warehouse to transfer material or equipment between workshops with the crane accessories. This rail handling trolley
is a very popular product in South America market. Our BEFANBY company is the professio
nal manufacturer of rail
handling trolleywith more than 15 years experience in designing and producing.
Working principle----Rail Handling Trolley with Customized Power Supply
Rail handling trolley is that the safe sliding wire is set in a channel ditched beside the rail, and also can be set on the
ground along the wall. It co
ntacts AC 380V sliding wire directly into the AC electrical co
ntrol system of the rail handling
trolleyto let in start,stop, go forward and backward and so on. The rail handling trolleygets power from the slider of
the safe sliding line which is moved by the trolley's running.
Technical Parameters forRail Handling Trolley with Customized Power Supply Model | KPC-2t | KPC-20t | KPC-50t | KPC-100t | KPC-150t |
Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
Heigth(H) | 450 | 550 | 650 | 850 | 1200 |
Wheel base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
Running Speed(mm) | 25 | 20 | 20 | 20 | 18 |
Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 |
Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 |
Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
Application of Rail Handling Trolley with Customized Power Supply
Our rail handling trolleyis suitable for various industries,steel mill, transfer steel products such as steel structure, steel
pipe, steel billets, steel ladle and coil, etc Paper roll plant: transfer paper coil,Painting shops, transfer workpiece into
the painting room, Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc.
Characters of Rail Handling Trolley with Customized Power Supply
·Anti-explosion
·Anti-high temperature
·Apply to various occasions
·It has no strict requirement for the construction of the railway
·No limit of running and working hours
·Safe and convenient operation for there is no wire outside the trolley
·Adjustable speed
Components showof Rail Handling Trolley with Customized Power Supply
Rail handling trolley is composed of Car frame,wheel,sliding wire,gear reducer, motor,electrical control,etc.
Processing Line

Packing&Delivery

about Us
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltdis a collection of research, design, manufacture, installation
and after-sales service of electric handling bogie ,rail handling trolleys as one of the professional manufacturing company,
which has a modernized management team and excellent staff.And our products gets CE, SASO,SGS,ISO certificate and
other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany,
Mexico, USA, Turkey, South Africa, Singapore etc.

Our Certificate show

Our Customer show

Our production application show

Product supply scopeProduct Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
Battery Powered Transfer Car | KPX | Battery | Using frequency |
Motorized Transfer Trolley | KPJ | Cable Drum | Running distance |
Busbar Powered Handling Cart | KPC | Busbar | Working shop |
Towed Rail Trailer | KP | Tractor | 1-100t | Working shop |
Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment |
Trackless Handling Machine | BWP | Battery | Working path |
Customized
·load capacity, table size, and rail gauge can be customized
·opinions:>1>remote radio control(import or made in china) Automatic stop when detecting obstacle or person, limit
switches(to limit travel)
2>Battery type (Free of maintenance Battery, lithium battery, explosion-proof battery, and anti-high temperature battery)
3>motor(DC motor with brush and DC motor brushless)
4> Electrical parts (imported or made in china)
How to choose the suitable handling trolley?
All of our rail handling trolleyall customized as client's requirement, for choose the most suitable handling trolley,
please kindly providing the following information:Transfer or handling what material/cargo?What capacity do you need?This handling trolleyis running on rails or ground(floor)?Your requirement for table size:length,width and height?How about the running distance?How many working hours in per day?

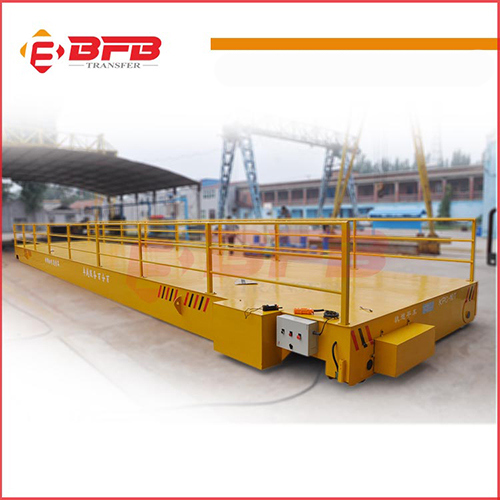

Product Image
