80t Heavy Duty Motorized Flat Trolleys Quality Manufacture

Brief introduction for 80t Heavy Duty Motorized Flat Trolleys Quality Manufacture
This kind of motorized flat trolleysis powered by the towed cable which conducts AC 380v directly into the electrical
control system of the motorized flat trolleys to let it start, stop, go forward and backward, speed up and slow down and
so on.This motorized flat trolleys can be used both on the "s"and arc-shaped railways,the mobile cable is placed
between two rails.



Components show

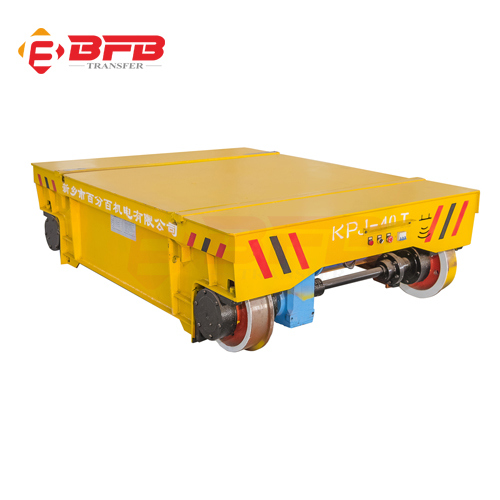

This kind of KPT series motorized flat trolleys usedis composed by trolleys frame, the electric motor, gear reducer,
wheel, electrical appliance box, Mobile cable, Shaft and connecting shaft, handle box, alarm light, buffer device,
pendant control or wireless remote control and some other accessories and so on.


Application of 80t Heavy Duty Motorized Flat Trolleys Quality Manufacture
Motorized flat trolleys is suitable for various industries, steel mill, transfer steel products such as steel structure, steel
pipe, steel billets, steel ladle and coil, etc Paper roll plant: transfer paper coil Painting shops: transfer workpiece into the
painting room Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc



Characters of 80t Heavy Duty Motorized Flat Trolleys Quality Manufacture
Anti-explosion
Anti-high temperature
Apply to various occasions
stable start, big starting power, small impact to the gear reducer, low voltage, long lifetime and so on.
It has no strict requirement for the construction of the railway
No limit of running hours
Safe and convenient operation for there is no wire outside the trolley
Adjustable speed



Technical Parameters of 80t Heavy Duty Motorized Flat Trolleys Quality Manufacture

Model		KPT-2t	KPJ-20t	KPT-50t	KPT-100t	KPT-150t
Rated Load(t)		2	20	50	100	150
TableSize(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	850	1200
Wheel base(mm)		1200	2800	3800	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(mm)		25	20	20	20	18
Motor Power(kw)		0.8	2.5	5.5	11	15
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.3	5.5	7.6	13.9	26
Recommended Rail Model		P15	P24	P43	QU100	QU100

about Us
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltdis a collection of research, design, manufacture, installation
and after-sales service of motorized flat trolleys, as one of the professional manufacturing company, which has a
modernized management team and excellent staff. And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8
national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico,
USA, Turkey, South Africa, Singapore etc.


Why choose us
BEFANBY's motorized flat trolleys are all by no less than 120% Load Bearing Safety test before shipping.
BEFANBY's motorized flat trolleys are all trustworthy and legitimate names in the industry.
BEFANBY's motorized flat trolleys are design and built meeting JB/T6127-92 and Crane Girder Standards ensure
durability and long lifetime.
BEFANBY's motorized flat trolleys's manufacturing capacity range from 1 ton to 300 tons.
All products are Crane Standard Slab Steel Beam Box Structure,safety, little table deformation and large load capacity.
Working normally before shipping and easy operation,No need professional training operator.
Heady duty packaging to provide protection during shipping.
More than 1000 products and 587 custom design molds accumulation,committed to meet your one-stop-shop of
factory material transfer vehicle.
We offer: rail construction project design and construction CAD drawing, whole series of standard CAD rail trolley
drawing and operation manual.

Product supply scope

Product Name	Model No.	Load Capacity	Other Items	Usage
Rail Transfer Cart	KPD	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	KPX		Using frequency
Motorized Transfer Trolley	KPJ		Running distance
Busbar Powered Handling Cart	KPC		Working shop
Towed Rail Trailer	KP	1-100t	Working shop
Steerable Towed Car	BWT	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
Trackless Handling Machine	BWP		Working path

How to choose the suitable transfer trolley?
All of our motorized flat trolleys all customized as client's requirement, for choose the most suitable transfer trolley,
please kindly providing the following inforamtion:
Transfer or handling what matrial/cargo?
What capacity do you need?
This trasnfer trolley is running on rails or ground(floor)?
Your requirment for table size:length,width and height?
How about the running distance?
How many working hours in per day?
