Home> Products> other>Cargo & Storage>Barrow, Trolley & Cart>Trolley>Gear Trolley> High Quality Anti-Explosion Motorized Transfer Trolley
High Quality Anti-Explosion Motorized Transfer Trolley
High Quality Anti-Explosion Motorized Transfer Trolley

High Quality Anti-Explosion Motorized Transfer Trolley

Categories: other , Cargo & Storage , Barrow, Trolley & Cart , Trolley , Gear Trolley
FOB Price:9000.00 USD /Unit
Minimum Order Quantity:1 Unit(s)
Supply Ability:50 Unit(s)
Payment Terms:L/C, T/T, D/P, Western
Company Profile
Contact:MissMaria
E-mail:
Fax:
Capital:US$ 0 Million
Employees: 1-49人 People
Detailed Description
Brief introduction---High Quality Anti-Explosion Motorized Transfer Trolley
This kind of motorized transfer trolleyby safety sliding wire which is can running on the straight,"s" or arc-shaped
railways rails, to warehouse to transfer material or equipment between workshops with the crane accessories. This
motorized transfer trolleyis a very popular product in South America market. Our BEFANBY company is the
professional manufacturer of motorized transfer trolleywith more than 15 years experience in designing and
producing.

Working principle----High Quality Anti-Explosion Motorized Transfer Trolley
Motorized transfer trolley is that the safe sliding wire is set in a channel ditched beside the rail, and also can be set on
the ground along the wall. It contacts AC 380V sliding wire directly into the AC electrical control system of the
motorized transfer trolleyto let in start,stop, go forward and backward and so on.The motorized transfer trolleygets
power from the slider of the safe sliding line which is moved by the cart's running.

Technical Parameters forHigh Quality Anti-Explosion Motorized Transfer Trolley
ModelKPC-2tKPC-20tKPC-50tKPC-100tKPC-150t
Rated Load(t)22050100150
Table Size(mm)Length(L)200040005500650010000
Width(W)15002200250028003000
Heigth(H)4505506508501200
Wheel base(mm)12002800420049007000
Rail Inner Gauge(mm)12001435143520002000
Wheel Diameter(mm)270350500600600
Wheel Quantity44448
Ground Clearance(mm)5050507575
Running Speed(mm)2520202018
Motor Power(kw)0.82.55.51115
Max Wheel Load(KN)14.477.7174343.8265.2
Reference Weight(t)2.35.57.613.926
Recommended Rail ModelP15P24P43QU100QU100
Application of High Quality Anti-Explosion Motorized Transfer Trolley
Our motorized transfer trolleyis suitable for various industries,steel mill, transfer steel products such as steel structure,
steel pipe, steel billets, steel ladle and coil, etc Paper roll plant: transfer paper coil,Painting shops, transfer workpiece
into the painting room, Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay
workshops, etc.
Characters of High Quality Anti-Explosion Motorized Transfer Trolley
·Anti-explosion
·Anti-high temperature
·Apply to various occasions
·It has no strict requirement for the construction of the railway
·No limit of running and working hours
·Safe and convenient operation for there is no wire outside the car
·Adjustable speed

Components showof High Quality Anti-Explosion Motorized Transfer Trolley
Motorized transfer trolley is composed of Car frame,wheel,sliding wire,gear reducer, motor,electrical control,etc.

Processing Line
High Quality Anti-Explosion Motorized Transfer Trolley


Packing&Delivery
High Quality Anti-Explosion Motorized Transfer Trolley
about Us
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltdis a collection of research, design, manufacture,
installation and after-sales service of motorized transfer trolley, as one of the professional manufacturing company,
which has a modernized management team and excellent staff.And our products gets CE, SASO,SGS,ISO certificate and
other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany,
Mexico, USA, Turkey, South Africa, Singapore etc.
High Quality Anti-Explosion Motorized Transfer Trolley
Our Certificate show
High Quality Anti-Explosion Motorized Transfer Trolley


Our Customer show
High Quality Anti-Explosion Motorized Transfer Trolley

Our production application show
High Quality Anti-Explosion Motorized Transfer Trolley
Product supply scope
Product NameModel No.Power Supply ModeLoad CapacityOther ItemsUsage
Rail Transfer CartKPDConductor RailLoad range 1-300ton, can be customized per client demandRunning distanceOrdinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer CarKPXBatteryUsing frequency
Motorized Transfer TrolleyKPJCable DrumRunning distance
Busbar Powered Handling CartKPCBusbarWorking shop
Towed Rail TrailerKPTractor1-100tWorking shop
Steerable Towed CarBWTTractorLoad range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.Working environment
Trackless Handling MachineBWPBatteryWorking path
Customized
·load capacity, table size, and rail gauge can be customized
·opinions:>1>remote radio control(import or made in china) Automatic stop when detecting obstacle or person,
limit switches(to limit travel)
2>Battery type (Free of maintenance Battery, lithium battery, explosion-proof battery, and anti-high temperature battery)
3>motor(DC motor with brush and DC motor brushless
4> Electrical parts (imported or made in china)
How to choose the suitable transfer trolley?
All of our motorized transfer trolleyall customized as client's requirement, for choose the most suitable transfer trolley,
please kindly providing the following information:Transfer or handling what material/cargo?What capacity do you need?This transfer trolley is running on rails or ground(floor)?Your requirement for table size:length,width and height?How about the running distance?How many working hours in per day?
Product Image

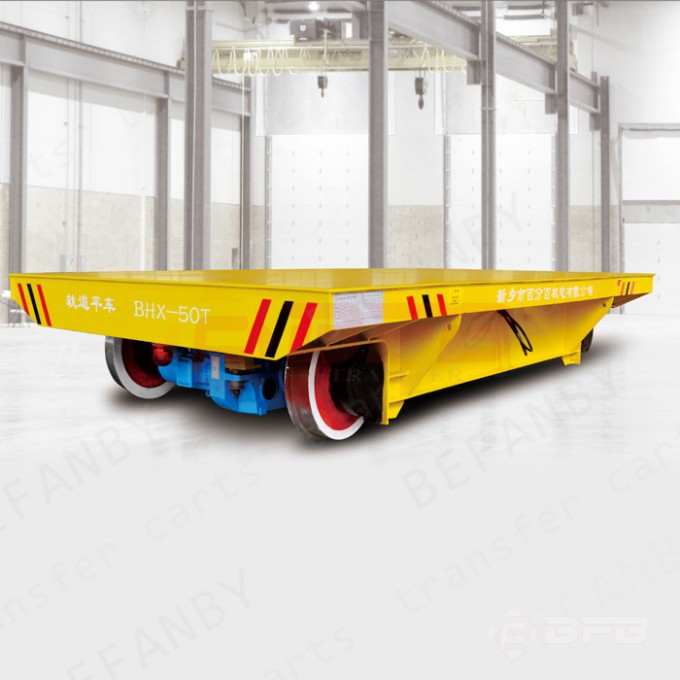

High Quality Anti-Explosion Motorized Transfer Trolley Image1
