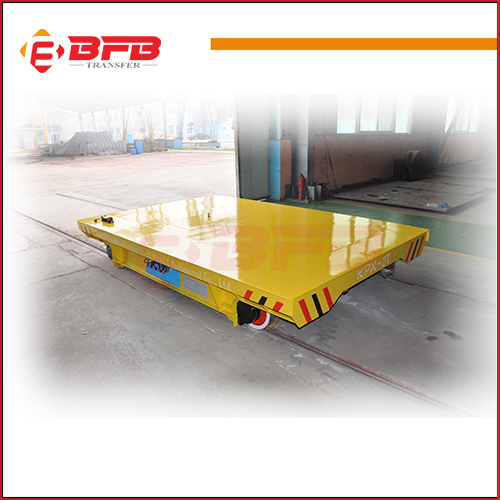

1-300t Battery Operated Motorized Handling Trolley for Aluminium Coil

Brife Introduction1-300t Battery Operated Motorized Handling Trolley for Aluminium Coil is powered by the battery,the DC motor and
gear reducer are controlled by DC control system to drive wheels and make the transport carriage start, stop, go forward
and backward, speed up and slow down and so on.This rail transfer car battery handle can be used both on the "s"and
arc-shaped railways.


Characters ShowAll of our 1-300t Battery Operated Motorized Handling Trolley for Aluminium Coil are equipped with state of theart safety features including safety lights, horns, bumpers, dead man controls and mushroom type emergencystop buttons.It can be used to transfer anything you imagine and working situations, such as steel coil, billets, bloom, ladle & scrap,locomotive, vehicle, workpieces to painting shops or blasting room, etc;We designed and added the special device to it can apply in the high temperature and explosion workingenvironment.

Working principleThis kind of 1-300t Battery Operated Motorized Handling Trolleyis powered by storage battery,which is lead-acid
battery pack. The battery is installed in the cart, and supply DC electricity to the control system. It is consist of battery,
motor, reducer, cart frame, electric appliance, etc.


Application Show1-300t Battery Operated Motorized Handling Trolleynot only can transport all kinds of coils in steel millm, it is also can
be widely applied in metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mould Maker,
Construction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as
Military industries and so on to transfer and handling equipment or material from workshop to workshop or from
bay to warehouse.


Advantages ShowSafe and environment friendlyBig starting powerSmall impact to the gear reducerNo restriction of the running distanceCan running on s-shape rail, arc-shape railsHas no limit on working distanceAnti-explosion,Anti-high temperatureStable start, big starting power, long lifetime.Parameter List

Model		KPX-2T	KPX-10T	KPX-20T	KPX-30T	KPX-50T	KPX-63T	KPX-150T
Rated load (T)		2	10	20	30	50	63	150
Table size	length(L)	2000	3600	4000	4500	5500	5600	10000
	Width(W)	1500	2000	2200	2200	2500	2500	3000
	Height(H)	450	500	550	600	650	700	1200
Wheel base (mm)		1200	2600	2800	3200	4200	4300	7000
Rail Inner Gauge (mm)		1200	1435	1435	1435	1435	1435	2000
Wheel Diameter(mm)		Φ270	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Wheel Quantity		4	4	4	4	4	4	8
Ground Clearance (mm)		50	50	50	50	50	75	75
Running speed (min)		0-25	0-25	0-20	0-20	0-20	0-20	0-18
Motor Power (Kw)		1	1.6	2.2	3.5	5	6.3	15
Battery Capacity(Ah)		180	160	180	250	330	400	600
Battery Voltage(V)		24	48	48	48	48	48	72
Running Time When Full Load		4.32	4.8	4	3.5	3.3	3	2.9
Running Distance for one Charge(Km)		6.5	7.2	4.8	4.2	4	3.6	3.2
Max Wheel Load (KN)		14.4	42.6	77.7	110.4	174	221.4	265.2
Reference Weight (t)		2.8	4.2	5.9	6.8	8	10.8	26.8
Recommended Rail Model		P15	P18	P24	P38	P43	P50	QU100

about UsXinxiang Hundred Percent Electrical and Mechanical Co., Ltdis a collection of research, design, manufacture,
installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing
company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO
certificate and other 8 national patent, and our products have been exported to more than 50 countries and regions.
Our production application show



Our after-serive1>. Our commitment: The load bearing safety factor of the trolley is no less than 120%.

2>.Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material

3>. 16 hours engineering service and 24 hours internet service for our customers

4>. During the warranty period, if our products can't work normally, we can support you repair technology or replace
relevant parts for you within 24 hours.

5>. Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and
Preserve the image of our company.

Our producing scope

Product Name	Model No.	Power Supply Mode	Load Capacity	Other Items	Usage
Rail Transfer Cart	KPD	Conductor Rail	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	KPX	Battery		Using frequency
Motorized Transfer Trolley	KPJ	Cable Drum		Running distance
Busbar Powered Handling Cart	KPC	Busbar		Working shop
Towed Rail Trailer	KP	Tractor	1-100t	Working shop
Steerable Towed Car	BWT	Tractor	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
Trackless Handling Machine	BWP	Battery		Working path

How to choose the suitable transfer trolley?All of our motorised metal transfer trolley all customized as client's requirement, for choose the most suitable transfer
trolley,please kindly providing the following inforamtion:Transfer or handling what matrial/cargo?What capacity do you need?This trasnfer trolley is running on rails or ground(floor)?Your requirment for table size:length,width and height?How about the running distance?How many working hours in per day?
