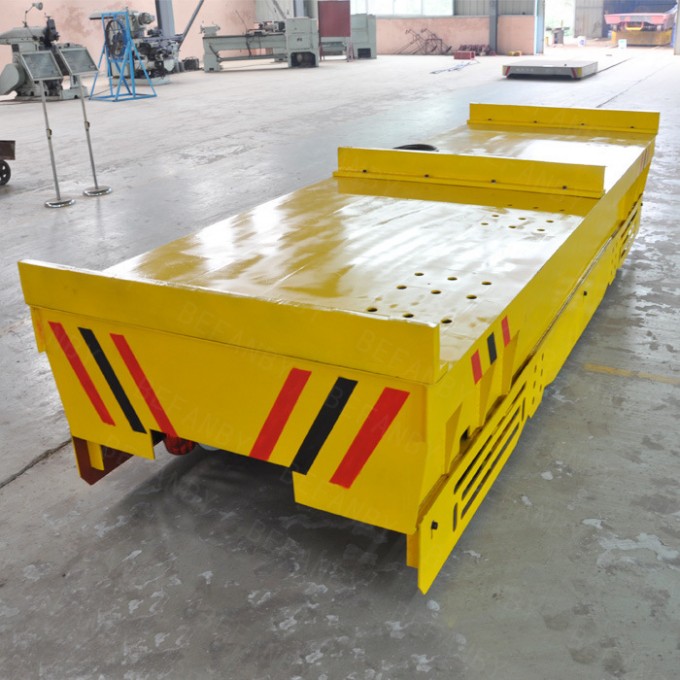

Mobile Cable Operated Electric Rail Trolley for Heavy Material Handling

Brief introduction for Mobile cable operated electric rail trolley for heavy material handling
This kind of electric rail trolley is powered by the mobilecable which conducts AC 380v directly into the electrical
control system of the electric rail trolleyto let it start, stop, go forward and backward, speed up and slow down and so
on.This electric rail trolleycan be used both on the "s"and arc-shaped railways,the mobile cable is placed between two
rails.


Components show
This kind of KPT series electric rail trolleyis composed by electric rail carriage frame, the electric motor, gear reducer,
wheel, electrical appliance box, Mobile cable, Shaft and connecting shaft, handle box, alarm light, buffer device,
pendant control or wireless remote control and some other accessories and so on.

Application of Mobile cable operated electric rail trolley
Mobile cable operated electric rail trolleyis suitable for various industries, steel mill, transfer steel products such as
steel structure, steel pipe, steel billets, steel ladle and coil, etc Paper roll plant: transfer paper coil Painting shops:
transfer workpiece into the painting room Sand blasting room Other industries: shipbuilding, quarries, warehouses and
multi-bay workshops, etc
Characters of Mobile cable operated electric rail trolley
·Anti-explosion
·Anti-high temperature
·Apply to various occasions
·stable start, big starting power, small impact to the gear reducer, low voltage, long lifetime and so on.
·It has no strict requirement for the construction of the railway
·No limit of running hours
·Safe and convenient operation for there is no wire outside the car
·Adjustable speed

Technical Parameters of Mobile cable operated electric rail trolley

Model		KPT-2t	KPJ-20t	KPT-50t	KPT-100t	KPT-150t
Rated Load(t)		2	20	50	100	150
TableSize(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	850	1200
Wheel base(mm)		1200	2800	3800	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(mm)		25	20	20	20	18
Motor Power(kw)		0.8	2.5	5.5	11	15
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.3	5.5	7.6	13.9	26
Recommended Rail Model		P15	P24	P43	QU100	QU100

Processing Line


Packing&Delivery


about Us
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltdis a collection of research, design, manufacture, installation
and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company,
which has a modernized management team and excellent staff.And our products gets CE, SASO,SGS,ISO certificate
and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany,
Mexico, USA, Turkey, South Africa, Singapore etc.

Our Certificate show


Our Customer show


Our production application show


Why choose us
·BEFANBY's electric rail trolleyare all by no less than 120% Load Bearing Safety test before shipping.
·BEFANBY's electric rail trolleyare all trustworthy and legitimate names in the industry.
·BEFANBY's electric rail trolleyare design and built meeting JB/T6127-92 and Crane Girder Standards ensure durability
and long lifetime.
·BEFANBY's electric rail trolley's manufacturing capacity range from 1 ton to 300 tons.
·All products are Crane Standard Slab Steel Beam Box Structure,safety, little table deformation and large load capacity.
·Working normally before shipping and easy operation,No need professional training operator.
·Heady duty packaging to provide protection during shipping.
·More than 1000 products and 587 custom design molds accumulation,committed to meet your one-stop-shop of
factory material transfer carts.
·We offer: rail construction project design and construction CAD drawing, whole series of standard CAD rail cart
drawing and operation manual.
Customized
·load capacity, table size, and rail gauge can be customized
·opinions:
1>remote radio control(import or made in china) Automatic stop when detecting obstacle or person, limit switches(to
limite travel)
2>Battery type (Free of maintenance Battery, lithium battery, explosion-proof battery, and anti-high temperature battery)
3>motor(DC motor with brush and DC motor brushless4> Electrical parts (imported or made in china)
Product supply scope

Product Name	Model No.	Power Supply Mode	Load Capacity	Other Items	Usage
Rail Transfer Cart	KPD	Conductor Rail	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	KPX	Battery		Using frequency
Motorized Transfer Trolley	KPJ	Cable Drum		Running distance
Busbar Powered Handling Cart	KPC	Busbar		Working shop
Towed Rail Trailer	KP	Tractor	1-100t	Working shop
Steerable Towed Car	BWT	Tractor	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
Trackless Handling Machine	BWP	Battery		Working path

How to choose the suitable transfer trolley?
All of our electric rail trolleyall customized as client's requirement, for choose the most suitable transfer trolley,please
kindly providing the following information:
Transfer or handling what material/cargo?What capacity do you need?This transfer trolley is running on rails or ground
(floor)?Your requirement for table size:length,width and height?How about the running distance?How many working
hours in per day?
