BriefIntroduction
Die transfer trolley is powered by the battery,the DC motor and gear reducer are controlled by DC control system to
drive wheels and make the die transfer trolley start, stop, go forward and backward, speed up and slow down and so
on.This die transfer trolleycan be used both on the'S'and arc-shaped railways. Our BEFANBY company is the
professional manufacturer with more than 16 years experience in designing and producing die transfer trolley.


Company Introduction

Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd is a professional manufacturer, supplier and exporter of
motorized transfer trolley in China. The transfer trolley is mounted on the rails and can transfer heavy cargoes or
equipment with the weight 1-300t from one bay to another in factory.


Characters Show
·All of our die transfer trolleyare equipped with state of the art safety features including safety lights, horns, bumpers,
dead man controls and mushroom type emergency stop buttons.
·It can be used to transfer anything you imagine and working situations, such as steel coil, billets, bloom, ladle & scrap,
locomotive, trailer, workpieces to painting shops or blasting room, etc;
·We designed and added the special device to it can apply in the high temperature and explosion working environment.

Working principle
This kind of die transfer trolleyis powered by battery,which is lead-acid battery pack. The battery is installed in the car,
and supply DC electricity to the control system. It is consist of battery, motor, reducer, cart frame, electric appliance, etc.

Application Show
Our die transfer trolleynot only can transport all kinds of coils in steel mill, it is also can be widely applied in metallurgy,
Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mold Maker, Construction Machinery maker,
Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on to
transfer and handling equipment or material from workshop to workshop or from bay to warehouse.


Using scope:

Turning and arc-shaped rails,

Ferry condition and flammable,

Explosive environment.

Advantages:

Safe and flexible,

Running distance is not limited,

No strict requirement for the construction of the railway.


Products parts:

DC motor, Storage battery, hydraulic lifting device, Gear reducer, Handle box, Remote control


Certificates:

1. Meet JB/T6127-92 machinery industrial standards

2. Passed ISO9001 Quality management system requirement

3. Won the honor of 'National famous brand', 'Quality Products of Henan province', 'Quality and Credit Enterprise
Consumer Trusted', 'The Contract Trustworthy Enterprise',


Export markets:

Germany, Singapore, Syria, Australia, Nepal, Thailand, Turkey, India

Attentions:

(1) The batteries need maintenance once a regular time.

(2) The lifetime of the batteries is about 2.5 years. The using time after once charge is limited.

Enterprise core concept:

Using integrity to make friends, using real feelings to broaden business and realizing win-win harmonization. x

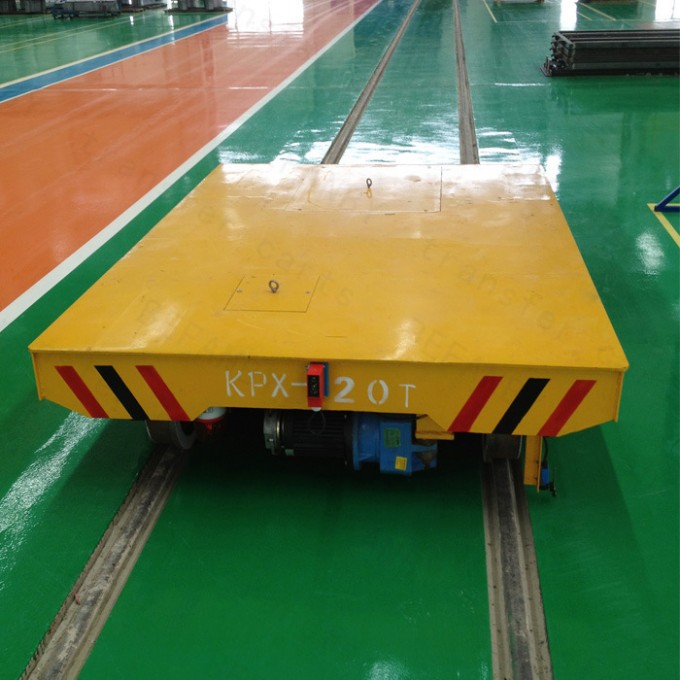

Type KPX-20T Rated load(t) 20 Table size(mm) 3600' 2000' 550 Speed(m/min) 30 Wheel tread(mm) 2800 Wheel diameter(mm) 350 Bottom-clearance(mm) 30 Min. turning radius 50 Rail gauge(mm) 1435 Motor power(kw) 2.2 Storage battery YZ132M2-6 Rail code p24 Wheel quality 4 Structure Box and girder Max. wheel load(kn) 32.4
