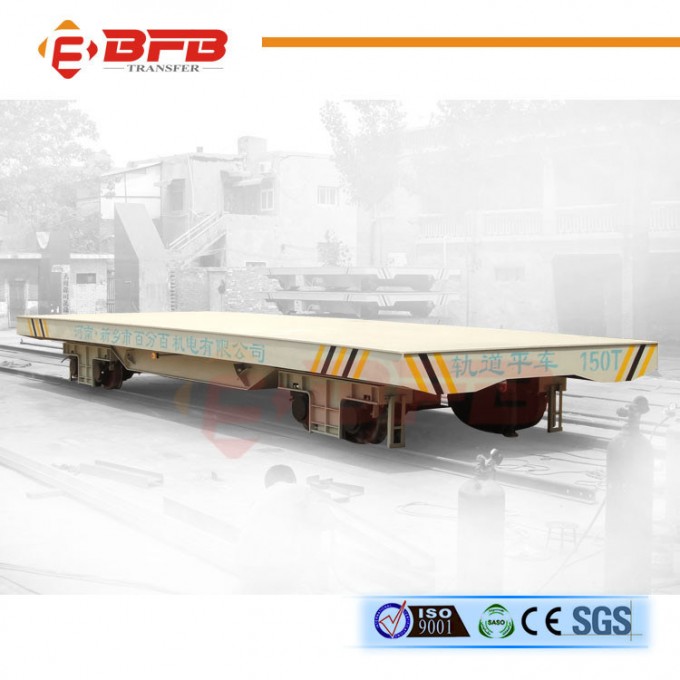

Steel Beam Large Capacity Transfer Trolley for Transportation

Steel Beam Large Capacity Transfer Trolley For Transportation
KPD series' transfer trolley is powered by low voltage electricity from railways, the kind of transfer trolley is one of the most convenient and it often can be widely used in the industry field an so on. Of course,compaired other transfer trolley, its main features as it follows,its rails is isulated with the ground, and its wheels are isulated with the ground, so doesn't others.it is the advantage that the flat cart have, why we disign is that its convenient (only rails needed) and its simple operation. about us, Our company have professional team and utilize more advanced technique to make it , and it has been a long year to manufacture it attentively.Simutaneously,it will be more easy and flexible.


Working Principle----KPD----Large Capacity Transfer Trolley For Transportation
KPDZ transfer trolley, the power source AC380v is transformed into AC36v two-phase and are respectively connected to the two rails.Then the flat carts' wheels conduct the AC36v on rail into the electrical appliance box at the bottom of the carts, And then the AC36v is transformed into DC36v and then control the DC motor through the DC control system to make the flat carts start, stop, go forward and backward railways.


Feature----KPD----Transfer Trolley

Anti-high temperature

Safe devices are installed

Customization can be supported

Apply to various occasions

safety, flexibility, stable start, big starting torque, small capacity to the gear gearing

Low voltage, long lifetime

The running distance is not limited.

when the running distance is more than 70m, it is better to increase the transformers to make up for the voltage which as been lowed.Technique Parameter----KPD----Railway Flat Cart

Model		KPDZ-2t	KPDZ-5t	KPDZ-10t	KPDZ-16t	KPDZ-20t	KPDZ-25t	KPDZ-30t	KPDZ-40t	KPDZ-50t	KPDZ-63t
Rated load		2	5	10	16	20	25	30	40	50	63
Table size	Length(L)	2000	3500	3600	4000	4000	4500	4500	5000	5500	5600
	Width(W)	1500	2000	2000	2000	2200	2200	2200	2500	2500	2500
	Height(H)	450	450	500	500	550	600	600	650	650	750
Wheel base		1200	2500	2600	2800	2800	3200	3200	3800	4200	4300
Rail Inner Gauage		1200	1435	1435	1435	1435	1435	1435	1435	1435	1435
Wheel Diameter		270	300	300	350	350	400	400	500	500	600
Wheel Quantity		4	4	4	4	4	4	4	4	4	4
Ground Clearance		50	50	50	50	50	50	50	50	50	75
Running Speed		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-20	0-20
Motor Power		1	1.2	1.6	2	2.2	3	3.5	4	5	6.3
Transformer Power		3	5	5	6.8	6.8	6.8	10	10	10	20
Transformer Quatity		1	1	1	1	1	1	1	1	1	1
Running Distance		80	80	80	80	80	80	80	60	50	50
Max Wheel Load		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4
Reference Weight		2.8	3.6	4.2	5.5	5.9	6.5	6.8	7.6	8	10.8
Recommended Rail Model		P15	P18	P18	P24	P24	P38	P38	P43	P43	P50

Brief Introduction----BEFANBY


Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
Why choose us

Our Product Scope

Product Name	Model No.	Power Supply Mode	Load Capacity	Other Items	Usage
Rail Transfer Cart	KPD	Conductor Rail	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	KPX	Battery		Using frequency
Motorized Transfer Trolley	KPJ	Cable Drum		Running distance
Busbar Powered Handling Cart	KPC	Busbar		Working shop
Towed Rail Trailer	KP	Tractor	1-100t	Working shop
Steerable Towed Car	BWT	Tractor	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
Trackless Handling Machine	BWP	Battery		Working path

How to choose suitable transfer trolley?
All of our transfer carts all customized as client's requirement, for choose the most suitable transfer trolley,please kindly providing the following information:Transfer or handling what material/cargo?What capacity do you need?This trasnfer trolley is running on rails or ground(floor)?Your requirment for table size:length,width and height?How about the running distance?How many working hours in per day?Our After Service

Our commitment:

The load bearing safety factor of the trolley is no less than 120%.

Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material

16 hours engineering service and 24 hours internet service for our customers

During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
