Motorized Transfer Trolley with Cable Power for Heavy Industry

Brief introduction for Motorized Transfer Trolley with Cable Power for Heavy Industry

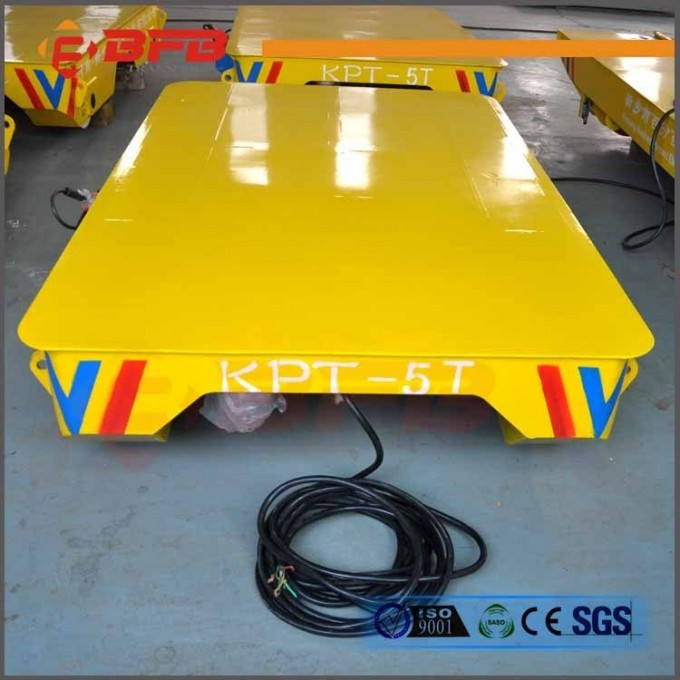

This kind of Motorized Transfer Trolleyis powered by the mobilecable which conducts AC 380v directly into the
electrical control system of the electric rail carriageto let it start, stop, go forward and backward, speed up and slow
down and so on.This electric rail trolley can be used both on the "s"and arc-shaped railways,the mobile cable is
placed between two rails.


Components show
This kind of KPT series Motorized Transfer Trolleyis composed by electric rail carriage frame, the electric motor, gear
reducer, wheel, electrical appliance box, Mobile cable, Shaft and connecting shaft, handle box, alarm light, buffer
device, pendant control or wireless remote control and some other accessories and so on.

Application of Motorized Transfer Trolley with Cable Power for Heavy Industry
Motorized Transfer Trolleyis suitable for various industries, steel mill, transfer steel products such as steel structure,
steel pipe, steel billets, steel ladle and coil, etc Paper roll plant: transfer paper coil Painting shops: transfer workpiece
into the painting room Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay
workshops, etc

Characters of Motorized Transfer Trolley with Cable Power for Heavy Industry
Anti-explosion
Anti-high temperature
Apply to various occasions
Stable start,big starting power,small impact to the gear reducer,low voltage,long lifetime and so on.
It has no strict requirement for the construction of the railway
No limit of running hours
Safe and convenient operation for there is no wire outside the car
Adjustable speed

Technical Parameters of Motorized Transfer Trolley with Cable Power for Heavy Industry

Model		KPT-2t	KPJ-20t	KPT-50t	KPT-100t	KPT-150t
Rated Load(t)		2	20	50	100	150
TableSize(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	850	1200
Wheel base(mm)		1200	2800	3800	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(mm)		25	20	20	20	18
Motor Power(kw)		0.8	2.5	5.5	11	15
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.3	5.5	7.6	13.9	26
Recommended Rail Model		P15	P24	P43	QU100	QU100

Processing Line


Packing&Delivery


about Us
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltdis a collection of research, design, manufacture,
installation and after-sales service of electric handling bogie ,transfer trolley as one of the professional manufacturing
company, which has a modernized management team and excellent staff.And our products gets CE, SASO,SGS,ISO
certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such
as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

Our Certificate show



Our Customer show



Our production application show



Why choose us
·BEFANBY's Motorized Transfer Trolleyare all by no less than 120% Load Bearing Safety test before shipping.
·BEFANBY's Motorized Transfer Trolleyare all trustworthy and legitimate names in the industry.
·BEFANBY's Motorized Transfer Trolleyare design and built meeting JB/T6127-92 and Crane Girder Standards ensure
durability and long lifetime.
·BEFANBY's 5t transport carriage's manufacturing capacity range from 1 ton to 300 tons.
·All products are Crane Standard Slab Steel Beam Box Structure,safety, little table deformation and large load capacity.
·Working normally before shipping and easy operation,No need professional training operator.
·Heady duty packaging to provide protection during shipping.
·More than 1000 products and 587 custom design molds accumulation,committed to meet your one-stop-shop of
factory material transfer carriage.
·We offer: rail construction project design and construction CAD drawing, whole series of standard CAD rail cart
drawing and operation manual.
Customized
·load capacity, table size, and rail gauge can be customized
·opinions:
1>remote radio control(import or made in china) Automatic stop when detecting obstacle or person, limit switches(to
limit travel)
2>Battery type (Free of maintenance Battery, lithium battery, explosion-proof battery, and anti-high temperature
battery)
3>motor(DC motor with brush and DC motor brush less)
4> Electrical parts (imported or made in china)
Product supply scope

Product Name	Model No.	Power Supply Mode	Load Capacity	Other Items	Usage
Rail Transfer Cart	KPD	Conductor Rail	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	KPX	Battery		Using frequency
Motorized Transfer Trolley	KPJ	Cable Drum		Running distance
Busbar Powered Handling Cart	KPC	Busbar		Working shop
Towed Rail Trailer	KP	Tractor	1-100t	Working shop
Steerable Towed Car	BWT	Tractor	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
Trackless Handling Machine	BWP	Battery		Working path

How to choose the suitable transfer carriage?
All of our Motorized Transfer Trolleyall customized as client's requirement, for choose the most suitable transfer
carriage,please kindly providing the following information:

• Transfer orhandling what material/cargo?
• What capacity do you need?
• This transfer trolley is running on rails or ground(floor)?
• Your requirement for table size:length,width and height?
• How about running distance?
• How many working hours in per day?
