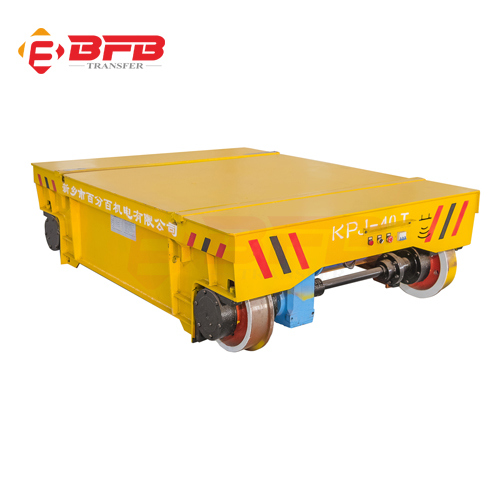

40t Cable Drum Powered Transfer Trolley Applied in Steel Factory

Brief introduction--- Transfer Trolley Applied in Steel Factory
Transfer trolley, also called transfer trolley, transfer cart and climbing transfer cart, is a kind of electric material handling
equipment. This kind of transfer trolley is powered by cable reel (also called cable drum) to drive wheels and make the
trolley start, stop, go forward and backward, speed up and slow down and so on.This transfer trolley can be used both
on the "s"and arc-shaped railways.

Characters of Transfer Trolley Applied in Steel Factory
·Anti-explosion
·Anti-high temperature
·Apply to various occasions
·stable start, big starting power, small impact to the gear reducer, low voltage, long lifetime and so on.
·It has no strict requirement for the construction of the railway
·No limit of running hours
·Safe and convenient operation for there is no wire outside the trolley
·Adjustable speed

Parameters of Transfer Trolley Applied in Steel Factory

Model		KPJ-2t	KPJ-20t	KPJ-50t	KPJ-100t	KPJ-150t
Rated Load(t)		2	20	50	100	150
TableSize(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2000	2500	2800	3000
	Heigth(H)	450	550	650	850	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(mm)		25	20	20	20	18
Motor Power(kw)		0.8	2.5	5.5	11	15
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.3	5.5	7.6	13.9	26
Recommended Rail Model		P15	P24	P43	QU100	QU100

Application of Transfer Trolley Applied in Steel Factory
Transfer trollley can transfer and handling structure, steel pipe, steel billets, steel ladle and coil, etc Paper roll plant: transfer
paper coil Painting shops: transfer workpiece into the painting room Sand blasting room Other industries: shipbuilding,
quarries, warehouses and multi-bay workshops, etc

Processing Line



Packing&Delivery


about Us
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltdis a collection of research, design, manufacture, installation
and after-sales service of transfer trolley, as one of the professional manufacturing company, which has a modernized
management team and excellent staff.And our products gets CE, SASO,SGS,ISO certificate and other 8 national patent,
our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South
Africa, Singapore etc.


Our Certificate show


Our Customer show


Our production application show



Why choose us
·BEFANBY's transfer trolley are all by no less than 120% Load Bearing Safety test before shipping.
·BEFANBY's transfer trolley are all trustworthy and legitimate names in the industry.
·BEFANBY's transfer trolley are design and built meeting JB/T6127-92 and Crane Girder Standards ensure durability and
long lifetime.
·BEFANBY's transfer trolley's manufacturing capacity range from 1 ton to 300 tons.
·All products are Crane Standard Slab Steel Beam Box Structure,safety, little table deformation and large load capacity.
·Working normally before shipping and easy operation,No need professional training operator.
·Heady duty packaging to provide protection during shipping.
·More than 1000 products and 587 custom design molds accumulation,committed to meet your one-stop-shop of factory
material transfer trolley.
·We offer: rail construction project design and construction CAD drawing, whole series of standard CAD rail cart drawing
and operation manual.

Product supply scope

Product Name	Model No.	Power Supply Mode	Load Capacity	Other Items	Usage
Rail Transfer Cart	KPD	Conductor Rail	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	KPX	Battery		Using frequency
Motorized Transfer Trolley	KPJ	Cable Drum		Running distance
Busbar Powered Handling Cart	KPC	Busbar		Working shop
Towed Rail Trailer	KP	Tractor	1-100t	Working shop
Steerable Towed Car	BWT	Tractor	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
Trackless Handling Machine	BWP	Battery		Working path

Customized
·load capacity, table size, and rail gauge can be customized
·opinions:
1>remote radio control(import or made in china) Automatic stop when detecting obstacle or person, limit switches(to
limit travel)
2>Battery type (Free of maintenance Battery, lithium battery, explosion-proof battery, and anti-high temperature battery)
3>motor(DC motor with brush and DC motor brushless
4> Electrical parts (imported or made in china)

How to choose the suitable transfer trolley?
All of our transfer trolley all customized as client's requirement, for choose the most suitable transfer trolley,please
kindly providing the following information:Transfer or handling what material/cargo?What capacity do you need?This transfer trolley is running on rails or ground(floor)?Your requirement for table size:length,width and height?How about the running distance?How many working hours in per day?
