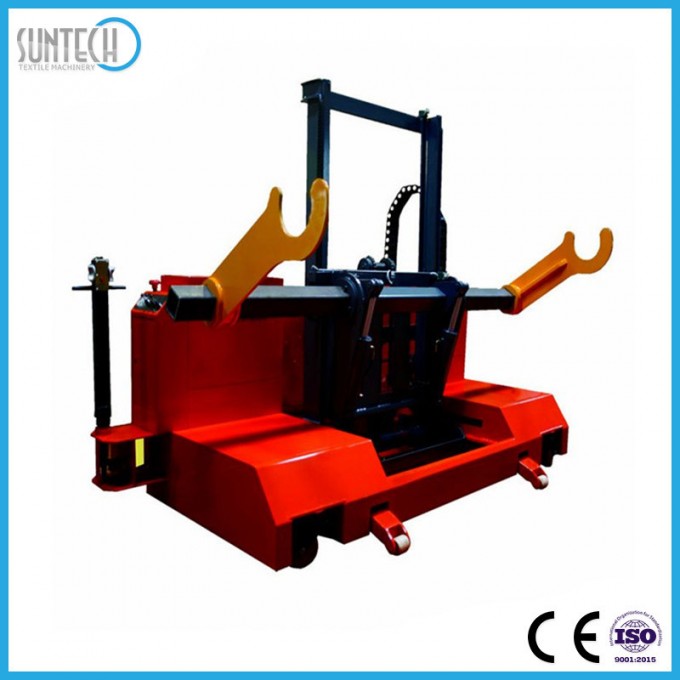

Motorized Warp Beam High Lift Trolley for Upper and Bottom Warp Beam (ST-MBT-05)

ST-MBT-05 suitable for upper&bottom beam transporting, inserting in weaving machines; The loading of warp beam storage racks and batch storage racks; The mounting of sectional beams in knitting machines as well as the handling of non-woven material rolls.

Polyurethane running wheels mounted one after the other in an oscillating manner lead to low ground contact pssure with high stability. Telescopic supporting rollers with safety control ensure a safe operation.

FEATURES:
1). 2 travelling gears ensure optimum traction and curve driving.
2). 2 automatically extending support wheels.
3). Taking up of warp beam by means of adjustable grippers.
4). Smooth control of lifting and lowering as well as swiveling up and down.
5). Smooth forward and backward moving of reach mast.

Carryingcapacity:	1000-2500kg
BeamFlangeDiameter	800-1250mm
BeamBarrelDiameter:	100-400mm
Driven:	TwoACmotors
