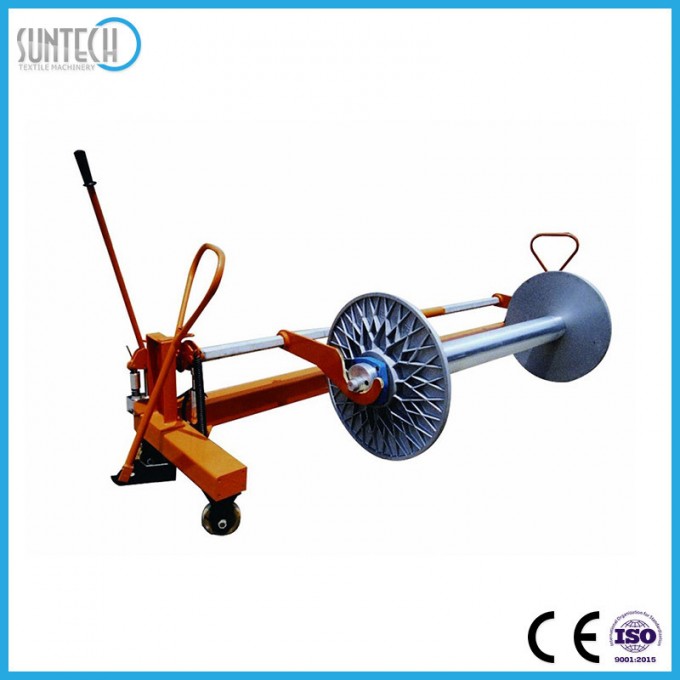

Hydraulic Warp Beam Lift Trolley (ST-HBT-01)

ST-HBT-01 Hydraulic Warp Beam Lift Trolley is suitable for bottom beam transporting, inserting in weaving machines. Warp beam weighing up to 2500kg and beam width as per requirement.
The carriage, which is equipped with oscillating suspended double wheels from a loading capacity of 2500kg, is very gentle to the follor, since the load is really distributed to both wheels. Thus, the wheels are not overburdened while driving on uneven ground.

FEATURES:

1). Separate steering by push/pull bar at both sides.
2). Steering in traveling direction fixable on the left and right side.
3). Two Steered wheels and two guided wheels.
4). Wheels with ball bearings and thread protection caps.
5). Lifting movement by hydraulic foot pedal with automatic quick lift.

CarryingCapacity:	1000-2500kg
BeamFlangeDiameter:	800-1250mm
LiftingHeight:	700mmforbottombeam
Hydrauliccylinders:	Two
HydraulicUnit:	One
