Detailed Description
1.5ton electric hoist features:
1. Certificate: ISO9001: 2008, CE.
2. Approve any electric chain hoist as you want.
3. Design and Manuafacturer electric chain hoist.
Hoist Features:
1 Hoist Shell
Made of die-cast aluminum alloy, light but hard.
2 Hoist Motor
Adopt the Side Magnetic Series YEP Braking Motor.
3 Hoist Gear
Made of alloy steel by carburizing quenching treatment. Thus transmission with low noise and high efficiency is guaranteed.
4 Hoist Inverse phase sequence protecting device
Co
ntrols the circuit not to work in case of wiring error in the power supply.
5 Hoist Side Magnetic Braking Device
Allows instant brake as soon as the electric power is cut off.
6 Hoist Chain bag
Light, attractive and durable.
7 Hoist Chain
FEC G80 chain
8 Hoist Hook
Hot forging with perfect strength that is hard to break.
| Hoist Type | WBH00501SE | WBH01001SE | WBH01501SE | WBH02001SE | WBH02501SE | WBH03001SE |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 |
| Standard Lifting Height(m) | 3 |
| Lifting Speed(m) | 6.8 | 6.6 | 8.8 | 6.6 | 5.4 | 5.4 |
Hoist
Lifting Motor | Power(kw) | 0.75 | 1.5 | 3.0 | 3.0 | 3.0 | 3.0 |
| Rotation Speed(r/min) | 1440 |
| Phases | 3 |
| Voltage(v) | 200-440 |
| Frequency(Hz) | 50 |
Hoist
Operating Motor | Power(kw) | 0.4 | 0.4 | 0.4 | 0.4 | 0.75 | 0.75 |
| Rotation Speed(r/min) | 1440 |
| Operating Speed(m/min) | 11/21 |
| Phases | 3 |
| Voltage(V) | 200-440 |
| Frequency(Hz) | 50 |
| Chain Turns | 1 |
| Chain Specification | Ø6.3 | Ø7.1 | Ø10.0 | Ø10.0 | Ø11.2 | Ø11.2 |
| Test Load(t) | 0.625 | 1.25 | 1.875 | 2.5 | 3.125 | 3.75 |
| Weight(kg) | 47 | 61 | 108 | 115 | 116 | 122 |
| I-Beam(mm) | 58-153 | 58-153 | 82-178 | 82-178 | 100-178 | 100-178 |
| Weight Added with 1m Higher(kg) | 0.81 | 1.1 | 2.3 | 2.3 | 2.8 | 2.8 |

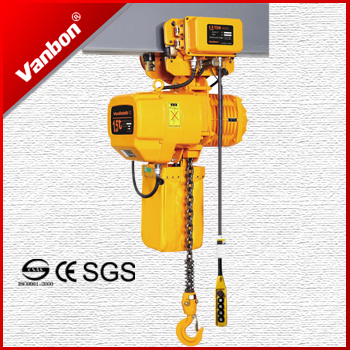

Product Image
