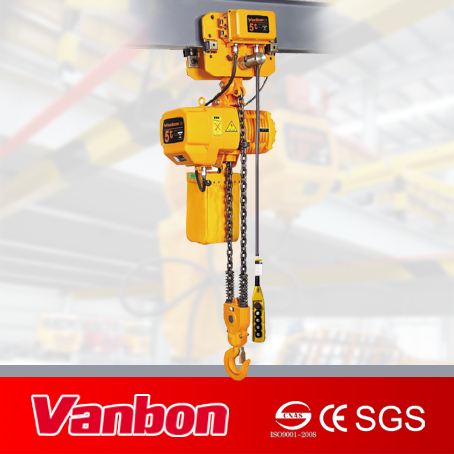

5ton Monorail Trolley Type with Japan Fec G80 Chain and Schnerder Contactor Electric Chain Hoist

Hot type!

5t electric chain hoist double speed with electric trolley

1 Shell:
Light aluminum alloy shell shall be adopted, which is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.

2 Inverse phase sequence protecting device:
It is the special electrical installation which controls the circuit not to work in case of wiring error in the power supply.

3 Limit switch:
The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.

4 24V/36V device:
It is used to prohibit the emergencies from occuring in case of the leakage in the switch.

5 Side magnetic braking device:
This device shall realize the instant brake in case of the power dump.

6 Chain bag:
It shall be light, handsome and durable.

7 Chain:
The chain shall adopt the imported FEC80 ultra heat-treatable aluminum alloy chain.

Technical Parameters

Type		WBH-01002SE	WBH-02002SE	WBH-03002SE	WBH-05002SE
Capacity(t)		1	2	3	5
Standard Lifting Height(m)		3
Lifting Speed(m/min)		3.4	3.3	4.4	2.7
Lifting Motor	Power(kw)	0.75	1.5	3.0	3.0
	Rotation(r/min)	1440
	Phases	3
	Voltage(v)	200-440
	Frequency(Hz)	50
Operating Motor	Power(kw)	0.4	0.4	0.75	0.75
	Rotation Speed(r/min)	1440
	Operating Speed(m/min)	11/21
	Phases	3
	Voltage(v)	200-440
	Frequency(Hz)	50
Chain Turns		2
Chain Specification		Ø6.3	Ø7.1	Ø10.0	Ø11.2
Test Load(t)		1.25	2.5	3.75	6.25
Weight(kg)		59	86	168	184
I-Beam(mm)		58-153	82-178	100-178	100-178
Weight Added with 1m Higher(kg)		1.62	2.2	4.7	5.6
