Detailed Description
push beam trolley features:
Δ Adjustable to any beam width, simply by adjusting the number of collars.
Δ The wheels are made to fit any shape of beam
Δ High grade sealed ball bearings.
Δ With anti-drop plates.
Δ For gear trolley, the standard operating length is 3m, other length is available upon request.

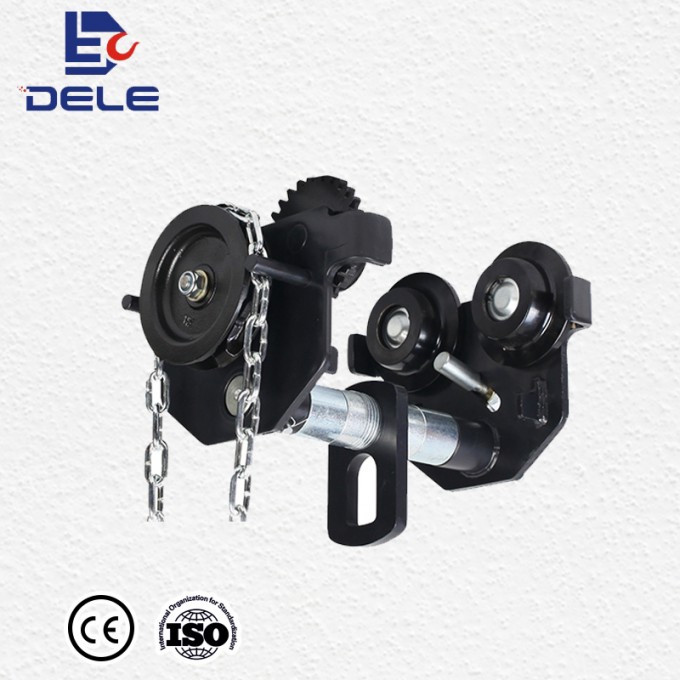

GCL serie geared trolleys are designed for the traveing of hooked or combined lifting machine to move along monorail.Driven by a hand wheel that is operated by a chain,the trolley can find wide uses in many placessuch as factories,mines,docks and storehouses for equipment installation,lifting and transporting goods.
| model | | 05CL | 1CL | 2CL | 3CL | 5CL | 10CL |
| capacity | (kg) | 500kg | 1000kg | 2000kg | 3000kg | 5000kg | 10000kg |
| test road | (kg) | 750kg | 1500kg | 3000kg | 4500kg | 7500kg | 15000kg |
| beam width | (mm) | 50-203 | 64-203 | 88-203 | 100-203 | 114-203 | 125-203 |
| chain size | (mm) | 5*25 | 5*25 | 5*25 | 5*25 | 5*25 | 5*25 |
| n.w | (kg) | 7.1 | 11 | 17.6 | 28 | 42 | 83 |
| g.w | (kg) | 7.7 | 11.9 | 18.4 | 29 | 43.5 | 95 |
| Dimensions | A | 216 | 252 | 292 | 350 | 404 | 458 |
| B | 193 | 235 | 283 | 329 | 385 | 400 |
| C | 146 | 170 | 202 | 235 | 255 | 324 |
| D | 30 | 30 | 271 | 42 | 50 | 87 |
| E | 22 | 45 | 59 | 73 | 88 | 115 |
| F | 330 | 333 | 346 | 355 | 402 | 402 |
| G | 26 | 34 | 28 | 32 | 39 | 50 |
| H | 203 | 203 | 203 | 203 | 203 | 203
|
