Detailed Description
push beam trolley features:
Δ Adjustable to any beam width, simply by adjusting the number of collars.
Δ The wheels are made to fit any shape of beam
Δ High grade sealed ball bearings.
Δ With anti-drop plates.
Δ For gear trolley, the standard operating length is 3m, other length is available upon request.
GCT series push trolley:
The trolley mounted on a mo
norail permits horizo
ntal travel by pulling manually on the load.Combined with a hoist or other lifting machine,it can be widely used in places such as factories,mines,docks and storehouses for equipment installation or transporting goods.
| model | | 05CLT | 1CT | 2CT | 3CT | 5CT | 10CT |
| capacity | (kg) | 500kg | 1000kg | 2000kg | 3000kg | 5000kg | 10000kg |
| test road | (kg) | 750kg | 1500kg | 3000kg | 4500kg | 7500kg | 15000kg |
| beam width | (mm) | 50-203 | 64-203 | 88-203 | 100-203 | 114-203 | 125-203 |
| n.w | (kg) | 6.1 | 9.8 | 16.2 | 26.1 | 40 | 80 |
| g.w | (kg) | 6.62 | 10.4 | 17 | 27.1 | 41.5 | 92 |
| Dimensions | A | 216 | 252 | 292 | 350 | 404 | 458 |
| B | 193 | 235 | 283 | 329 | 385 | 400 |
| C | 146 | 170 | 202 | 235 | 255 | 324 |
| D | 30 | 30 | 271 | 42 | 50 | 87 |
| E | 22 | 45 | 59 | 73 | 88 | 115 |
| F | 279 | 280 | 294 | 306 | 342 | 342 |
| G | 26 | 34 | 28 | 32 | 39 | 50 |
| H | 203 | 203 | 203 | 203 | 203 | 203 |

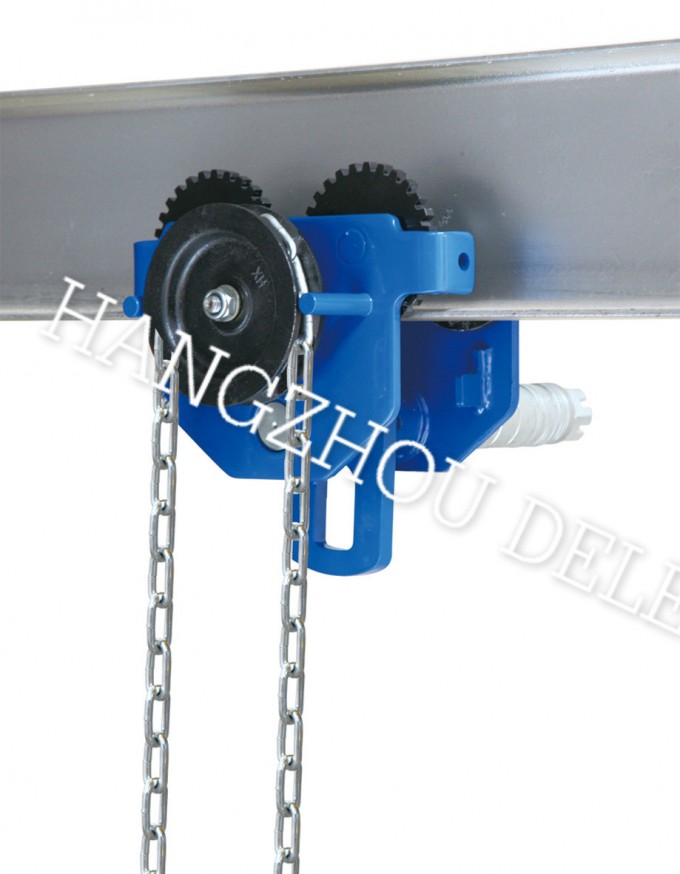

Product Image
