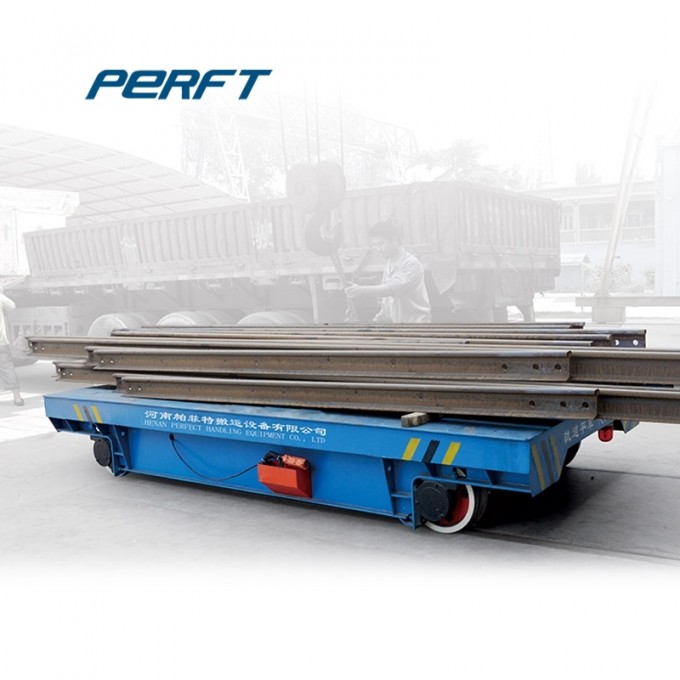

VFD Speed Control for Rail Utility Trailer Cart

VFD speed control for rail utility trailer cart1.IntroductionHenan Perfect Handling Equipment Co., Ltd. is specializing in the design and manufacture of heavy material transport equipment to solve every material handling requirement.Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Battery Operated Transport Trolley, Coil and pipes Carrier Equipment, Ladle Handling Equipment, Hydraulic Lift Table,Turntables and many other specialty items.Our line of cargo transport equipments are designed and manufactured to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others. These material handling equipmentare designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.


2.Application
Uses of heavycargo transport equipment:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer equipments are used: to carry loads alongassembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

3.Applicable Sites
PERFECT conceives and manufactures a wide range ofrailway guided transfer carts, battery poweredtrolleys, intelligentself-propelled trolleys, die carts, industrial flat trailers, tiltersand lifting platformsthat operate in manyindustrial fields: metallurgy, manufacture, oil andgas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation,coal industry,paper mills, metalworking, warehouse and many others!

4. Parameter

BJT SERIES TRANSFER CART TECHNICAL PARAMETER TABLE
Model		KPJ-2t	KPJ-5t	KPJ-10t	KPJ-16t	KPJ-20t	KPJ-25t	KPJ-30t	KPJ-40t	KPJ-50t	KPJ-63t	KPJ-80t	KPJ-100t	KPJ-150t
Rated Load(t)		2	5	10	16	20	25	30	40	50	63	80	100	150
Table Size(mm)	Length( L)	2000	3500	3600	4000	4000	4500	4500	5000	5500	5600	6000	6500	10000
	Width( W)	1500	2000	2000	2000	2200	2200	2200	2500	2500	2500	2600	2800	3000
	Heigth( H)	500	550	550	600	600	650	650	700	700	800	900	1000	1200
Wheel base(mm)		1200	2500	2600	2800	2800	3200	3200	3800	4200	4300	4700	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	1435	1435	1435	1435	1435	1435	1435	1800	2000	2000
Wheel Diameter(mm)		Ф270	Ф300	Ф300	Ф350	Ф350	Ф400	Ф400	Ф500	Ф500	Ф600	Ф600	Ф600	Ф600
Wheel Quantity		4	4	4	4	4	4	4	4	4	4	4	4	8
Ground Clearance(mm)		50	50	50	50	50	50	50	50	50	75	75	75	75
Running Speed(m/min)		25	25	25	20	20	20	20	20	20	20	20	20	18
Motor Power(Kw)		0.8	1.5	1.5	2.2	2.5	3	4	5.5	5.5	7.5	7.5	11	15
Running distance(m)		25	25	25	25	30	30	50	50	50	50	50	50	50
Max Wheel Load(KN)		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	278.4	343.8	265.2
Reference Weight(t)		2.5	3.5	4	5.2	5.6	6.2	6.5	7.3	7.8	10.5	12.3	14.1	26.2
Recommended Rail Model		P15	P18	P18	P24	P24	P38	P38	P43	P43	P50	P50	QU100	QU100
Notes:1.Load capacity,table size and rail gauge can be customized. 2.Options:a.Cable reel( Spring type, magnetic coupling type,motor- driven type);b. Automatic stop when detecting obstacle or person, limit switches(to limit travel);c.Operation way(hand held control pendant,remote radio control or operation platform with the cart; d.Electrical parts(imported or made in China); e. power supply position( middle or two ends);f.Variable speed device(VFD); g.Can be designed to meet special working environment such as high temperature.

5.Advantages
Low noise It causes low noise level.
Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.


6. Customizable
Appearance:Table Size, Table Material, Table type, Rated Load, Color, Wheel base,Detachable structure etc.
Special Function:Hydraulic Lift Table, Dumpling, Climbing, V shape, PLC control system, Automatic Positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system etc.
Safety Device: Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails etc.
Special Design: Round corner, Hold pendant box, Lifting hole etc.
