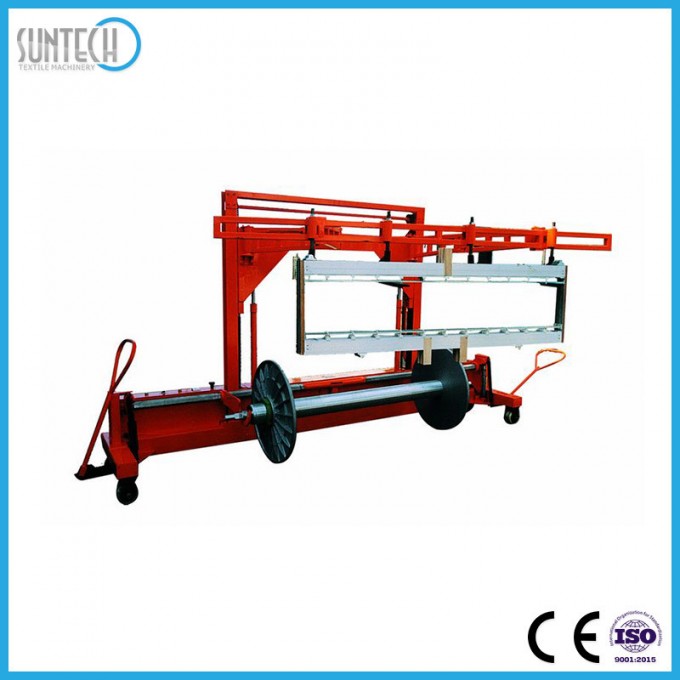

Hydraulic Warp Beam Lift Trolley with Harness Frame (ST-HBT-02)

ST-HBT-02 is suitable for bottom beam transporting, inserting in weaving machines. Warp beam weighting up to 2000kg and an additional loading capacity of 400kg for the harness.
The harness is accommodated by the standard take-up for the harness frame and the contact rails and dividing rails or the complete warp stop motion.

Features:
1). Separate steering by push/pull bar at both sides.
2). Steering in travelling direction fixable on the left and right side.
3). Two steered wheels and two guided wheels.
4). Wheels with ball bearings and thread protection caps.
5). Lifting movement by hydraulic foot pedal with automatic quick lift.
6). Harness mounting device. The carring arms are guided parallel to keep the warp tension even.
