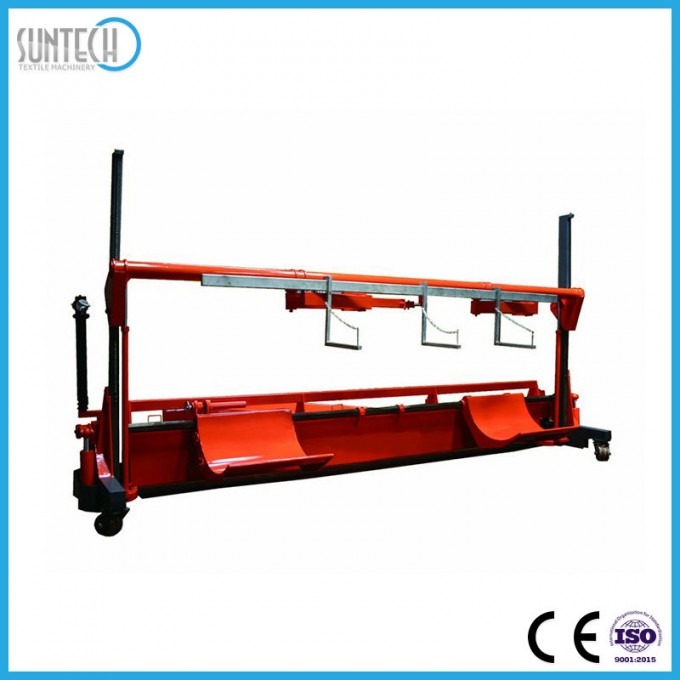

Motorized Twin Warp Beam Lift Trolley with Harness Frame (ST-MBT-03)

ST-MBT-03 is suitable for twin bottom beam transporting, inserting in weaving machines. The harness is accommodated by the standard take-up for the harness frame and the contact rails and dividing rails or the complete warp stop motion.

Features:
1). Regular drive with 2-AC drive motors.
2). Maintenance-free battery.
3). Electronic pulse steering for smooth starting and braking.
4). Automatically extending support rollers for transverse movement.
5). Lifting movement by motor-driven with automatic quick lift.
6). Harness mounting device. The carrying arms are guided parallel to keep the warp tension even.

Technical Specification:
Carrying Capacity:	1000-2500kg
Beam Flange Diameter:	800-1250mm
Beam Barrel Diameter:	100-400mm
Driven:	Two AC motors
