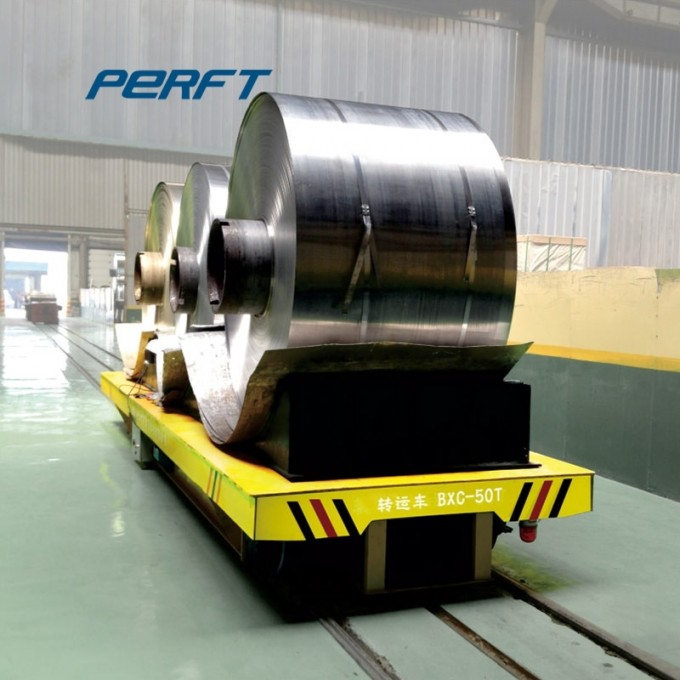

Low Voltage Rail Operated Electric Coil Transfer Cart

Low voltage rail operated electric coil transfer cart

Introduction of Electric Coil Transfer CartPERFECT Electric Coil Transfer Cartare used to transport steel coils and pipes for metal industry. This coil transfer Cars are designedto be an extremely cost effective, safe and flexible load moving alternative.
The Electric Coil Transfer Carts are manual guide vehicles equipped with specialized drive systems which make it possible to easily, pcisely and safely move up to 200 tons.The coil heavy load transfer cart is sometimes calleda heavy transporter, headless transporter or self-propelled modular transporter.


Application of Electric Coil Transfer Cart
Uses of Electric coil transfer cart:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.



Using Place of Electric Coil Transfer Cart
PERFECT conceives and manufactures a wide range ofrailway guided transfer carts, battery poweredtrolleys, intelligentself-propelled trolleys, die carts, industrial flat trailers, tiltersand lifting platformsthat operate in manyindustrial fields: metallurgy, manufacture, oil andgas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation,coal industry,paper mills, metalworking, warehouse and many others!


Parameter of Electric Coil Transfer Cart

Model		BDGS-20t	BDGS-50t	BDGS-100t	BDGS-150t
Rated Load(t)		20	50	100	150
Table Size (mm)	Length(L)	4000	5500	6500	10000
	Width(W)	2200	2500	2800	3000
	Height(H)	550	650	850	1200
Wheel base(mm)		2800	4200	4900	7000
Rail Inner Gauge(mm)		1435	1435	2000	2000
Wheel Diameter(mm)		350	500	600	600
Wheel Quantity		4	4	4	4
Ground Clearance(mm)		50	50	75	75
Running Speed(min)		0-20	0-20	0-20	0-18
Motor Power(kw)		2.5	5.5	11	15
Transformer Power(KVA)		6.8	10	30	30
Transformer Quantity		1	1	1	1
Running Distance(m)		70	50	50	50
Max Wheel Load(KN)		77.7	174	343.8	265.2
Reference Weight(t)		5.9	8	14.6	26.8
Recommended Rail Model		P24	P43	QU100	QU100

Advantages of Electric Coil Transfer Cart
---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

Factory and Customer



Packaging and Shipping


Q &A
Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carts are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
