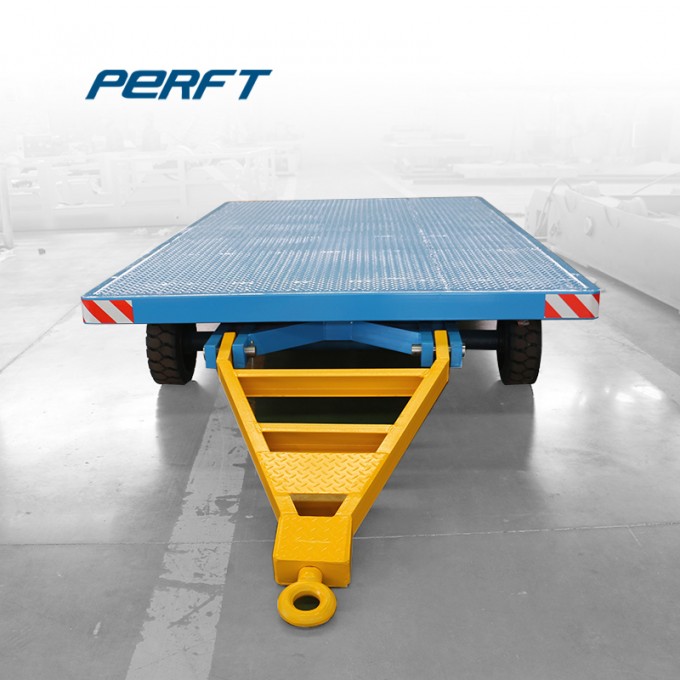

Metal Model Transport by Towable Warehouse Carts with a Towbar

metal model transport by towable warehouse carts with a towbar

1. Introduction
The workshop trailers are not powered and are meant to be pulled or towed by another powered transfer cart or a fork lift (of adequate capacity). They are a cost effective alternative to purchasing another powered transfer cart. For on-rail applications, a winch can be used to move carts. Pull type transfer carts are versatile and can be easily customized to suit applications.
Henan Perfect Material Handling line of Industrial Trailers include vary models and features to meet the needs of all major industries including Automotive, Basic metals, Heavy Manufacturing, Rigging, Stamping, and more.




2. Paremeter

Model	BWT-2T	BWT-5T	BWT-10T	BWT-15T	BWT-20T	BWT-30T	BWT-45T	BWT-60T
Rated Load(T)	2	5	10	15	20	30	45	60
Table Size(mm)	2000*1500	2500*1500	3000*2000	3200*2000	4000*2000	5000*2200	6000*2400	6000*2500
Height of Trailer (mm)	500	600	700	750	750	800	850	950
Wheel Quantity	4	4	8	8	8	12	12	12
Tire Specification	254*102	305*165	559*254	559*356	22*9-10	22*9-10	22*10-16	22*14-16
Tire Material	Polyurethane Solid Wheel, Press-on Solid Tire
frame Material	Q235	Q235	Q235	Q235	Q235	Q345	Q345	Q345
Color	Customized
Speed(km/h)	0-20	0-20	0-20	0-20	0-15	0-15	0-15	0-10

3. Application
The transfer carts vehicle of PERFECT allow movement charges at ground level in all types of industries and applications, such as warehouse, within or without factory, bay to bay, airport, sea port, manufacturing workshop, production lien, and son on.



4.Features

-----Towed by forklifts , tractor or other machine.
------Welded construction of structural steel
------Two swivel casters and two rigid casters
------Coupling connection for towing

5. Special function
• Urethane wheels
• Steel rail wheels
• Wheel brakes
• Wheel locks
• Fork lift pockets for transporting
• Weigh scales
• Stainless steel decking
6.Packaging and Shipping
For lengthis less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
