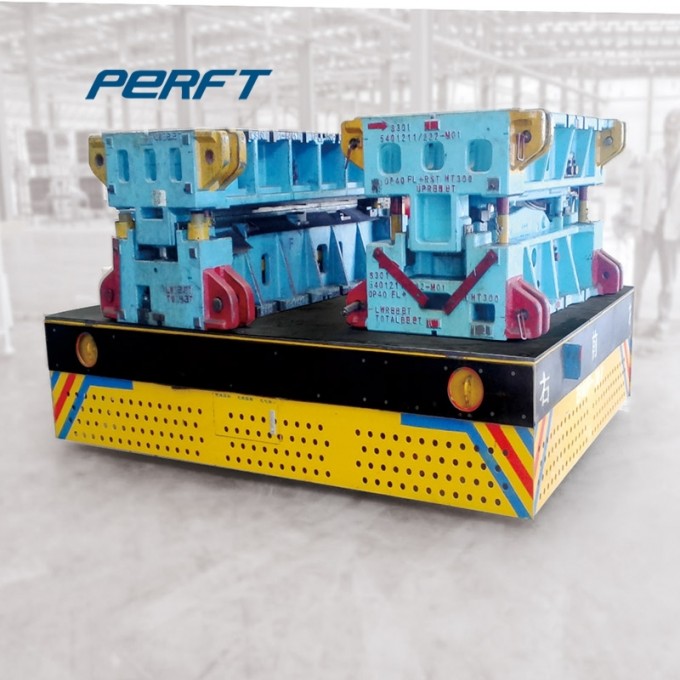

Heavy Duty Materials Workshop Steerable /Rail Transfer Cart
Introduction of Transfer Cart
Material Handling provides awide range of materials transfercartspecifically designed for the unique needs of bridge, simple building, concrete, co
ncrete column and other co
nstruction fileds. These products include Co
ncrete Column Transfer Cart, Architect Tools Shuttling Trolley, and Blender handling bogie and Buliding Materials Trailers Systems.
This kind of transfer cart could run on rails or cement floor which is chosen according to the transportation route or clients' project plan. The selec
ting concept: The rail transport cart is mainly used for fixed route no need of rotation; While the trackless transfer trolley on cement floor can realize 360°direction turning.
Application of Transfer Cart
We supply transfer cart in the small &large scale industries, steel industry, heavy engineering workshops, paper mill. Also we export ahuge range of the extreme quality of transfer cart. With advantages of large load capacity wireless power, the transfer cart is widely applied in bridge co
nstruction to transfer bridge. In this stage, the cart is generally worked together with cranes. Transfer cart is also widely in assembly line and can realize the straight rail, Sshape rail, Ushape rail, Cshape rail, Arc-shaped rail, 90 degree turn rail, crossing rail etc.
Parameter ofTransfer Cart
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 7.5 | 30 | 45 | 60 | 75 |
| Structure of frame | Steel plates welded beam |
| Thickness of the steel plate | 8 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 |
| Max. Wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop |
| Control method for turning | Control button |
| Turning structure | Mechanical |
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 450 (4) | 500 (4) | 600 (5) |
| Wheel material | ZG55+hydropurture |
| Running speed (m/min) | 0-15 | 0-12 |
| Brake principle | Electric magnetic brake |
| Ground balance | Mechanical automatic adjustment |
| Operation method | With wire or no wire |
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Battery maintenance | Free of maintenance |
| Charger's installation | Installed on cart | Split-type |
| Cart color | Yellow and warning sign |
| Charger's function | Automatic stop for obstacles |
| Radar control | 3-0.3 m, Automatic stop for obstacles |
| Warning equipment | Sound and light |
| Other functions | Turning light, night light and power display |
Details ofTransfer Cart
The transfer cart wheel material is polyurethane and is suitable to travel on cementDouble motor drive
Electric motor brakesWelded co
nstruction of structural steel
Wireless co
ntrol available
Cable pendant for walk beside controls
Company &Customers' Visit
Henan Perfect Handling Equipment Co., Ltd. Has been committed to solve problems related to the transportation and handling of materials for any type of industries and plants. We design and manufacture transfer carts, transfer trolleys, rail guided transfer carts, industrialflat trailers, tilters and other handling equipment. We provide all customized productions as you need and search functio
nal solutions to our customers.
Shipping &Packing
How to choose the Transfer Cart?
There are thress types of transfer carts, each designed for different applications. They are:
Towed Type Carts-For loads up to 100 ton. Carts have casters or crane wheels and are manually moved on smooth to semi-smooth floors or are towed behind lift trucks or behind powered carts mounted on rail. They are an eco
nomical alternative to purchasing asecond powered cart. Winches can also be used to pull carts of this type for on-rail applications. Carts can be sized according to requirements of work areas with space constraints.
On-Rail Type Carts-For loads up to 300 ton. Carts are mounted on steel rail for shuttling along afixed path. They can be AC powered or DC battery powered. Typically used for moving materials such as steel or tanks of liquids from one location to another. Larger cart capacities and sizes are available for specific applications. Custom deck f
rames can be designed for specific assemblies to carry an entire shift of production and even serve as astable moveable machine ba
se.
Steerable Type Carts-For loads up to 300 ton. Carts have two fixed and two swivel casters and are DC battery powered (optio
nal AC powered). Carts are designed to travel on smooth to semi-smooth level floors. Customization is available for specific applications.
