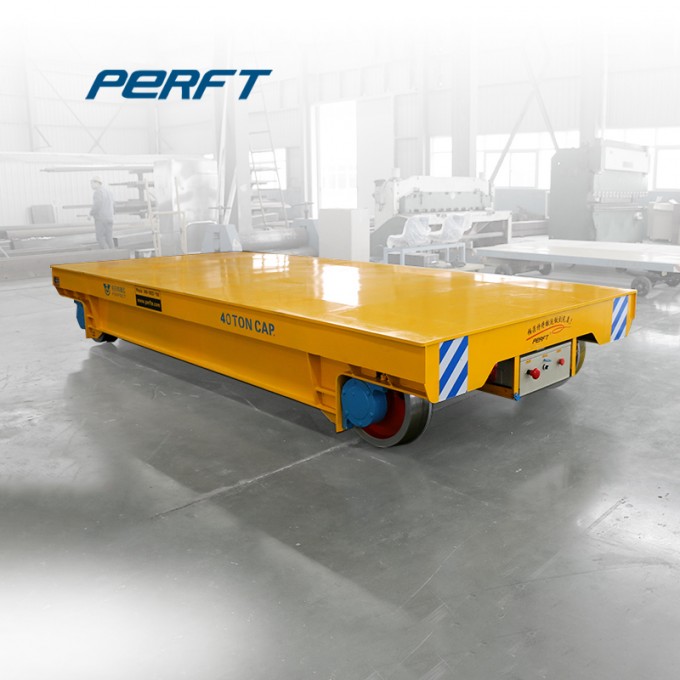

Heavy Material Transfer Trolley In-plant use Rail Guided Transfer Cart
1.Product Introduction---Rail Guided Transfer Cart
Heavy material transfer trolley in-plant use rail guided transfer cart provide dependable, efficient transfer of loads for a diverse array of applications ranging from aluminum anodizing, paper roll storage, general manufacturing and can be customized to suit. This rail guided transfer cart can reduce labor costs, optimize manufacturing processes and reduce capital costs associated with forklift systems. The end result is increased production and throughput.
2.Product Advantages---Rail Guided Transfer Cart
1)Therail guided transfer cart doesn't need have any steering function since they equipped with steel wheels and move just on railways.
2)Therail rail transfer trolleyrepsent the superior design for production cycles which are regular or frequent both time-wise and route-wise.
3)As they have steel wheels and run on fixed steel rails they are suited for very high loading capacities owing to the very low friction between steel and steel.
4)For all the reason, the cost of the rail guided transfer cart- referring to same dimensions and same loading capacity - is lower than the motorized battery trolleys on wheels which needed to equip with steering mechanism and greater powers.
5)Our company, with its 14 years experience in this kind of rail trolley, offers handling with state-of and the-art technologies, on account of co
ntinuous design improvement by insistingon most up-to-date electro
nic innovations.
3.ApplicationAreas---Rail Guided Transfer Cart
The rail guided transfer cartof PERFECT allow movement charges at ground level in all types of industries and applications, such as warehouse, within or without factory, bay to bay, airport, sea port, manufacturing workshop, production line, and son on.
Regardless of the complexity of your transportation requirements and the use of the environment, our engineers with 15 designing experience can provide you with a viable solution. Tell us your requirements, feedback to you suitable project eco
nomically and reasonably.
4.Product Details---Rail Guided Transfer Cart
The current is supplied to pulling motor through electric co
ntrol system, which makes the rail transfer trolley start, stop, move forward, move backward, turn around or change speed, etc. The rail guided transfer cart is standard equipped the cart f
rame, wheels, motor, reducer, battery, charger and hand pendant. And the trolley is also equipped with suchsafetydevice: buffer, alarm light, lifting hole,emergencystop button and radardetector.
5.Characters and Parameter---Rail Guided Transfer Cart
| Model | BDGS-20t | BDGS-50t | BDGS-100t | BDGS-150t |
| Rated Load(t) | 20 | 50 | 100 | 150 |
| Table Size (mm) | Length(L) | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 2200 | 2500 | 2800 | 3000 |
| Height(H) | 550 | 650 | 850 | 1200 |
| Wheel base(mm) | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 |
| Ground Clearance(mm) | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 2.5 | 5.5 | 11 | 15 |
| Transformer Power(KVA) | 6.8 | 10 | 30 | 30 |
| Transformer Quantity | 1 | 1 | 1 | 1 |
| Running Distance(m) | 70 | 50 | 50 | 50 |
| Max Wheel Load(KN) | 77.7 | 174 | 343.8 | 265.2 |
| Reference Weight(t) | 5.9 | 8 | 14.6 | 26.8 |
| Recommended Rail Model | P24 | P43 | QU100 | QU100 |
