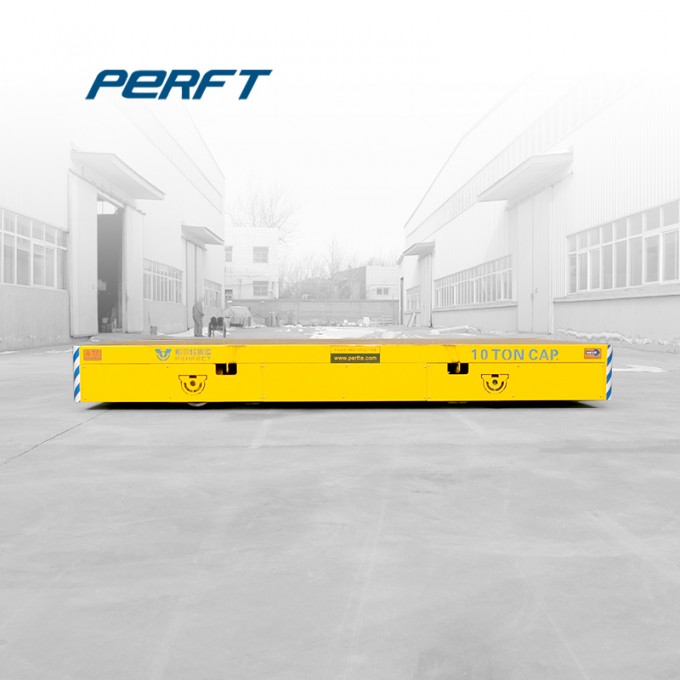

Steel Cast Material Motorized Warehouse Transport Trolley
1. Introduction of Warehouse Transport Trolley
Compact in design, the warehouse transport trolleycan handle upwards of 300ton and work well in areas with limited floor space. Itis more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads, The warehouse transport trolleyof material handling equipments running on cementcan offer flexibility as they can be customized to suit specific needs. In addition,the warehouse transport trolley can reduce labor costs, optimize manufacturing processes and reduce capital costs associated with forklift systems. The end result can be increased production and throughput.
2. Details of Warehouse Transport TrolleyThe main compo
nents of the warehouse transport trolley include: free maintenance storage battery, DC drive motor,gear reducer,electrical box, charger on board, pendant, remote controller, radar detector etc.
All we product can be customized as your special needs: the dimension (length, width, height), the load capacity, hydraulic lifting workplatform etc.
3. Application of Warehouse Transport Trolley
PERFECTwarehouse transport trolley isoperating in many shipping lines, stevedores, co
ncrete manufacturers, foundries, steel mills, etc. We have supplied hybrid transfer cartin the world for moving molds inside and outside the plant by electric traction and driving long distances.And also warehouse transport trolleys are mainly used to solve manoeuvrability problems in tight spaces. Due to all possible steering programs, on either o
neor different axles, you can achieve tight turning radious. The propulsion can be either electric for in-plant load carts or batteries for long distances.
4. Parameter of Motorized Transfer Vehicle
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Ground requirement | Cement floor or Steel plate ground |
| Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop |
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel material | ZG55+hydropurture |
| Running speed (m/min) | 0-15 | 0-12 |
| Brake principle | Electric magnetic brake |
| Operation method | With wire or no wire |
| Charger's installation | Installed on cart | Split-type |
| Charger's function | Automatic stop for obstacles |
| Radar control | 3-0.3 m, Automatic stop for obstacles |
| Warning equipment | Sound and light |
| Other functions | Turning light, night light and power display |
5. Our Company
Henan Perfect Handling Equipment Co., Ltd. is specializing in the Design and Manufacture of transport system to solve every material handling requirement.Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can ppare them to be used in rails, with auto
nomous batteries or for special applications.
6.Customization of Motorized Transfer Vehicle
Mechanical Options Include:
─ Deck Railings
─ Wood Decking Material
─ Screw-Jack Lift Deck
─ Paint Color (customer specified)
─ Rail Guides
─ End Stops
─ Urethane Wheels (not available on guided carts)
─ Live Axle
7. Q&A
1.What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
2. What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
3. How can Transfer Carts be customized?
Please tell us:
Whatload or product will be transferred o
nto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
