Warehouse to Warehouse Transportation Rail Handling Trolley

Warehouse To Warehouse Transportation Rail Handling Trolley

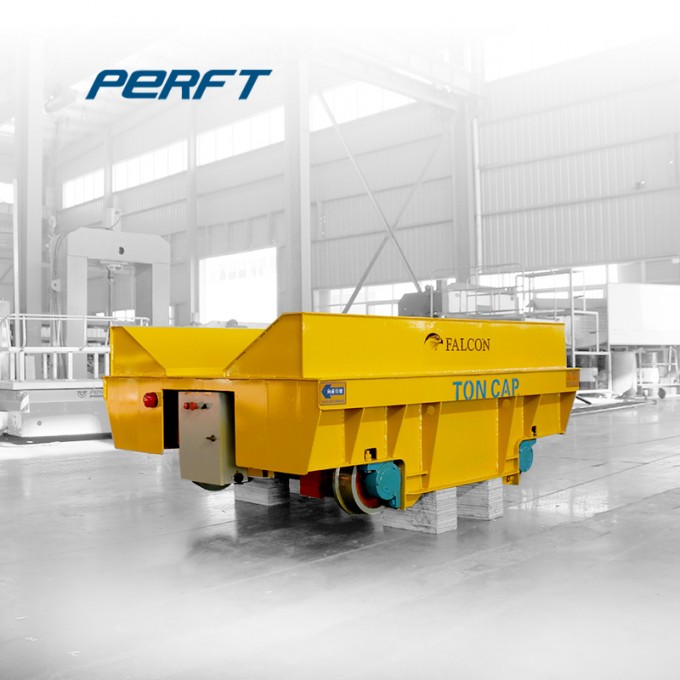

1. Introduction of Rail Handling TrolleyOur line of electricRail Handling Trolleyis designed to accommodate the needs of a wide range of industries including steel, nonferrous metals,aluminum, automotive, stamping, heavy manufacturing and several others. These carts are designed to operate on floor orrails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
All units are equipped with state of the art safety features including safety lights, horns, bumpers, dead man controls and mushroom type emergency stop buttons. In addition,our Electric Rail Handling Trolley equipped with semi-automatic and fully automatic control systems come equipped with a wide range of fully automatic safety controls.


2. Application ofRail Handling Trolley
We conceives and manufactures a wide range ofrailway guided transfer carts,electric flat trolley, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tiltersand lifting platformsthat operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!

3. Parameter ofRail Handling Trolley

Model		BJT-2t	BJT-20t	BJT-50t	BJT-100t	BJT-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	500	600	700	1000	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed (m/min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Running Distance (m)		25	30	50	50	50
Recommended Rail Model		P15	P24	P43	QU100	QU100

4. Customized

Standard Features & Available OptionsFlat decks or fixtures for transporting specific payloads Payload capacities from 1T to 300TFixed speed or variable speed capabilities Custom deck configurations may include lift, tilt, or rotate functions and otherOn board charging for DC powered drivesMany drive and steering configurations available to satisfy a wide range of requirements. Options for self loading/unloading Options for automatic operationAvailable safety equipment including but not limited to horns, lights, E-stop, bumpers and laserSpecifications Load Size/Shape: Customer suppliedLoad Weight: Up to 300 tonsCart Travel Speed: Up to 50m per minute (15 m/min) Power: Electric, battery or diesel


5.What Surfaces Do ItTravel On?
The On-rail Handling Trolley is designed with flanged wheels and travels on rail. Most applications are on level surfaces; however, it is possible for carts to travel on inclines not greater than 4°.
With steerable carts flat tread steel wheels (hardened tread surface) come standard and are fine for most concrete smooth to semi smooth floors. For non-marking epoxy floor systems, optional urethane wheels can be ordered (up to 20 ton capacity). Carts are not designed for uneven surfaces such as gravel, rough terrain, or badly cracked concrete floors.

6.Processing technic ofRail Handling Trolley
It is conceivable to arrangethe Rail Handling Trolley with remote control at automatic translation at inertial control. The self-acting cars increasingly being used in a wide range of manufacturing departments.It is possible to conceive and produceexplosion proof battery powered transfer cars for hazardous areas zones, IECEX and ATEX (like oil and gas industry, off-shore platforms, painting rooms, coal-mining industry mines), for petroleum, gas and mining industries.
