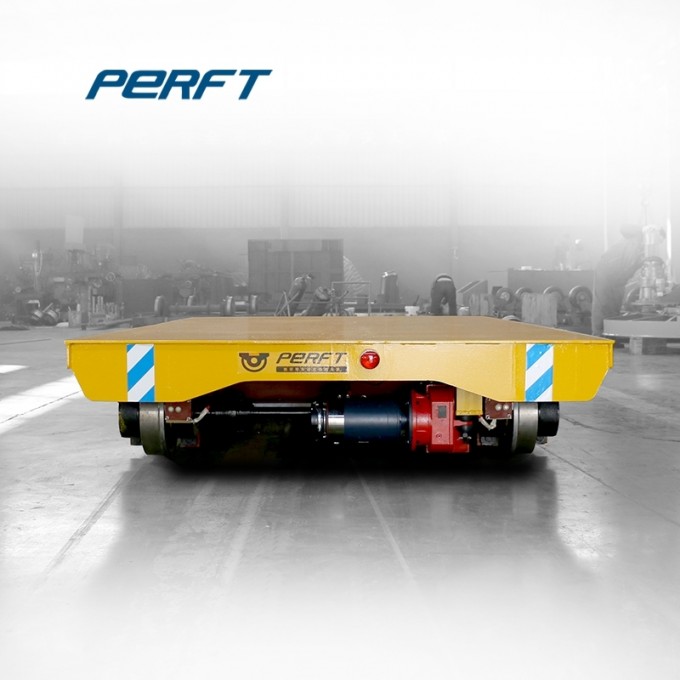

Heavy Industry Rail Transport Cart for Factory Warehouse Use

Heavy industry rail transport cart for factory warehouse use

1.Introduction of warehouse transport cartPERFECT's warehouse transportcartscan handle upwards of 300ton and work well in areas with limited floor space. Thesematerialtransport cartsare more accommodating for moving long loads through restrictive passage ways or doorways.Usually the heavy loads warehosue transport carsare used to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others.These electrictransport trolley cartsare designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.




2.Application of warehouse transport cart
Uses of heavy loads rail guided transfer carts:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.




3.Applicable sites of warehouse transport cart
PERFECT conceives and manufactures a wide range ofrailway guided transfer carts, battery poweredtrolleys, intelligentself-propelled trolleys, die carts, industrial flat trailers, steel coils and pipes transport vehicle, platform wagon, electric transfer carriage,and lifting platformsthat operate in manyindustrial fields: metallurgy, manufacture, oil andgas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation,coal industry,paper mills, metalworking, warehouse and many others!


4. Parameter of warehouse transport cart

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	900	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Running Speed(m/min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running Time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for One Charge(km)		6.5	4.8	4	3.8	3.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

5.Operation and Component of warehouse transport cart
There are a variety of drive and control systems for theheavy loads transport cart trolleys. Drive systems include gear reducer, axle drives and individual wheel drives. A typical unit is equipped with a hand held pendant control which is used by the operator to control the transfer car to move backward, forward along the track. With an average travel speed of 20m/min, an operator can walk along with the car to operate the unit. The pendant can be provided to be mounted on any of the 4 corners of the vehicle to allow the operator to walk along the leading end of the vehicle during operation. And our transfer trolley cars are also available with semi-automatic and fully automatic control systems to meet the needs of specialized applications.
All units are equipped with state of the art safety features including safety lights, horns, bumpers, dead man controls and mushroom type emergency stop buttons. PERFECT vehicles equipped with semi-automatic and fully automatic control systems come equipped with a wide range of fully automatic safety controls.



6. Our Factory



7. Q&A
Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carts are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
