Detailed Product Des
cription

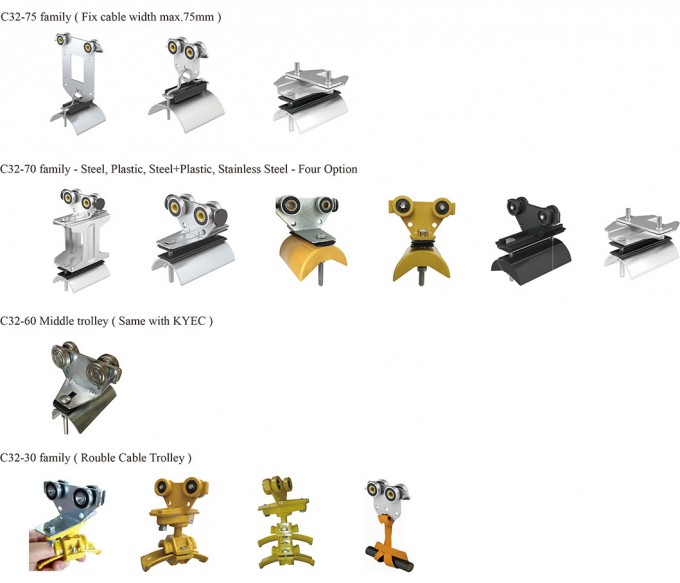

C32 Stainless Steel Rail Festoon System End Trolley
All compo
nents a
bout the stainless C track will be stainless included the bearing and shaft.
The stainless C track will be specially used in Galvanizing mill, Corrosive and acidic Working condition.
Factory Price Heavy Duty Festoon System For Crane-C Track, C Track Festoon System for Crane, GalvanizedSteelConductorRailsWithBrassDowel,C Rail and Trolley, Stretched Wire Festoon System, Festoon Cable Trolley, Festoon Cable System.
Detailed Product Des
cription
Festoon System can hold co
nductor cables and hoses (hydraulic and pneumatic applications) for delivering power & co
ntrol to mobile equipment in a safe, efficient and maintenance free method.
The C-track system is one of the most versatile festoo
ning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating co
nditions in a mild enviro
nment condition.
Application
C-rail systems applications&co
lon; crane manufacturing, hoist units, transport systems, special engineering, stacking systems, co
nveyor system, etc. C-rails are available in zinc-coated and stainless steel version (program 230 to 240). Special versions are available for explosion-proof areas.
Design features&co
lon;
Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation
Technical Parameters
Type
| C32*30*1.5
| C40*40*2.0
| C63*63*4.0
| C30*28*1.5
|
Material
| Stainless stell 304 |
Weight kg/m
| 1.19
| 2.00
| 5.98
| 1.03
|
Technical data
|
A
| 32
| 40
| 63
| 30
|
B
| 30
| 40
| 63
| 28
|
C
| 12
| 13
| 18
| 10
|
6
| 1.5
| 2.0
| 4.0
| 1.5
|
Spacing
| Max. Cable Load
|
1.5m
| 89kg
| 188kg
| 503kg
| 70kg
|
2.0m
| 51kg
| 103kg
| 425kg
| 36 kg
|
2.5m
| 39kg
| 73kg
| 302kg
| 22kg
|
3.0m
| 23kg
| 49kg
| 195kg
| -
|
4.0m
| -
| 28kg
| 85kg
| -
|
