Detailed Product Description

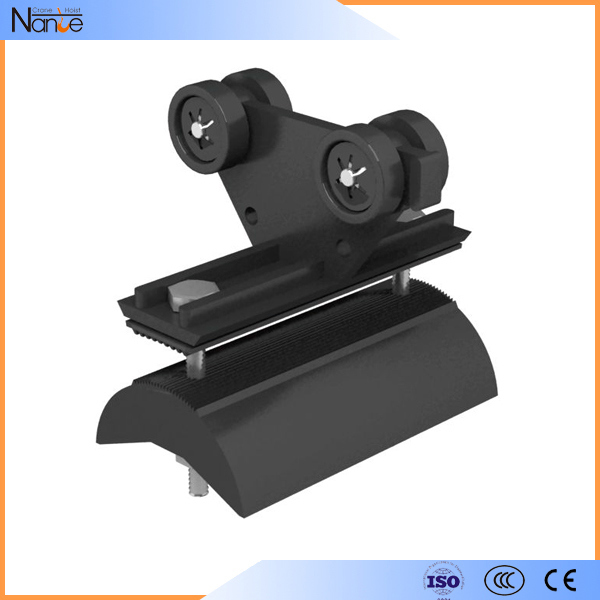

Hot Galvanized Steel Cable Trolleys, C Track Festoon System for Crane, GalvanizedSteelConductorRailsWithBrassDowel,C Rail and Trolley, Stretched Wire Festoon System, Festoon Cable Trolley, Festoon Cable System.
Detailed Product Description
Festoon System can hold conductor cables and hoses (hydraulic and pneumatic applications) for delivering power & control to mobile equipment in a safe, efficient and maintenance free method.
The C-track system is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition.
Application
C-rail systems applications: crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc. C-rails are available in zinc-coated and stainless steel version (program 230 to 240). Special versions are available for explosion-proof areas.
Design features:
Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation
Technical Parameters
| Type | C32*30*1.5 | C40*40*2.0 | C63*63*4.0 | C30*28*1.5 |
| Material | Galvanized steel / Except C63 | |||
| Weight kg/m | 1.19 | 2.00 | 5.98 | 1.03 |
| Technical data | ||||
| A | 32 | 40 | 63 | 30 |
| B | 30 | 40 | 63 | 28 |
| C | 12 | 13 | 18 | 10 |
| 6 | 1.5 | 2.0 | 4.0 | 1.5 |
| Spacing | Max. Cable Load | |||
| 1.5m | 89kg | 188kg | 503kg | 70kg |
| 2.0m | 51kg | 103kg | 425kg | 36 kg |
| 2.5m | 39kg | 73kg | 302kg | 22kg |
| 3.0m | 23kg | 49kg | 195kg | - |
| 4.0m | - | 28kg | 85kg | - |
