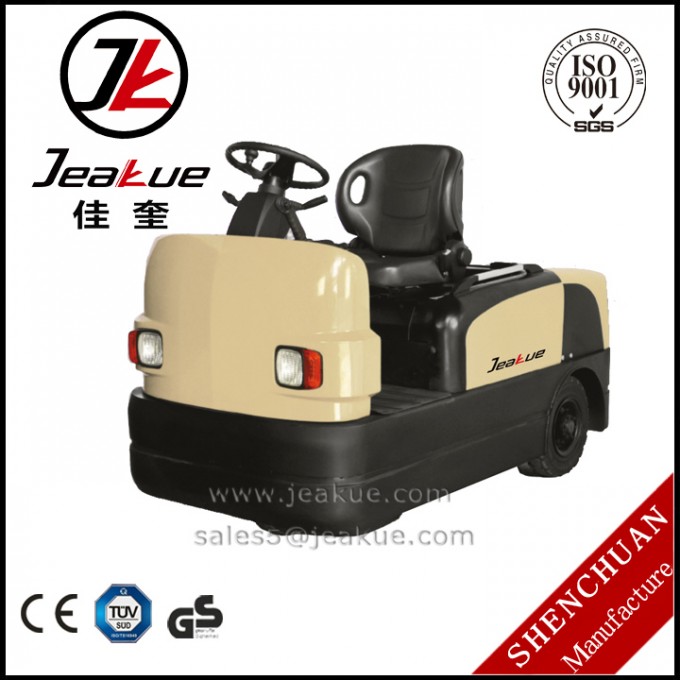

6 Ton Heavy Duty Seated Electric Tractors for Sale

Product Description :


Basic description :

Product name :6 Ton Heavy DutySeated Electric Tractors for Sale
Capacity :6000kg
Operation type :Driving type


Details description:


1.In the carring of material handling on modern assembly line and in large factory, materials always exsite on the trailer, it need the tractor to solve the high efficient transportation between different areas. JEAKUE electric serie car type and standing-drive type tractors well meet this requirement,electric tractors.
2.Fashional and funny appearance designing brings fresh wind to tranditional industry vehicle.
3.It's mainly used for goods traction in airport, station, workshop, warehouse.

AC electric controlling and motor
1.Maintenance-free AC driving motor has large torgue, strong gradeability, big tracting force, and strong power, and ensures the machine could still drive smoothly on unflat road and slope, the service of motor is longer,electric tractor .

2.Advanced AC controller has regeneration function, which increases operational usetime of battery.


Controllability
1.Part of controlling is arranged resonably, which provide large operation space to operator;
2.Spacious and comfortable seats with buffer function, which make operator driving comfortably, the loading capacity is strong, which could effectively relieve fatigue;
3.Larger connecting area of the pedal and overlong safety grab bar provpde operator safe and comfortable controlling performance,seated electric tractor ;


4.It could adjust the orientation column in wide-angle according to requirement of operator;
5.Position of the emergency switch is reasonable, which makes operator could cut off the electric power in shortest time;


6.Arrangement of steering wheel, change-over switch, parking brake, pedal is totally accorded with the electric counterbalance truck, it provides convenience to the operator who drives various of vehicle;
7.Overlarge battery case designed, battery could be installed with different capacity;
8.Inching button on the rear of the tractor could control effectively the movement in asmall scale;
9.Large diameter pneumatic tyre is usable in both indoor and outdoor;


10.Designed with low center of gravity makes the driving quite stably;
11.Electronic steering provides pcise controlling, auto braking makes operation more safe;

Braking system
1.Motor has the braking effect in the process of braking and decelerating;
2.Electromagnetic braking relizes the more guaranteed parking and barking, which ensures the vehicle could also park safely on the slope;

3.The triple guarantee of electromagnetic braking, notor braking and hydraulic braking improves the safety and reduces the loss, which makes thw whole tractor has longer service life;

Item No.			JK8177
Charactiristics	Power unit		Electric
	Operation type		Car type
	Rated tracting weight(Q)	Kg	6000
	Rated tracting force(F)	N	1200
	Wheel base(y)	mm	1130
Weight	Weight including battery	kg	1150
	Axle load, no load, front/back	kg	500/650
Tire chassis	Wheels type		Rubber
	Size of front wheels		4.00-8
	Size of back wheels		4.00-8
	Qty of wheel (x= driving wheel), front/back		1/2x
	Track rear(b11)	mm	860
Size	Whole height of whole tractor (h1)	mm	1300
	Height of seats(h7)	mm	920
	Height of tracting hook (h10 a/b)	mm	285/365 (235/315,340/420)
	Height of cargo plaltform (no loading) (h11)	mm	770
	Length of cargo platform(l3)	mm	370
	Rear overhang (l5)	mm	345
	Width of cargo platform(b9)	mm	700
	Length of whole tractor(l1)	mm	1900
	Width of whole tractor (b1/b2)	mm	990/990
	Ground clearance(m2)	mm	150
	Turning radius(Wa)	mm	1850
	Inside turning radius(b13)	mm	600
Performance	Running speed, full load/no load	Km/h	7/17
	Tracting force, full load/no load	N	1200
	Max tracting force, full load/no load	N<, /SPAN>	4500
	Max gradeability, full load /no load	%	5/20
	Braking type		Hydraulic braking/mechanical braking
Driving	Output power per hour of driving motor	kw	4
	Battery, voltage/capacitance	V/Ah	48/325
	Dead weight of battery	kg	540
Others	Driving control		AC
	Manufacturer		ZAPI
	Operation decibel	dB(A)	70
	Traction pin		Bolt type
