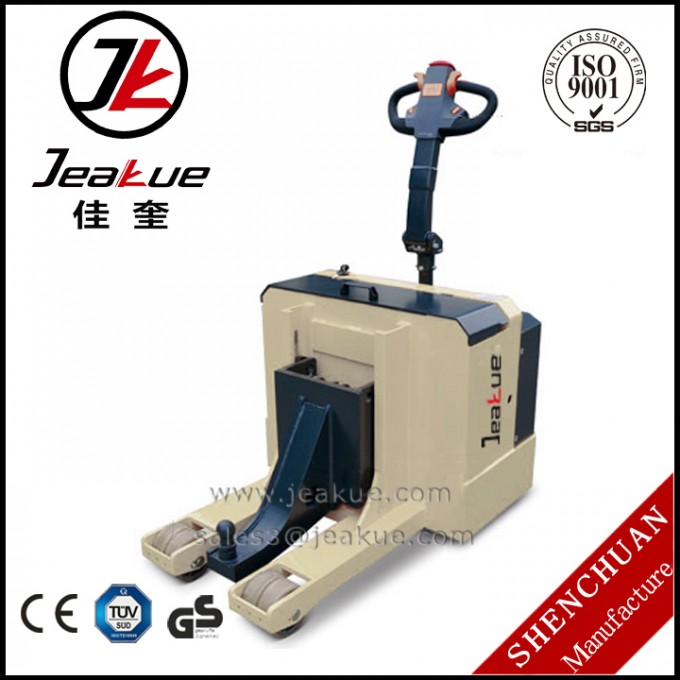

High Quality 1000kg Handle Heavy Duty Full Electric Tractor

Product name :High Quality 1000kgHandle Heavy Duty Full Electric Tractor
Capacity :1000kg
Operation type :Driving type


Details description:

1.imported HAIPU hydraulic pump from Italy;
2.Regeneration braking function;
3.CURTIS electronic controller,electric tractor;
4.FREI handle imported from Germany;
5.Emergency reverse device on the handle improves the safety and reliability of operation;
6.Emergency electric power supple after switch cut off,electric tractor;

7.Braking system coordinates the interval and horizonal location of the handle, which increases the safe performance of the tractor

Item No.			JK8180
Charactiristics	Electric source		Electric
	Operation type		Walking type
	Lifting rated loading weight	Kg	≤1000
	Drag and drop rated loading weight	Kg	≤3000
	Rated loading wewight of pull rob on hook	kg	97.6
	Focal distance	mm	112
	Wheel base(y)	mm	999
	Weight (excluding battery)	kg	435
Wheels	Tyre		polyurethane
	Driving end of wheel	mm	Φ230x75
	Loading end of wheel	mm	Φ150x60
	Size of balance wheel	mm	Φ100x50
	Qty of wheel (x= driving wheel), driving end/loading end		1x-2/2
	Surface width of the driving end	mm	400
	Surface width of the loading end	mm	568
Size	Whole height	mm	1400
	Lifting height	mm	378
	Handle height at the driving position (max/min)	mm	1350/800
	Whole height	mm	1227
	Length to pallet fork	mm	565
	Whole width	mm	850
	Min ground clearance	mm	70
	Turning radius	mm	1200
Performance	Running speed(full load/no load)	Kw/h	5.2/6
	Lifting speed(full load/no load)	mm/s	40/50
	Declining speed(full load/no load)	mm/s	50/40
	Max gradeability(full load/no load)	%	8/15
	Service brake		Electromagnetic type
Driving	Driving motor watt	kw	1.1
	Lifting motor watt	kw	2.2
	Battery, voltage/capacitance	V/Ah	24/210
	Weight of battery	kg	195
Others	Driving control type		Field effect tube control
	Noise class to operator	dB(A)	<70

Company Introduction :

Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. was established in May 2003 in Shanghai. Over the past 10 years, we have been always adhering to the idea of "all service to meet customers' needs", breaking through technology, manufacturing the finest products, improving service with our globalization vision.

We have developed avariety of international advanced products joint with world-renowned industrial equipment manufacturers, such as: ABB, ZF, BOSCH, CAT, TEREX, and avariety of sophisticated products with independent intellectual property patents together with well-known Chinese universities in the area of machinery, electronics, physical mechanics etc.

We will provide comphensive and multidimensional supply chain service for global customers with our most optimized scheme, best quality products, most attentive service and most competitive price, to reduce the maximum supply chain cost for customers and increase the production efficiency.
