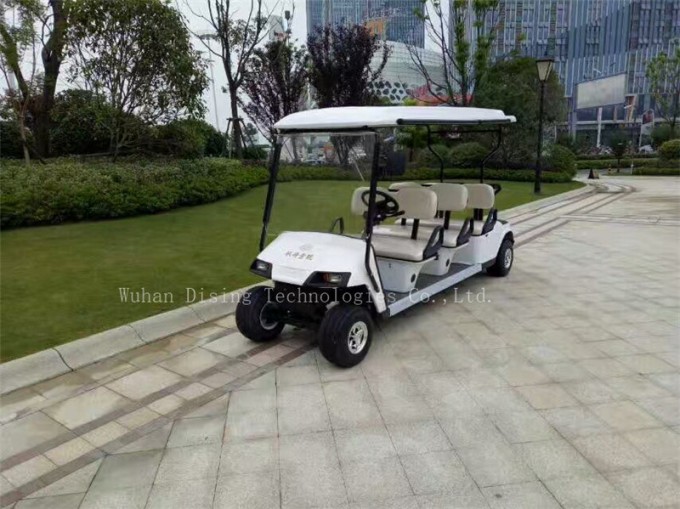

Ce Approval Electric Golf Cart Model G06 with A/C Electric System

Long Range High Configuration DSG-06 Electric Sightseeing Car

A series of 5 electric patrol cars NO.:
Electrical System	Electronic control	AC Motor Controller	Bitmap
	battery	6V180AH/only, 8pcs/48V (plus liquid lead-acid battery)
	Motor	4KW AC series excitation motor
	Charger	Portable intelligent charger
	Charging time	8-10 hours (discharge rate is 80%)
Technical Parameters	Charging input voltage	220V
	Length * width * height	3290 × 1515 × 1890mm	Braking distance	≤ 5m
	Vehicle equipment quality	780kg	Rated crew	5 people
	Vehicle load	400kg	Maximum travel speed	25km/h
	Front and rear track	1295/1330mm	Maximum grade	20%
	Wheelbase	2210mm	Minimum turning radius	4.5m
	Minimum ground clearance	180mm
Body system	Seats	The first row seats (1+1, leather fabric + high rebound PU, corner adjusters, with armrests, two-color seats) Rear triple upholstery seat (leather + high-impact PU, with armrests, two-color seats)
	Body	Steel frame + FRP Shell / ABS Plastic Molded Parts
	meter	Lnstrument LCD display (including voltage, current, speed, mileage, light, front and rear commutation, etc.)
	rearview mirror	Manual exterior mirror
	Lights and signals	Combination Headlight, turn signal, combination rear light, brake light, electric horn and reversing buzzer, far and near light + overtaking
	Alarm equipment luxury lights	professional alarm
	sound	Audio car MP3 player, professional speaker
	switch	Start switch, light and wiper combination switch, advance and retreat position switch, warning light and reversing buzzer rocker switch
	Top handle	Rrebound handle
	frame	Steel frame
	steering wheel	Polyurethane foam steering wheel
Chassis system	Power transmission system	Lnfinitely variable transmission system
	steering system	Adjustable Steering Column + Rack and Pinion Directional Machine
	Front axle and suspension	MacPherson independent suspension
	Rear axle and suspension	Integral rear axle (12.49) + high-strength leaf spring + cylinder type hydraulic shock absorber
	Braking System	Front disc type, rear drum type hydraulic brake, dual circuit hydraulic brake, parking brake device
	Tires	Wheel 12 × 4.5 aluminum alloy wheel +155R12C vacuum radial tire
Oil paint		Automotive grade paint, computer paint, professional spray equipment

Standard Configurations
Motor	48V/4KW DC motor, powerful, superior traction performance, low noise, overload capacity, long service life.
Controller	48V/4KW Curtis controller
Body & Roof	High impact fiber glass, The body is super strength, corrosion resistance, long life of automotive glass fiber reinforced plastic material, beautiful and durable, light weight and other unique advantages
Batteries	Free-maintenance Batteries, 6V/225Ah*8 pcs, Large capacity deep cycle power battery, good safety, long life, high service life
Windshield	See-through Laminated glass, The car is equipped with special glass car wiper
Seats	Sponge + artificial leather, high rebound PU, with handrails, riding comfort
Rear view mirror	2pcs , manual exterior rearview mirror, comphensive understanding of road conditions
Tire	155/80 R12 Radial tire (Auto tire), Alloy Wheel,Vacuum Tire
Chassis	Welded tubular steel with rust-proof powder coated paint
Steering	Single reduction rack and pinion, Adopt automobile steering machine to adjust the clearance automatically. Matching perfect trapezoidal mechanism, rotation without dead angle, direction more light
Front Suspension	The MacPherson Strut suspension system, coil spring+shock absorber
Rear suspension	Leaf spring+shock absorber non-independent suspension
Lighting system	2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights
Sound system	Radio and MP3 player; Speaker
Brake system	4-wheel hydraulic drum brake system + handbrake
Charger	Automatic high efficiency pulse, Output:48V/25A, Input AC 220V/50HZ
Dashboard	Voltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button
Color	Bitmap

Company profile
Wuhan dising technologies Co., Ltd.Is located in the east lake new technology development zone in wuhan, hubei province.It is aprofessional supplier of tourist attraction, theme park, characteristic town, and commercial block slow rail transit system;Our service covers the whole process of slow rail transit system survey and design, special track vehicle design and so on.
We promise to improve our professional skills and be based on acareful design attitude, aprofound understanding of customer needs and arich experience in project implementation, to provide customers with high quality and reliable products and economic and reasonable projects.






Products Series
In the years of industry experience, the company created the Taiwan tenyun steam locomotive replica plate, the Tianya corner scenic spot in Hainan, the Changchun Yuet square project, the tram, the Shandong lling National Agricultural Park sightseeing train, the Anji Lu Jia Village sightseeing small train and so on. The main products covers three kinds of landscapes:tourism. Sightseeing trains, sightseeing trams and locomotives three kinds of landscapes.
1. Electric and Diesel Train Sets
2. Electric Locomotive and Diesel locomotive
3. Fun Train
4. Sightseeing Mini Train
5. Tram


Delivery and Shipment
Shipping by sea: Around 4 weeks to arrive.
Delivery Time: Around 30 working days after receipt of deposit.
MOQ: 1 set.
Payment Term: 30% T/T deposit, 70% T/T before delivery.




Warranty
Diesel Track Train: 1 year full warranty,offer FREE components under EXW shipped term.


FAQ
1.Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.

2. Q: What's the delivery time?
A: It usually takes about 25 working days for production based on specifications for your order and quantity.

3. Q:What's your payment terms?
A: We usually accept T/T or L/C at sight as the main payment terms,and
other payment can also be negotiated.

4. Q:What's your warranty terms?
A: We offer different warranty time for different components, please contact us for details.

5. Q: Do you have the train in stock?
A: No,all ebikes will be newly produced according to your order including samples.

6. Q: Can I mix different models in one container?
A: Yes, different models can be mixed up in one full container.

7. Q: How does your factory do regarding the quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before packing and shipping.

8. Q: Will you deliver the right products as I ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and loyalty. Our company has been audited and approved by SGS and TUV, assessment report will could be sent to you by email. If you check, you will see that we have never got any complaint from our customers.
