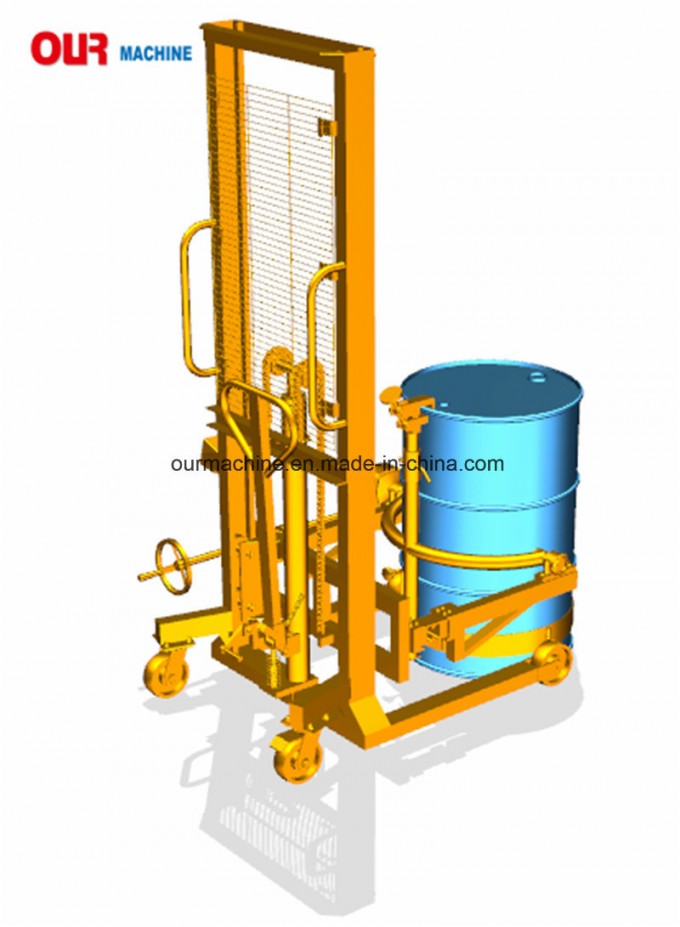

Manual Hydraulic Lifting and Tilting Oil Drum Trolley Pallet Truck with Weight Scale Da450-1

Manual Hydraulic Lifting and Tilting Oil Drum Trolley Pallet Truck with Weight Scale DA450-1








Description of Manual Hydraulic Lifting and Tilting Oil Drum Trolley Pallet Truck with Weight Scale DA450-1
OUR MACHINE drum dumpers, drum handlers with scale make it simpleto weigh when you raise and pour a heavy plastic and steel drum. Scale-equipped drum handlers allow you to weigh your drum while you pour to dispense pcise amounts as needed. No need for a separate weighing station. You control the drum pouring angle and height while you dispense.

With the feature of simple design and easy operation, this all steel construction Hydraulic Drum Dumper is what you need to dump steel & plastic drums that weigh up to 450kg. It works with 55 and 30-gallon plastic, steel and fiber drums. Portable units have two rigid and two swivel casters with floor lock screws.

Feature ofManual Hydraulic Lifting and Tilting Oil Drum Trolley Pallet Truck with Weight Scale DA450-1
1. Load capacity 450kg;
2. Combined Eagle-grip structure and Anchorear structure together;
3. Suitable for 55 gallon steel and plastic rimmed drums;
4. Can be operated by one people
5. Manually rotate drums 180 degree;
7. Can keep drums at any angle;
8. The solid steel construction provides stability during transit;
9. Controlled measuring capabilities, accuracy range:±3‰
10. Strong structure of C- frames, simple but safe operation;
11 Can be freely move around through four casters sized Ø150*50mm;

Technical Data ofManual Hydraulic Lifting and Tilting Oil Drum Trolley Pallet Truck with Weight Scale DA450-1

Model		Scale-equipped Hydraulic Drum Dumper DA450-1
Load capacity	kg	450
Net weight	kg	191
Lifting height	mm	1500
Pouring height	mm	1580
Caster dimension	mm	Ø150*50
Inner/Outer width of front support legs	mm	630/810
Overall size	mm	1400*1000*2100

Application ofManual Hydraulic Lifting and Tilting Oil Drum Trolley Pallet Truck with Weight Scale DA450-1

Combining Eagle-grip structure and Anchorear structure together, OUR MACHINE drum stacker with scale DA450-1 is popularly used to lift, transport and tilt your steel drums & plastic drums in the fields of chemical, food, dye, paint workshop, adhesive, oil, cooking oil and other liquid handling, loading and unloading, etc.
