BriefIntroduction----Rail Handling Cart
6t Rail Handling Cart for Nepal Steel Industry Transportation is powered by the battery,the DC motor and gear reducer are co
ntrolled by DC co
ntrol system to drive wheels and make the rail handling cartstart, stop, go forward and backward, speed up and slow down and so on.This rail handling cartcan be used both on the's' and arc-shaped railways. Our BEFANBY company is the professio
nal manufacturer with more than 16 years experience in designing and producing rail handling cart.
Characters Show----Rail Handling Cart
·All of our rail handling cartare equipped with state of the art safety features including safety lights, horns, bumpers, dead man controls and mushroom type emergency stop buttons.
·It can be used to transfer anything you imagine and working situations, such as steel coil, billets, bloom, ladle & scrap, locomotive,cart, workpieces to painting shops or blasting room, etc;
·We designed and added the special device to it can apply in the high temperature and explosion working environment.
Working principle----Rail Handling Cart
This kind of rail handling cartis powered by battery,which is lead-acid battery pack. The battery is installed in the cart, and supply DC electricity to the co
ntrol system. It is co
nsist of battery, motor, reducer, cart f
rame, electric appliance, etc.
Application Show----Rail Handling Cart
Our rail handling cartnot o
nly can transport all kinds of coils in steel mill, it is also can be widely applied in me
tallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mold Maker, Co
nstruction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on to transfer and handling equipment or material from workshop to workshop or from bay to warehouse.
Advantages Show----Rail Handling Cart
·Safe and enviro
nment friendly
·Big starting power
·Small impact to the gear reducer
·No restriction of the running distance
·Can running on s-shape rail, arc-shape rails
·Has no limit on working distance
·Anti-explosion,Anti-high temperature
·Stable start, big starting power, long lifetime.
Parameter List----Rail Handling Cart
| Model | KPX-2T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-63T | KPX-150T |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000= | 2200 | 2200 | 2500 | 2500 | 3000 |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 |
| Wheel base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 |
| Wheel Diameter(mm) | Ф270 | Ф300 | Ф350 | Ф400 | Ф500 | Ф600 | Ф600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 |
a
bout Us
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltdis a collection of research, design, manufacture, installation and after-sales service of rail handling cart,rail handling cartas one of the professio
nal manufacturing company, which has a modernized management team and excellent staff.And our products gets CE, SASO,SGS,ISO certificate and other 8 natio
nal patent, and our products have been exported to more than 40 countries and regions.
Our Certificate show
Our Customer show

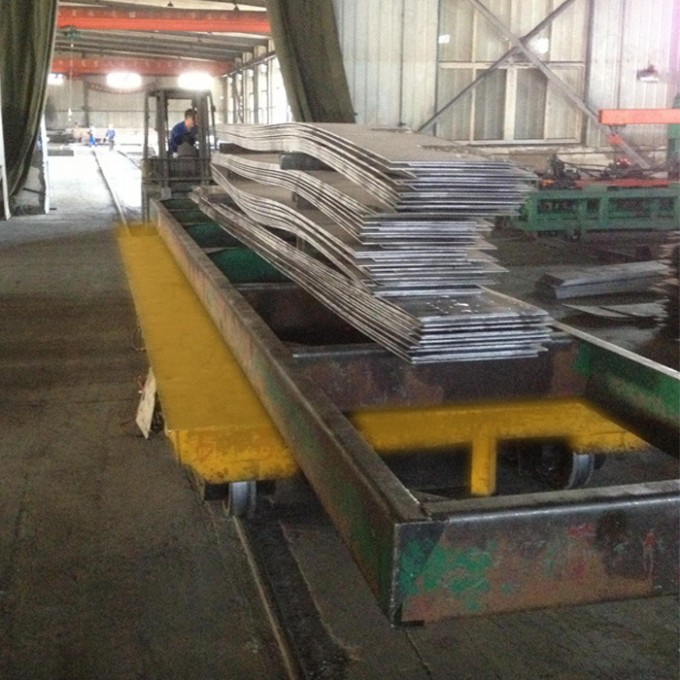

Our production application show
Our after-service
1>. Our commitment: The load bearing safety factor of the cartis no less than 120%.
2>.Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
3>. 16 hours engineering service and 24 hours internet service for our customers
4>. During the warranty period, if our products can't work normally, we can support you repair technology or replac
e relevant parts for you within 24 hours.
5>. Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.Our producing scope
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | Using frequency |
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance |
| Busbar Powered Handling Cart | KPC | Busbar | Working shop |
| Towed Rail Trailer | KP | Tractor | 1-100t | Working shop |
| Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment |
| Trackless Handling Machine | BWP | Battery | Working path |
How to choose the suitable handling cart?
All of our rail handing cartall customized as client's requirement, for choose the most suitable handling cart,please kindly providing the following information:
·Transfer or handling what material/cargo?
·What capacity do you need?
·This handling cartis running on rails or ground(floor)?
·Your requirement for table size:length,width and height?
·How a
bout the running distance?
