Steel Cutting Production Line Using Electric Flat Carts

Steel cutting production line using electric flat carts

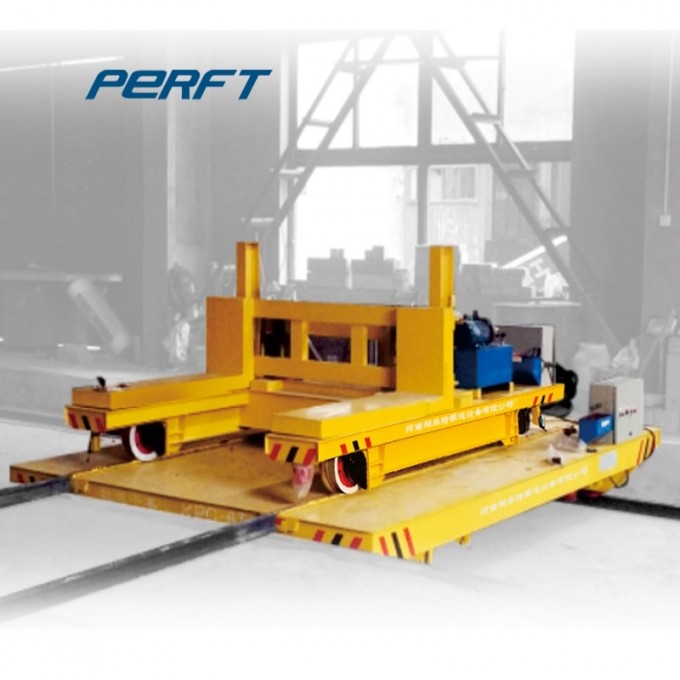

Product Persentation----Electric Flat Cart
Our line of Electric Flat Cart are designed to accommodate the needs of a wide range of industries such as steel, aluminum, automotive, stamping, heavy manufacturing and several others. These units are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane. This type Electric Flat Cart is powered by cable reel. It can be also powered by battery and low voltage rails. The powered source is depend on the running distance.



Parmeter----Electric Flat Cart

Model		BJT-2t	BJT-20t	BJT-50t	BJT-100t	BJT-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	500	600	700	1000	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Running Distance(m)		25	30	50	50	50
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.5	5.6	7.8	14.1	26.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

Advanages----Electric Flat Cart
----Low noise:It causes low noise level.
----Maximum safety:Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
----Easy for operation:These Electric Flat Cart are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transfer cart.
---Flexible:The transfer carts eliminate first-in/first-out or fixed move paths
---Customized:The Electric Flat Cart can be customized depending on all customer demands: dimensions, control mode rated load, battery life, superstructures, wheels and many others.


Application----Electric Flat CartThe cable reel powered transfer cart can be applied in assembly line(ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor).


Other Products
Welcome to Henan Perfect Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of transport system to solve every material handling requirement.Our product includes Industrial Trailers, Coils & Die Transfer Cars, Electric Railway Ladle Cart, Scissor Lift Tables, Turntables, Trakcless Transfer Cart and many other specialty items.

Packing and Shipping----Electric Flat Cart*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.


Q & A: How to choose one suitable Electric Flat Cart?

Please provide the answers below:
-Load capacity?
-Table size? (Length; Width ; Height)
-What cargo do you use the cart to transfer?
-What is the travel area you need to cover? (Indoor/Outdoor, straight line travel, etc)
-How about the running distance?
-What type(s) of power supply are required?
-Do you need any special functions?
