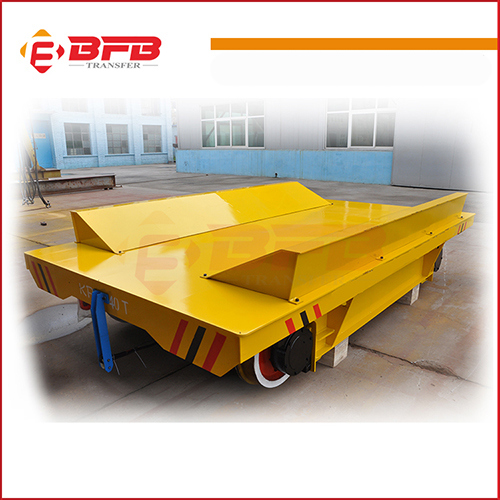

Steel Coil Transfer Cart for Steel Plant Mounted on Rails

Brief introduction--- Steel Coil Transfer Cart for Steel Plant Mounted on RailsTransfer cart, also called transfer trolley, transfer vehicle or climbing transfer cart, is a kind of electric material handling equipment.heavy equipment machinery electric railway wagon transport characterized as simple structure, easy to maintain and operate heavy carrying capacity, be friendly to the environment, etc.
Working principle-- KPJ series Steel Coil Transfer Cart for Steel Plant Mounted on RailsKPJ series Steel Coil Transfer Cart for Steel Plant Mounted on Rails is powered by cable reel(cable drum) which is installed in the trolley. We are adopts the magnetic coupling cable reel, it can make sure that there is no force on the cable and the cable can be wound and released evenly (if the running distance is more than 50m, a cable arranger is needed to arrange the cable automatically).
KPJ seriesTransfer Cart Parameter List

Model		KPJ-2T	KPJ-10T	KPJ-20T	KPJ-30T	KPJ-50T	KPJ-63T	KPJ-150T
Rated load (T)		2	10	20	30	50	63	150
Table size(mm)	length(L)	2000	3600	4000	4500	5500	5600	10000
	Width(W)	1500	2000	2200	2200	2500	2500	3000
	Height(H)	500	550	600	650	700	800	1200
Wheel base (mm)		1200	2600	2800	3200	4200	4300	7000
Rail Inner Gauge (mm)		1200	1435	1435	1435	1435	1435	2000
Wheel Diameter(mm)		Φ270	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Wheel Quantity		4	4	4	4	4	4	8
Ground Clearance (mm)		50	50	50	50	75	75	75
Running speed (min)		0-25	0-25	0-20	0-20	0-20	0-20	0-18
Motor Power (Kw)		0.8	1.5	2.5	4	5.5	7.5	15
Running Time When Full Load		4.32	4.8	4	3.5	3.3	3	2.9
Running Distance for one Charge(Km)		6.5	7.2	4.8	4.2	4	3.6	3.2
Max Wheel Load (KN)		14.4	42.6	77.7	110.4	174	221.4	265.2
Reference Weight (t)		2.5	4	5.6	6.5	7.3	10.5	26.2
Recommended Rail Model		P15	P18	P24	P38	P43	P50	QU100

Advantages of Steel Coil Transfer Cart for Steel Plant Mounted on RailsSafety, flexibility, stable start;Long lifetime;using frequency;Simple operation;High efficiency;No restriction of the running time
Application of Steel Coil Transfer Cart for Steel Plant Mounted on RailsRun on the straight railways or on the 'S' and arc-shaped railways to carry many material;High-temperature and anti-explosion condition;It can be widely applied in metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mould Maker, Construction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on to transfer and handling equipment or material from workshop to workshop or from bay to warehouse.Producing process show

Package and delivery

about UsEstablished in 2003,Xinxiang Hundred Percent Electrical and Mechanical Co., Ltdcovers an area of 300,000 square meters.It's a professional manufacturer and service provider of concentration of scientific research, product, service, which integrates enterprises and specializes in manufacturing electric transfer trolley.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, which have been exported to more than 50 countries and regions.
Our after-serive1>. Our commitment: The load bearing safety factor of the trolley is no less than 120%.

2>.Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material

3>. 16 hours engineering service and 24 hours internet service for our customers

4>. During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

5>. Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

Our producing scope

Product Name	Model No.	Power Supply Mode	Load Capacity	Other Items	Usage
Rail Transfer Cart	KPD	Conductor Rail	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	KPX	Battery		Using frequency
Motorized Transfer Trolley	KPJ	Cable Drum		Running distance
Busbar Powered Handling Cart	KPC	Busbar		Working shop
Towed Rail Trailer	KP	Tractor	1-100t	Working shop
Steerable Towed Car	BWT	Tractor	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
Trackless Handling Machine	BWP	Battery		Working path

How to choose the suitable transfer trolley?All of our transfer carts all customized as client's requirement, for choose the most suitable transfer trolley,please kindly providing the following inforamtion:Transfer or handling what matrial/cargo?What capacity do you need?This trasnfer trolley is running on rails or ground(floor)?Your requirment for table size:length,width and height?How about the running distance?How many working hours in per day?
