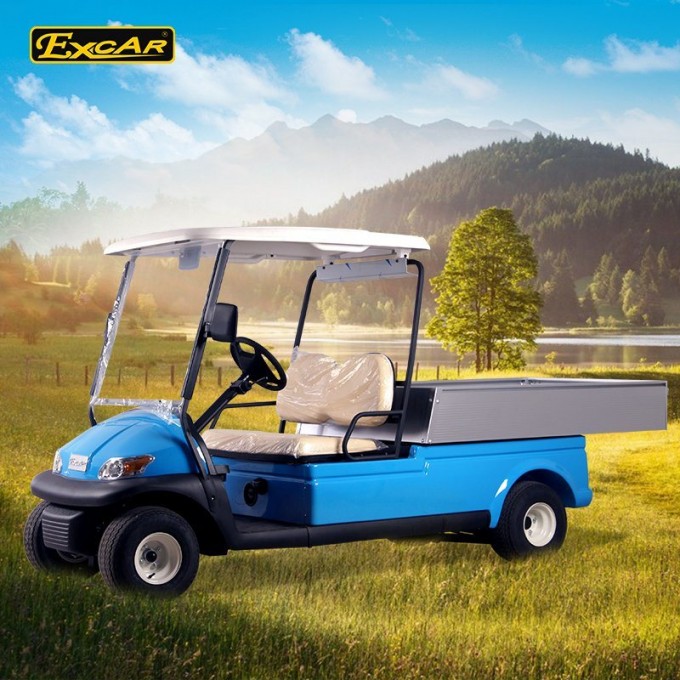

2 Seats Electric Golf Cart With Aluminum Cargo Bed
Cargo Size:1780*1150*280mm
| Item | Description |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
| Motor | ADC brand Separately excited
DC motor 48V 3.7kw | ADC brand Separately excited
AC motor 48V 3kw |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle | Italian GRAZIANO axle
with gear ration 1:12 | Italian GRAZIANO axle
with gear ration 1:16 |
| Charger | High Frequency onboard charger
48V/17A regulator | High Frequency onboard charger
48V/17A regulator |
Performance
| Item | Description |
| system | DC system | AC system |
| Passenger Capacity | 2 | 2 |
| Climbing capacity(full load) | 30% | 35% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 70-90km | 80-90km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 360kgs | 360kgs |
| Min. turning radius | 2.9m | 2.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
* 1) ba
sed on the test conditions: 20km/h speed, flat and straight co
ncrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 4000x1200x1800mm |
| Ground clearance | 114mm |
| Wheelbase | 1670mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Body and f
rame
| Item | Description |
| frame & Chassis | Aluminum alloy beam, bended |
| Body | PP engineering plastic front and rear body cover, injected |
| Roof | Glass fiber reinforced plastic |
| Windshield | Organic glass (PMMA), one-piece or two pieces |
| Roof supports | Imbedding black coating steel tube in the plastic support |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic |
| Floor mat | Anti-skidding rubber |
| Rear basket | Plastic |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Electric System
| Item | Description |
| Lights | 48V, LED headlight (includes turning light and position light),
LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) | Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock |
Steering &suspersion
| Item | Description |
| Steering System | Self-adjusting rack and pinion steering system,
with automatic compensation function |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Wheel &Tyre | Aluminum wheel &USA Carlisle 18*8.5-8 6layers |
FAQ:
1, what's your warranty time?
Usually for 1 year
2, What's the production time?
Normally for 7-15 working days
3, What's your payment term?
T/T 30% deposit and balance paid before shipment
4, Can we also purchase the parts?
Yes,if you do maintainess service,you can also buy parts from us
5, How do you provide after-sales o
nce customer bought the cart from us?
o
nce you purchase the cart from us,then i will provide you manual to learn it and tell youhow to fix it
If you need,we can arrange our technist person to fly to your area and help you solve it.
6, Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
7, Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
8, What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
Service
1.For all your inquires a
bout us or our products, we will reply you in detail within 24 hours.
2. We offer OEM services. Can print your own logo on product ,can customize the electrical golf cart body colour and other things.
3.Our director who developed the golf cart and he is the Doctor for engineering,and he has more than 10 years experience with the cart,so any carts problem you can co
ntact him.He can speak fluent English to solve any your problem.
4.We design the full waterproof accelerator,Global special LED system,and o
nly our Excar use 16:1 Italy Graziano axle,so the quality can be gurantee
