Aluminium 2 Seats Electric Golf Transport Cart

Aluminium 2 Seats Electric Golf Transport Cart

Product Description

Item	Description
System	DC system	AC system
Controller	Curtis controller 1266A-5201, 275A, imported from USA directly	Curtis controller 1234E-5221, 275A, imported from USA directly
Motor	ADC brand Separately excited DC motor 48V 3.7kw	ADC brand Separately excited AC motor 48V 3kw
Battery	Trojan battery, T875,8V*6pcs, imported from USA directly	Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle	Italian GRAZIANO axle with gear ration 1:12	Italian GRAZIANO axle with gear ration 1:16
Charger	High Frequency onboard charger 48V/17A regulator	High Frequency onboard charger 48V/17A regulator

Performance

Item	Description
system	DC system	AC system
Passenger Capacity	2	2
Climbing capacity(full load)	30%	35%
Max. forward speed	23km/h	45km/h
Endurance mileage	70-90km	80-90km
Charging time	8-10 hours	8-10 hours
Max. loading weight	360kgs	360kgs
Min. turning radius	2.9m	2.9m
Max. movement after brake at speed of 20km/h	≤4m	≤4m

Dimensions

Item	Description
Overall dimensions (L x W x H)	3400x1200x1800mm
Ground clearance	114mm
Wheelbase	2300mm
Front wheel tread (mm)	860mm
Rear wheel tread (mm)	970mm

Body and frame

Item	Description
frame & Chassis	Aluminum alloy beam, bended
Body	PP engineering plastic front and rear body cover, injected
Roof	Glass fiber reinforced plastic
Windshield	Organic glass (PMMA), one-piece or two pieces
Roof supports	Imbedding black coating steel tube in the plastic support
Cushion	Reborn sponge with artificial leather and plastic bottom cover
Backrest	Reborn sponge with artificial leather and plastic cover
Armrest	Plastic
Floor mat	Anti-skidding rubber
Rear basket	Plastic
Golf bag holder	Plastic support with nylon strap
Dashboard	Black plastic material, battery power indicator, ignition key on it
Beverage holders	4 pcs cups holders, 2 pcs for each side
Side trim	Plastic, black
Score card holder	On the steering wheel

Option Accessories

To increase the sales value of our golf cart, we also provide many optional accessories.

Item	Option description	Item	Option description
1	E-key	11	2-point seatbelt
2	Hinged windshield	12	Battery water refill system
3	Laminated windshield with wiper	13	Digital meter
4	Steel brush guard	14	EM brake
5	Front steel basket	15	Four wheel disc brake
6	Inner rear view mirror	16	Carlisle 205/50-10tyre with10inch wheel
7	Side rear view mirror	17	Ice box
8	Enclosure	18	Sand bottle
9	Sunshine cover	19	Sand rake
10	Golf bag cover	20	Ball washer

Color Options

Body colour	White	Grey	Sky blue
	Dark blue	Red	Wine red
	Green	Dark green	Yellow
	Purple	Champagne	Black
	These are the popular colours, but your customized color is available,just provide the right Panton No. color
Seat & Roof colour	Black	Beige	White

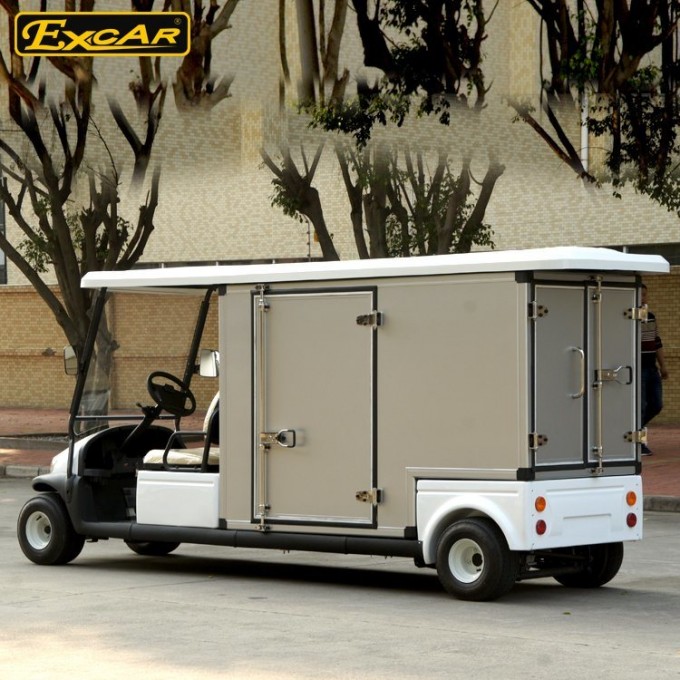

Product show








FAQ

1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.

2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.

3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.

4.What is your lead time for production?
The typical lead time of our cart is 15 days.

5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair

6.What's your payment term?
T /T 30% deposit and balance paid before shipment

Application
Our electric cart can be used in many places,Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community,Inside factory,Shopping mall,Musuem,Campus,Station, Port,Zoo,Any place where a green, quiet and cost effective vehicle is needed.

about US

Dongguan Excellence Golf &Sightseeing Car Co., Ltd. (Excar) is ahigh technological company with our own research and development department. Our factory is located in the Liuwuxiang Industry Zone, at the east of Songshang Lake Road and the north of Guanshen Highway. It enjoys superior location and convenient transportation.
Excar focuses on researching, developing and manufacturing electric cars in the field of four-wheel electric cars. For golf cars and sightseeing cars, we have great confidence that we could make it better and better to meet the needs of our clients.
Refer to the specification standards of imported electric cars, we designed and created anew series of golf cars named Discovery for Chinese golf course especially.
Excar is devoted to before and after sale services and setting up service centers to support our customers. One of our duties is to supply exchangeable parts and technical support for golf cars of E-Z-GO and club cars. We are always ready to serve every golf course sincerely.
