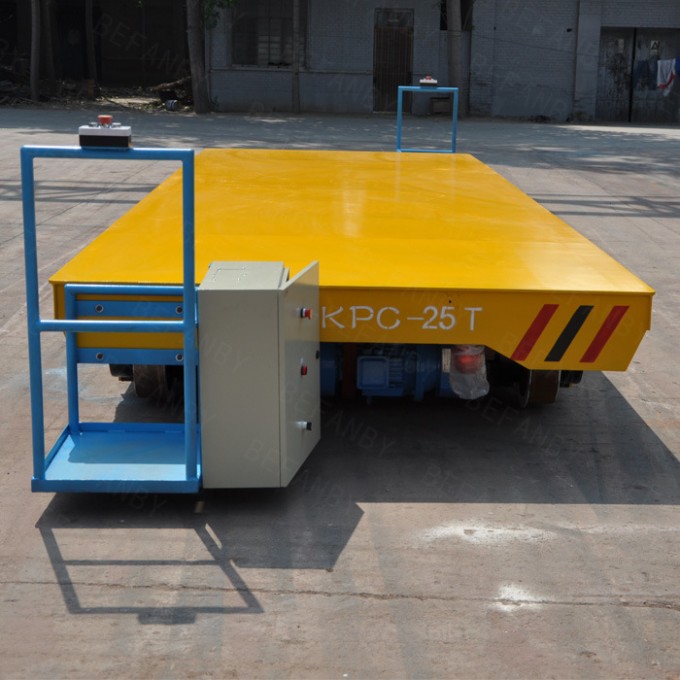

25t Electric Railway Transfer Cart with Operation Platform

25t Electric Transfer Cart with Shaft Mounted Gear Reducer


Description:

The cart gets power from the slider of the safe sliding line which is moved by the cart's running. The sliding line is
limited by the installation position. It can be installed between the two rails or in the channel outside the track.

For your safety and convenience, you can add boards on the channel. Through the automatic device to conduct the
power in the channel directly to the rail cart. The operation system is low voltage 36V power. The hydraulic lifting
device can be installed on the flat carts.




Working principle:

KPC series' rail transfer cart is powered by the sliding line. It conducts AC 380V sliding wire directly into the AC electrical
control system of the transfer cart to let it start, stop, go forward and backward and so on.


Advantages:

1. Safety sliding wire

2. Steel box structure

3. No limited distance

4. Stopping when people appear beyond 2-3m


Using scope:

This series' flat carts are suitable to be used in the bad environment, for example, high-temperature condition. Because of
its simple structure, low cost and not so strict requirement on the construction of the rails, it is the first choice for the
assembly lines of the workshops.


Techinical Parameters

Model		KPC-25t
Rated Load(t)		25
Table Size(mm)	Length( L)	4500
	Width( W)	2200
	Heigth( H)	600
Wheel base(mm)		3200
Rail Inner Gauge(mm)		1435
Wheel Diameter(mm)		400
Wheel Quantity		4
Ground Clearance(mm)		50
Running Speed(mm)		20
Motor Power(Kw)		3
Max Wheel Load(KN)		94.5
Reference Weight(t)		6
Recommended Rail Model		P38

Attentions:

This series transfer cart is suitable for the conditions of short running distance(≤ 50m), high using frequency, low cart's
height and assembly line works.


Why choose us
·BEFANBY's electric flat trolley are all by no less than 120% Load Bearing Safety test before shipping.
·BEFANBY's electric flat trolley are all trustworthy and legitimate names in the industry.
·BEFANBY's electric flat trolley are design and built meeting JB/T6127-92 and Crane Girder Standards ensure durability
and long lifetime.
·BEFANBY's electric flat trolley's manufacturing capacity range from 1 ton to 300 tons.
·All products are Crane Standard Slab Steel Beam Box Structure,safety, little table deformation and large load capacity.
·Working normally before shipping and easy operation,No need professional training operator.
·Heady duty packaging to provide protection during shipping.
·More than 1000 products and 587 custom design molds accumulation,committed to meet your one-stop-shop of
factory material transfer wagon.
·We offer: rail construction project design and construction CAD drawing, whole series of standard CAD rail wagon
drawing and operation manual.
Product supply scope

Product Name	Model No.	Power Supply Mode	Load Capacity	Other Items	Usage
Rail Transfer Cart	KPD	Conductor Rail	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	KPX	Battery		Using frequency
Motorized Transfer Trolley	KPJ	Cable Drum		Running distance
Busbar Powered Handling Cart	KPC	Busbar		Working shop
Towed Rail Trailer	KP	Tractor	1-100t	Working shop
Steerable Towed Car	BWT	Tractor	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
Trackless Handling Machine	BWP	Battery		Working path

Customized
·load capacity, table size, and rail wagon can be customized
·opinions:
1>remote radio control(import or made in china) Automatic stop when detecting obstacle or person, limit switches(to
limit travel)
2>Battery type (Free of maintenance Battery, lithium battery, explosion-proof battery, and anti-high temperature battery)
3>motor(DC motor with brush and DC motor brushless)
4> Electrical parts (imported or made in china)
How to choose the suitable transfer trolley?
All of our electric flat trolley all customized as client's requirement, for choose the most suitable transfer trolley,please
kindly providing the following information:Transfer or handling what material/cargo?What capacity do you need?This transfer trolley is running on rails or ground(floor)?Your requirement for table size:length,width and height?How about the running distance?How many working hours in per day?
