Handling Platform Trolly Special Transfer Cart on-Rail for Heavy Industry

Handling Platform Trolly Special Transfer Cart On-Rail for Heavy Industry
1.Introduction of On-RailSpecial Transfer Cart
The on-rail special transfer cart along a fixed path loads up to 300 tons. Custom deck frames can be designed for specific assemblies to carry an entire shift of production and even serve as a stable movable machine base.These on-rail special transfer cartsare mounted on steel rail for shuttling along a fixed path. They can be DC battery powered or AC powered. Typically used for moving materials such as steel tubes, tanks of liquids, steel coils, steel beams, machine partsfrom one location to another. Standard sizes from 4 x 4 to 6 x 8. Larger cart capacities and sizes are available for specific applications.
2.Details of On-RailSpecial Transfer Cart
Typically the on-rail special transfer carts are used for moving materials such as steel or tanks of liquids from one location to another orcarry an entire shift of production and even serve as a stable movable machine base.They can also be part of automated crane systems, serving to shuttle goods, material, or product to and from manufacturing processes or storage locations.According to customer special requirements, we would design the on-rail special transfer cart with special device:
Safety Device: Alarm light, bumper block, emergency stop button, radar detector, warning strip.
Table Device: V shape support, Hydraulic lifting system, dumping device, weighting system, guardrails.
Control Mode: Hand held pendant, wireless remote control, PLC control



3.Applicable sites of On-RailSpecial Transfer Cart

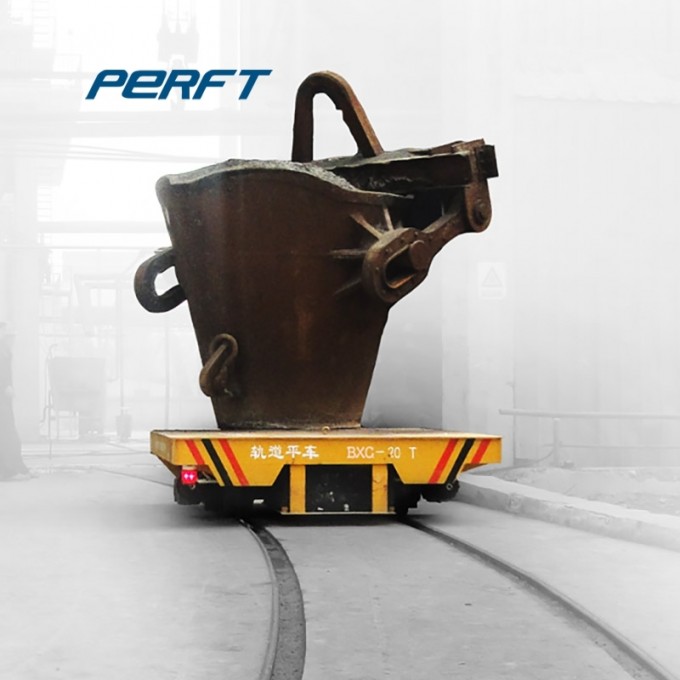

Theon-rail special transfer cart is mainly applied in assembly line, metallurgy industry , warehouse transport, ship industry , workpiece transport in workshop, lathe transport, steel factory, construction, petroleum industry, energy, chemical industry, railway etc.



4. Parameter of On-RailSpecial Transfer Cart

Model		BDGZ-2t	BDGZ-16t	BDGZ-30t	BDGZ-50t
Rated Load(t)		2	16	30	50
Table Size (mm)	Length(L)	2000	4000	4500	5500
	Width(W)	1500	2000	2200	2500
	Height(H)	450	500	600	650
Wheel base(mm)		1200	2800	3200	4200
Rail Inner Gauge(mm)		1200	1435	1435	1435
Wheel Diameter(mm)		270	350	400	500
Wheel Quantity		4	4	4	4
Ground Clearance(mm)		50	50	50	50
Running Speed(min)		0-25	0-20	0-20	0-20
Motor Power(kw)		1	2	3.5	5
Transformer Power(KVA)		3	6.8	10	20
Transformer Quantity		1	1	1	1
Running Distance(m)		70	70	70	50
Max Wheel Load(KN)		14.4	64.5	174	343.8
Reference Weight(t)		2.8	5.5	8	14.6
Recommended Rail Model		P15	P24	P43	QU100

5.Advantages of On-RailSpecial Transfer Cart
ΔIncreases production by saving material delivered time
ΔDecreases the use of cranes and tractor thereby greatly improving plant safety
ΔAvoids damage to material or product

6.Company Strength
Since 2003, we have provided standard and custom material handling systems and equipment on time, on budget, while exceeding the expectations of our domestic and international customers. In short, we make difficult jobs seem easy.
Our sales staff is knowledgeable and available to assist you in determining the optimal solution to your material handling needs.
We Provide Best Products and Best Available Price
Contact us today at +86-373-3020116 and see how we can find a solution for your handling needs.


7. Q&A
Will A Railway Truck Be A Good Solution?
Since there are many material handling solutions on the market which one is the right choice? For starters, transfer trucks are movable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Are The Advantages of Using a Transfer Truck?
Transfer railway truck is an excellent affordable choice for the ability to handle heavy loads. The railway trucks are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the truck deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?Coils (V-Groove deck)
Tanks (size/stability for uniformly distributed loads)
Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
Sub-Assembly shuttle from one line to another line
Maintenance cart for motors and pumps
Equipment support (stand-off deck) for navigating loads to locations with a plant facility
Material shuttle for steel tubing (flat decking with guard rails)
Elevating platform for assembly process (integrated screw-jack table)
Sand casting (flat decking)
