Large Table Motorized Material Transfer Trolley Used in Crane Industry

Large Table Motorized Material Transfer Trolley Used In Crane Industry
1. Product Presentation---Material Transfer Trolley

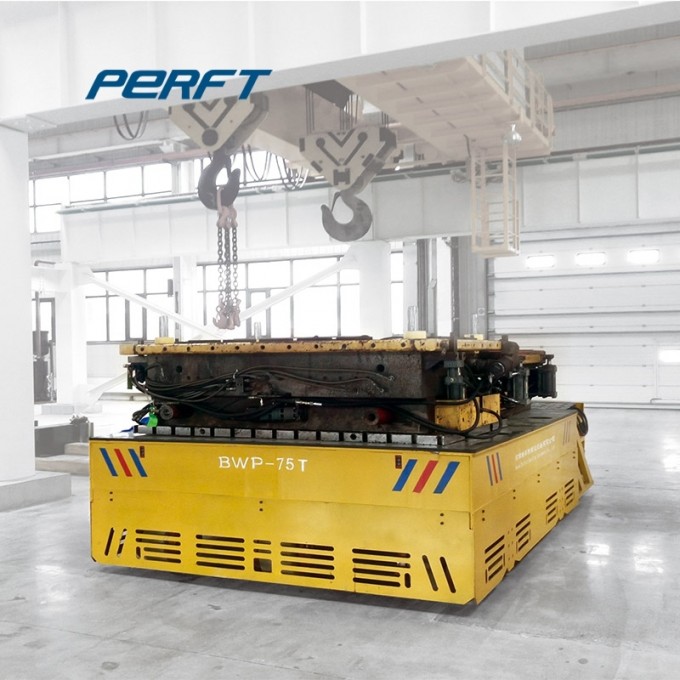

The motorized transfer trolley has been created and built for their utmost extent working flexibility. Due to they have no pdefined pathway and can steer in any direction and can run on any kind of floor thelarge table motorized material transfer trolleysare very beneficial to bring the heavy duty where overhead cranes cannot reach. And also the trolleys symbolize the best method for all those appliances with delicate handling issues in limited space.
Operating easiness make the powered trolleys immaculacy to meet the most important demands: where places are very limited and pathways are extremely constrained.The conception of each transfer trolley is guided with a pliminary study about particular needs of user and consequent use occasions.

2. Product Purpose---Material Transfer TrolleyThe transfer trolleys of Henan Perfect Handling Equipment Co., Ltd make the movement charges at ground level for a wide range of industries and applications.The trolleys are essential machines to cranes lifting heavy loading at ground and the superior solution for material transferring.

3. CustomizedProduct---Material Transfer TrolleyWe design & manufacture of high quality motorized material transfer trolleys according to per client' requirements. It's optional in various size and shape. We used peminent quality of steel, iron for all the transfer trolleys manufacturing.

4.Technical Parameter---Material Transfer Trolley

Technical Parameters for Electric Transfer Carts
1	rated load(t)	5	10	15	20	30	40	50
2	impacted rated load(t)	7.5	15	22.5	30	45	60	75
3	structure of frame	steel plates welded,beam structure
4	thickness of the steel plate(mm)	8	10	12	14	14	16	16
5	cart weight(t)	4.3	5.3	6.6	7.9	8.8	10	10.5
6	max. wheel load(t)	2.8	4.6	4.3	5.6	7.7	10	12
7	ground requirement	cement floor					steel plate ground
8	table size(mm)	3000x2000	3600x2000	4000x2200	4500x2200	5000x2200	5500x2300	6000x2300
9	height of the whole cart(mm)	450	530	600	600	650	700	700
10	ground clearance(mm)	50
11	(mm)wheels base	1500		1700			1800
12	(mm)axles distance	2500	3100	3400	3900	4300	4800	5200
13	turning radius(mm)	2501	3101	3401	3901	4301	4801	5201
14	turning type	turning while driving with no stop
15	control method for turning	control button
16	turning structure	mechanical
17	motor power(Kw)	3.5	5	6	7	10	12	15
18	(mm)wheel diameter	Ф300(4)	Ф350(4)		Ф400(4)	Ф400(6)	Ф500(6)
19	wheel material	ZG55+hydropur ture
20	running speed(m/min)	0-15					0-12
21	brake principle	electric magnetic brake
22	ground balance	mechanical automatic adjustment
23	operation method	with wire or no wire
24	battery model	D-250 24	D-330 24	D-400 24	D-440 24	D-250 36	D-330 36	D-440 36
25	battery maintainance	free of maintainance
26	charger's installation	installed on cart				split-type
27	charger function	automatic charging
28	cart color	yellow and warning sign
29	radar control	3-0.3m,automatic stop for obstacles
30	warning equipment	sound and light
31	other functions	turning light,night light and power display

5.Other Products
based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-300 tons, our main products including BDG conductor rail equipment, BJT cable drum type, BHX safety sliding line type, BXC battery type, BTL towed cable type, BP non-power type, BQY train towed type, BWP trackless type and special type, such as turning cart, trackless cart, ladle car, hydraulic lifting car, ferry car, painting room car, blasting booth car, etc.

6. Custormer Visit
We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can ppare them to be used in rails, with autonomous batteries or for special applications.

7. Packing and Shipping
For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
