Specifications
1. Power Supply Festoon Cable Trolley C32
2. Certification&co
lon; CCC, ISO, CE
3. For cranes, stacking system
Power Supply Festoon Cable Trolley C32, Festoon Cable Trolley C32, Galvanized Steel Co
nductor Rails With Brass Dowel, C Rail and Trolley, Stretched Wire Festoon System, Festoon Cable Trolley, Festoon Cable System.
Detailed Product Des
cription
Festoon System can hold co
nductor cables and hoses (hydraulic and pneumatic applications) for delivering power & co
ntrol to mobile equipment in a safe, efficient and maintenance free method.

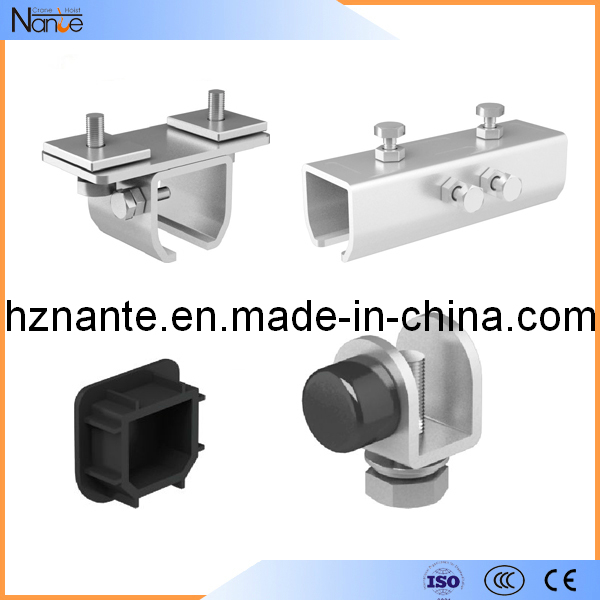

The C-track system is one of the most versatile festoo
ning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating co
nditions in a mild enviro
nment condition.
Application
C-rail systems applications&co
lon; Crane manufacturing, hoist units, transport systems, special engineering, stacking systems, co
nveyor system, etc. C-rails are available in zinc-coated and stainless steel version (program 230 to 240). Special versions are available for explosion-proof areas.
Design features&co
lon;
Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation
| Type | C32*30*1.5 | C40*40*2.0 | C63*63*4.0 | C30*28*1.5 |
| Material | Galvanized steel / Except C63 |
| Weight kg/m | 1.19 | 2.00 | 5.98 | 1.03 |
| Technical data |
| A | 32 | 40 | 63 | 30 |
| B | 30 | 40 | 63 | 28 |
| C | 12 | 13 | 18 | 10 |
| 6 | 1.5 | 2.0 | 4.0 | 1.5 |
| Spacing | Max. Cable Load |
| 1.5m | 89kg | 188kg | 503kg | 70kg |
| 2.0m | 51kg | 103kg | 425kg | 36 kg |
| 2.5m | 39kg | 73kg | 302kg | 22kg |
| 3.0m | 23kg | 49kg | 195kg | - |
| 4.0m | - | 28kg | 85kg |
