Steel Factory 20t Scrap Material Transfer Trolley Powered by Battery

Steel Factory 20t Scrap Material Transfer Trolley Powered by Battery

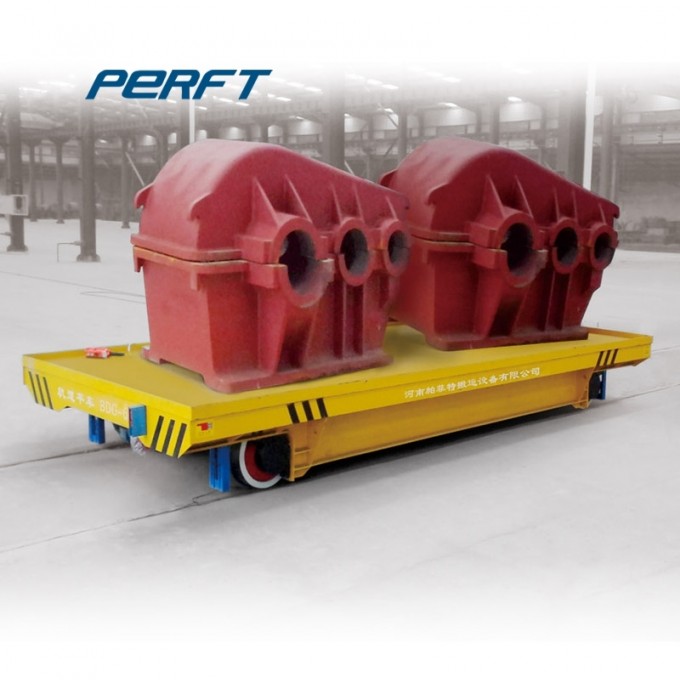

1. Introduction of ScrapTransfer Trolley
With the functions of steady traveling, poleless speed regulation,PERFECT transfer trolley is commonly applied to transfer steel ladle, scrap,aluminum ladle, lead ladle, steel slag etc. We use this kind of scrap transfer trolley to moving and transporting hot metal ladles or scrap bucket to the ingot casting machines or within the plant itself.
Generally the outer surface temperature of thescrap bucketis 200-300 degree, due to the high temperature the scrap transfer trolleyshould be designed with heat exposure proof device, especially to the battery, motor, reducer and electric appliance. It can avoid the transfer trolley from damaging and shortening using time. In order to avoid the scrap bucket transfer trolley broken during working, there equipped two sets driving system, if the main driving system is broken, the spare driving system can be start at the same time.
2. Applicationof ScrapTransfer TrolleyOur scrap transfer trolley is widely used to transfer the hot ladle in the steel millandhot metals such as steel or aluminum in the foundry plant.
3. Details ofScrapTransfer Trolley

4. Parameter of ScrapTransfer Trolley

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	900	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Running Speed(m/min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running Time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for One Charge(km)		6.5	4.8	4	3.8	3.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

5. Company and Customers' visitHenan Perfect Handling Equipment Co., Ltd. is a professional designerof material handling equpment to meet the specific requirements of each client.Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.Our special solution to the design of each product includes a detailed review of the client requirements, which is used to develop the Functional Specification of the product.Working closely with you, we will incorporate our years of design experience into the final design of the product to assure complete customer satisfaction.

6. Packaging and Transporting

7. Q & Aof ScrapTransfer Trolley
How are the transfer trolley powered?
Powered AC carts have power cable connected directly to an electrical panel, typically for carts that travel along a fixed path. Cable reels can be installed for cable management.
Powered DC carts have on-board batteries that have an average running time of 16 hours. DC battery charging units can be installed on-board for convenience. Extended battery life can be accomplished by having four batteries rather than two.
How fast can the transfer trolley travel?
Typically, transfer carts come with drive motor speed of 50 fpm (with brake). Optional consideration can be given to ordering VFD (electric car only) for soft start/stop movement. Faster travel speeds can be ordered.
How to protect the transfer trolley as the temperature of scrap bucket or ladle is so high?
The materials, driving system and electrical control of the car would be specially designed. The heat insulating material is used in the car to resist the high temperature.
