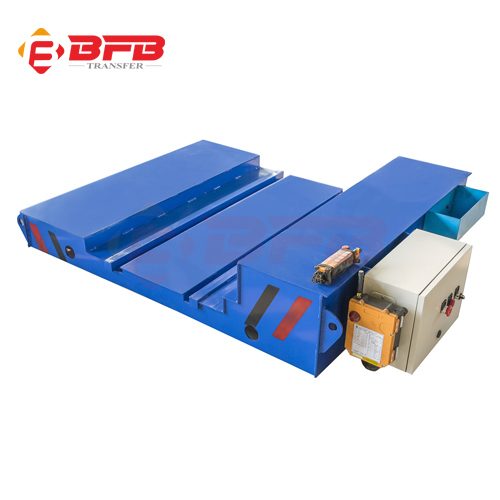

Busbar Powered Transfer Trolley on Rail for Heavy Load Transferring

Brief introduction---Busbar Powered Transfer Trolley on RailThis kind ofBusbar Powered Transfer Trolley on Rail for Heavy Load Transferring is powered by safety sliding wire
which is can running on the straight,"s" or arc-shaped railways rails, to warehouse to transfer material or equipment
between workshops with the crane accessoris. This heavy duty rail road vehicle is a very pupular product in South
America market. Our BEFANBY company is the professional manufacturer of Busbar Powered Transfer Trolley on Rail
for Heavy Load Transferring with more than 15 years experience in designing and producing.

Working principle----Busbar Powered Transfer Trolleyfor Heavy Load TransferringKPC series Busbar Powered Transfer Trolley on Rail for Heavy Load Transferring is that the safe sliding wire is set in
a channel ditched beside the rail, and also can be set on the ground along the wall.It contacts AC 380V sliding wire
directly into the AC electrical control system of the transfer cart to let in start,stop, go forward and backward and
so on. The cart gets power from the slider of the safe sliding lione whch is moved by the cart's running.
Technical Parameters for Busbar Powered Transfer Trolley

Model		KPC-2t	KPC-20t	KPC-50t	KPC-100t	KPC-150t
Rated Load(t)		2	20	50	100	150
TableSize(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	850	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(mm)		25	20	20	20	18
Motor Power(kw)		0.8	2.5	5.5	11	15
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.3	5.5	7.6	13.9	26
Recommended Rail Model		P15	P24	P43	QU100	QU100

Application of Busbar Powered Transfer Trolley on Rail for Heavy Load TransferringBusbar Powered Transfer Trolley on Rail for Heavy Load Transferring is suitable for various industries,steel mill,
transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc, Paper roll plant,
transfer paper coil,Painting shops, transfer workpiece into the painting room,Sand blasting room
Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc.

Characters of Busbar Powered Transfer Trolley on Rail for Heavy Load Transferring

Anti-explosion

Anti-high temperature

Apply to various occasions

It has no strict requirement for the construction of the railway

No limit of running and working hours

Safe and convenient operation for there is no wire outside the car

Adjustable speedabout UsXinxiang Hundred Percent Electrical and Mechanical Co., Ltdis a collection of research, design, manufacture,
installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing
company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO
certificate and other 8 national patent, our products have been exported to more than 50 countries and regions,
such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
Our Certificate show

Our production application show


Product supply scope

Product Name	Model No.	Power Supply Mode	Load Capacity	Other Items	Usage
Rail Transfer Cart	KPD	Conductor Rail	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	KPX	Battery		Using frequency
Motorized Transfer Trolley	KPJ	Cable Drum		Running distance
Busbar Powered Handling Cart	KPC	Busbar		Working shop
Towed Rail Trailer	KP	Tractor	1-100t	Working shop
Steerable Towed Car	BWT	Tractor	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
Trackless Handling Machine	BWP	Battery		Working path

Customizedload capacity, table size, and rail gauge can be customizedopinions:>1>remote radio control(import or made in china) Automatic stop when detecting obstacle or person,
limit switches(to limite travel) 2>Battery type (Free of maintenance Battery, lithium battery, explosion-proof battery,
and anti-high temperature battery)3>motor(DC motor with brush and DC motor brushless
How to choose the suitable transfer trolley?All of our transfer trolleys all customized as client's requirement, for choose the most suitable transfer trolley,
please kindly providing the following inforamtion:Transfer or handling what matrial/cargo?What capacity do you need?This trasnfer trolley is running on rails or ground(floor)?Your requirment for table size:length,width and height?How about the running distance?How many working hours in per day?
